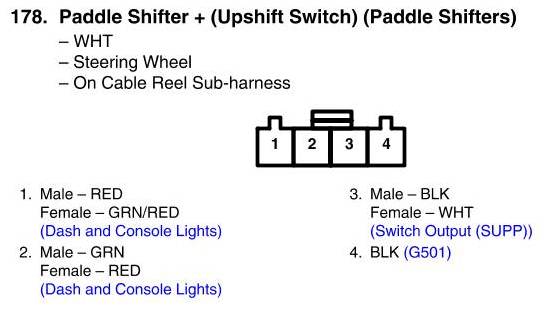

View 178 - Paddle Shifter + (Upshift Switch) Connector View (Paddle Shifters)
View 178 - Paddle Shifter + (Upshift Switch) Connector View (Paddle Shifters)
