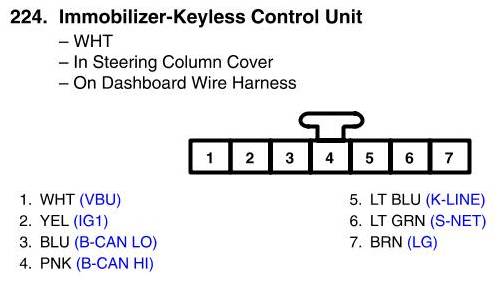

View 224 - Immobilizer-Keyless Control Unit Connector View
View 224 - Immobilizer-Keyless Control Unit Connector View
