Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
2011
>>
Accord L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By View Number
>>

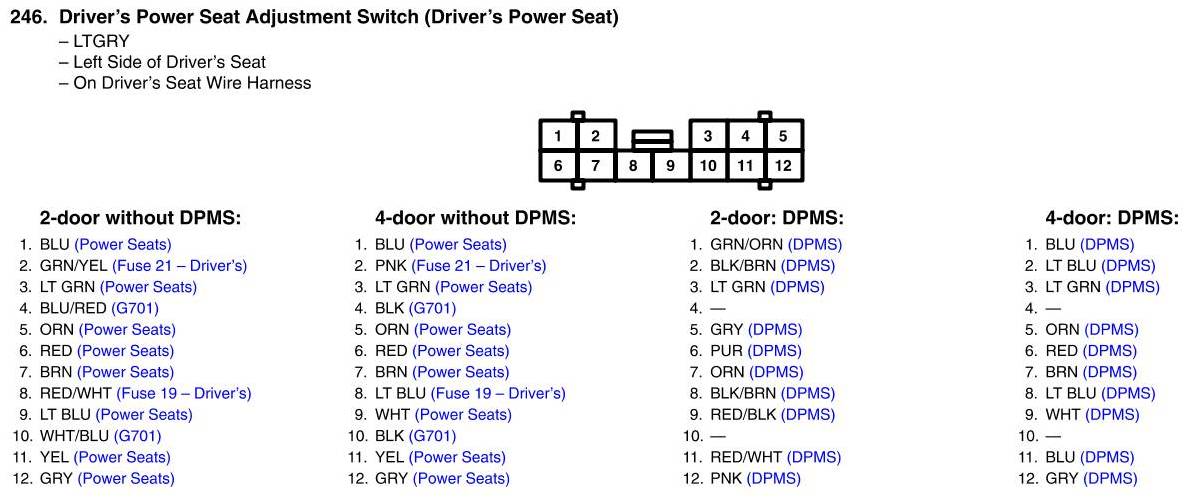

View 246 - Driver's Power Seat Adjustment Switch Connector View (Driver's Power Seat)
View 246 - Driver's Power Seat Adjustment Switch Connector View (Driver's Power Seat)
