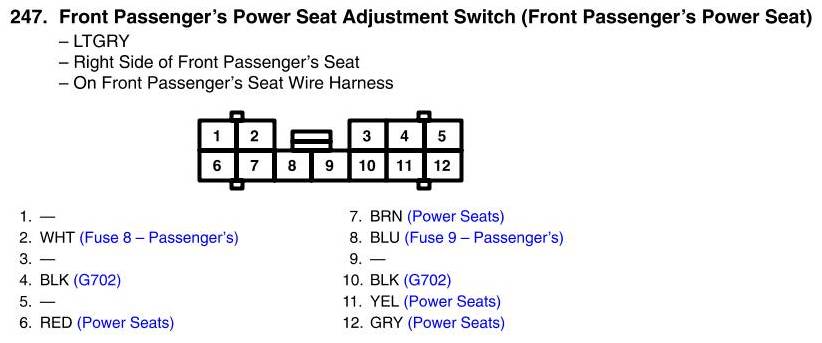

View 247 - Front Passenger's Power Seat Adjustment Switch Connector View (Front Passenger's Power Seat)
View 247 - Front Passenger's Power Seat Adjustment Switch Connector View (Front Passenger's Power Seat)
