Home >> Honda >> 2011 >> Accord L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 256 - C471 Connector View (USB Adapter)

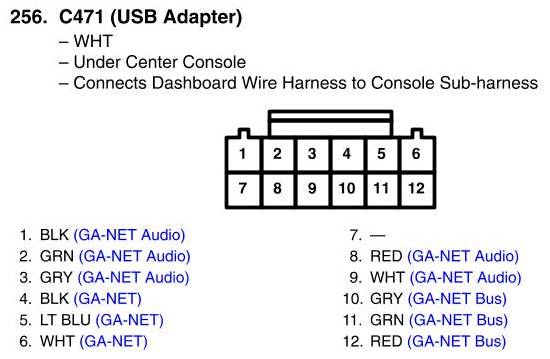

View 256 - C471 Connector View (USB Adapter)
