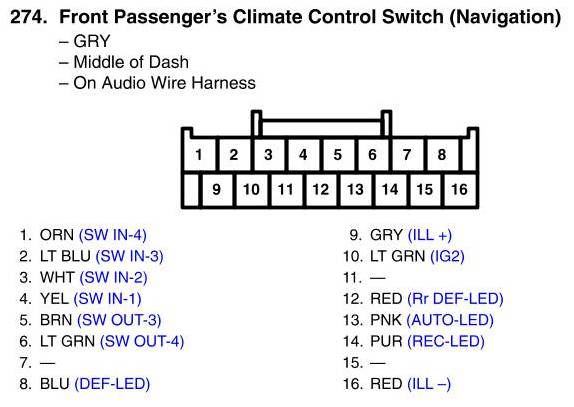

View 274 - Front Passenger's Climate Control Switch Connector View (Navigation)
View 274 - Front Passenger's Climate Control Switch Connector View (Navigation)
