View 311 - Front Passenger's Seat Heater Relay (High) and Seat Heater Relay (Low) Connector View (Seat Heaters)
View 311 - Front Passenger's Seat Heater Relay (High) and Seat Heater Relay (Low) Connector View (Seat Heaters)

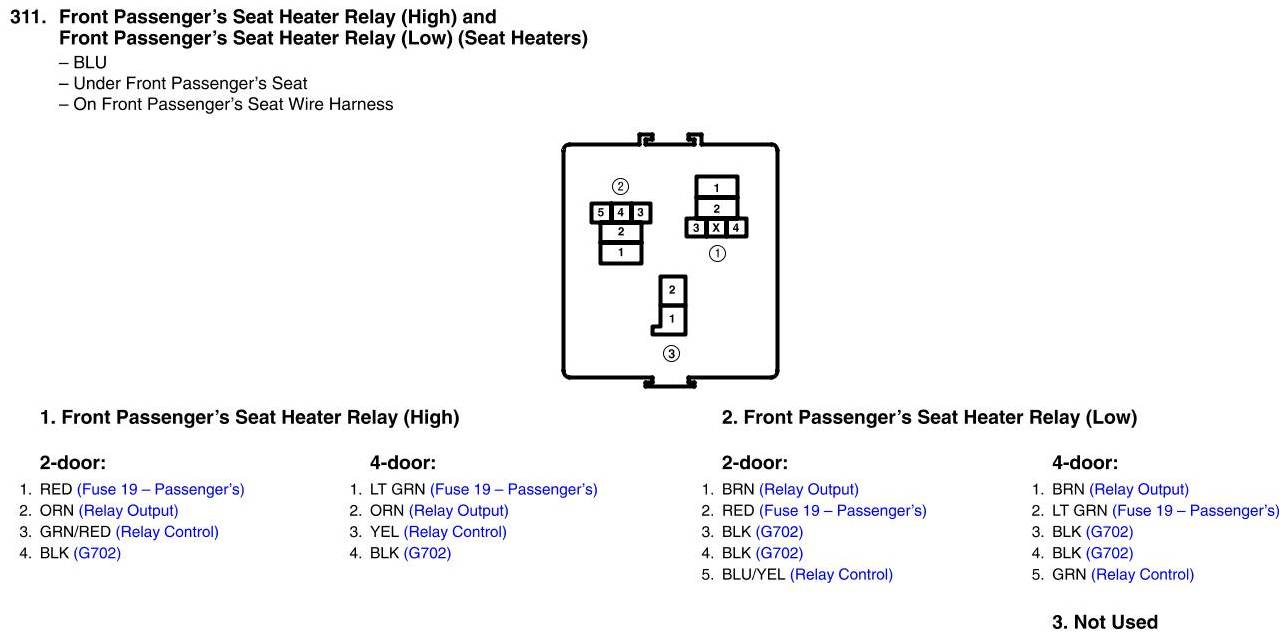

View 311 - Front Passenger's Seat Heater Relay (High) And Front Passenger's Seat Heater Relay (Low) Connector View (Seat Heaters)
