Home >> Honda >> 2011 >> Accord L4-2.4L >> Repair and Diagnosis >> Diagrams >> Harness >> Dashboard Wire Harness (View of Driver's Side) Connector and Harness Locations

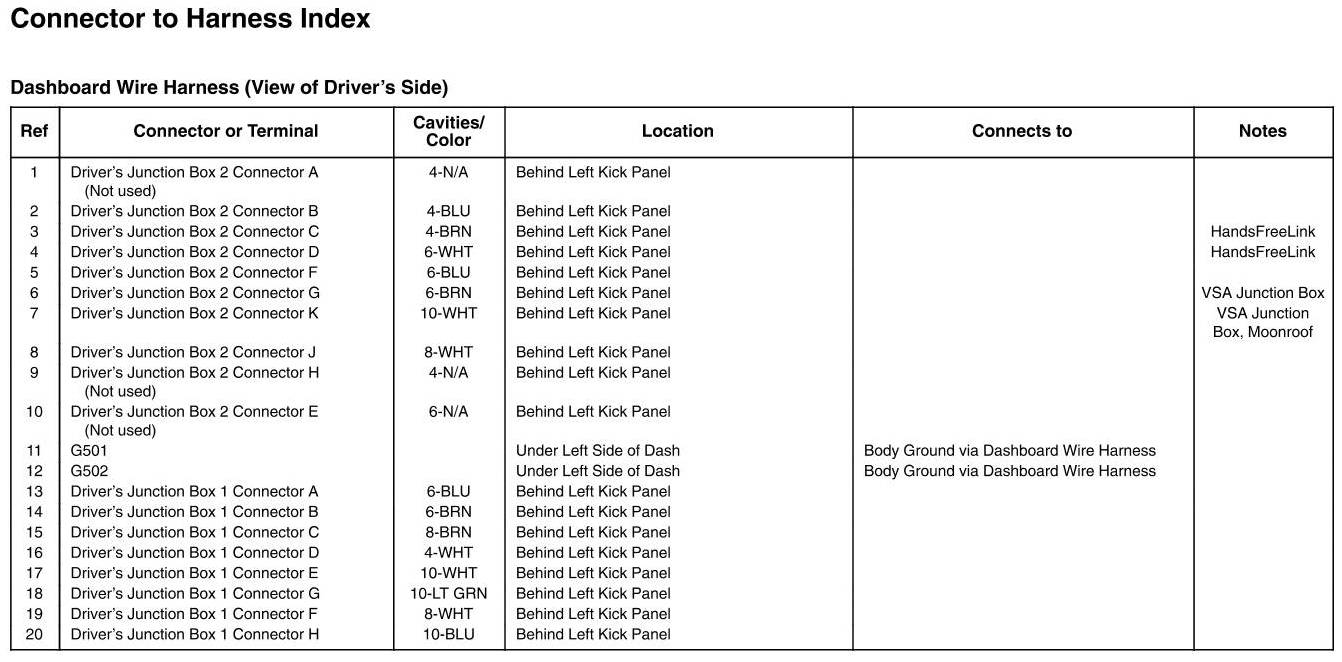

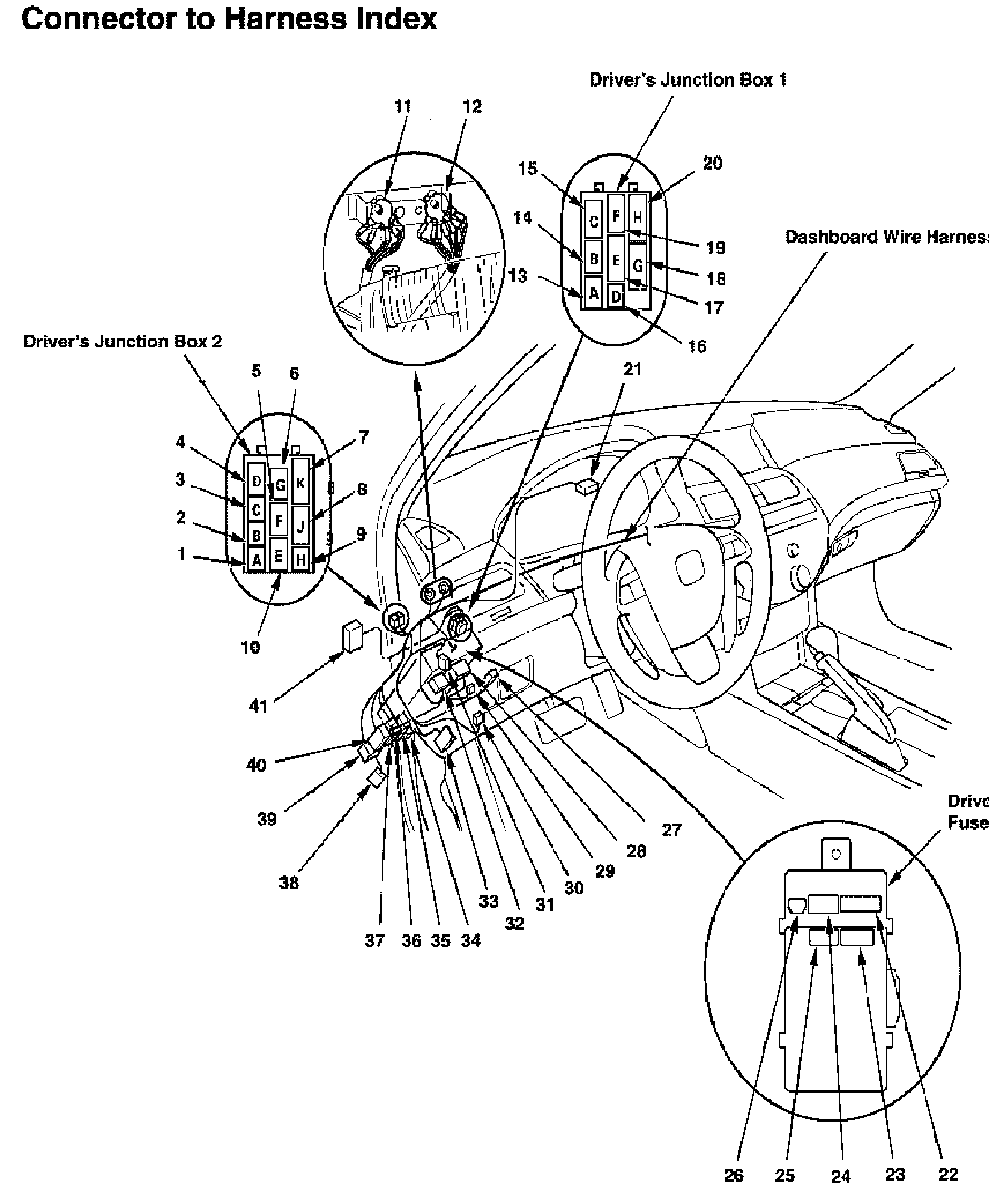

Dashboard Wire Harness (View of Driver's Side) Connector and Harness Locations





}~I:
