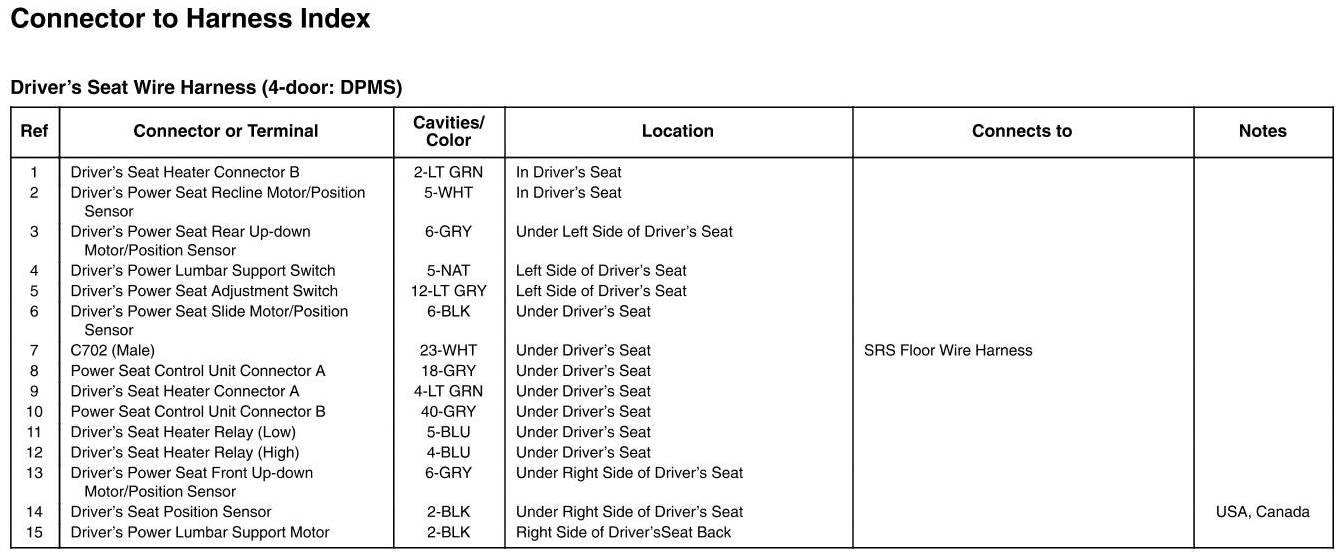

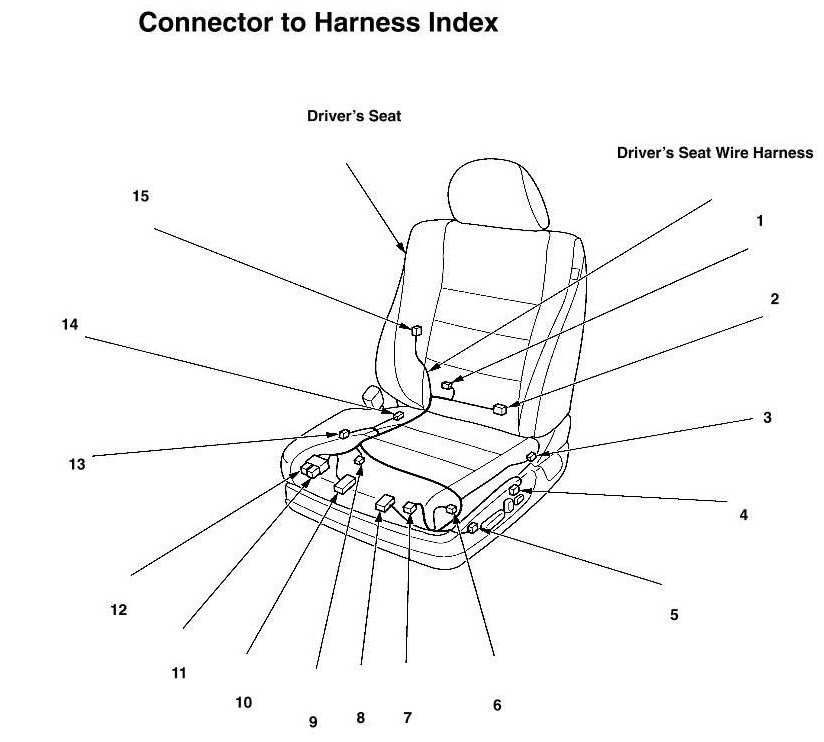

Driver's Seat Wire Harness Connector and Harness Locations (4-Door: DPMS)
Driver's Seat Wire Harness Connector and Harness Locations (4-Door: DPMS)
