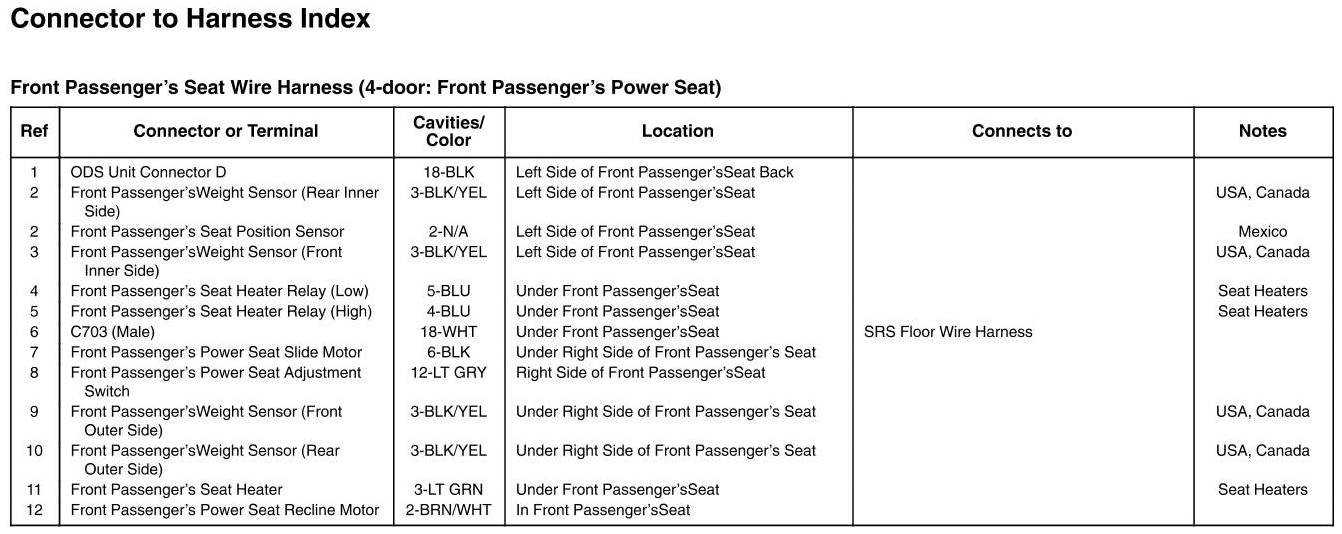

Front Passenger's Seat Wire Harness Connector and Harness Locations (4-Door: Front Passenger's Power Seat)
Front Passenger's Seat Wire Harness Connector and Harness Locations (4-Door: Front Passenger's Power Seat)
