Left Engine Compartment Wire Harness (Engine Compartment Branch)
Left Engine Compartment Wire Harness (Engine Compartment Branch)

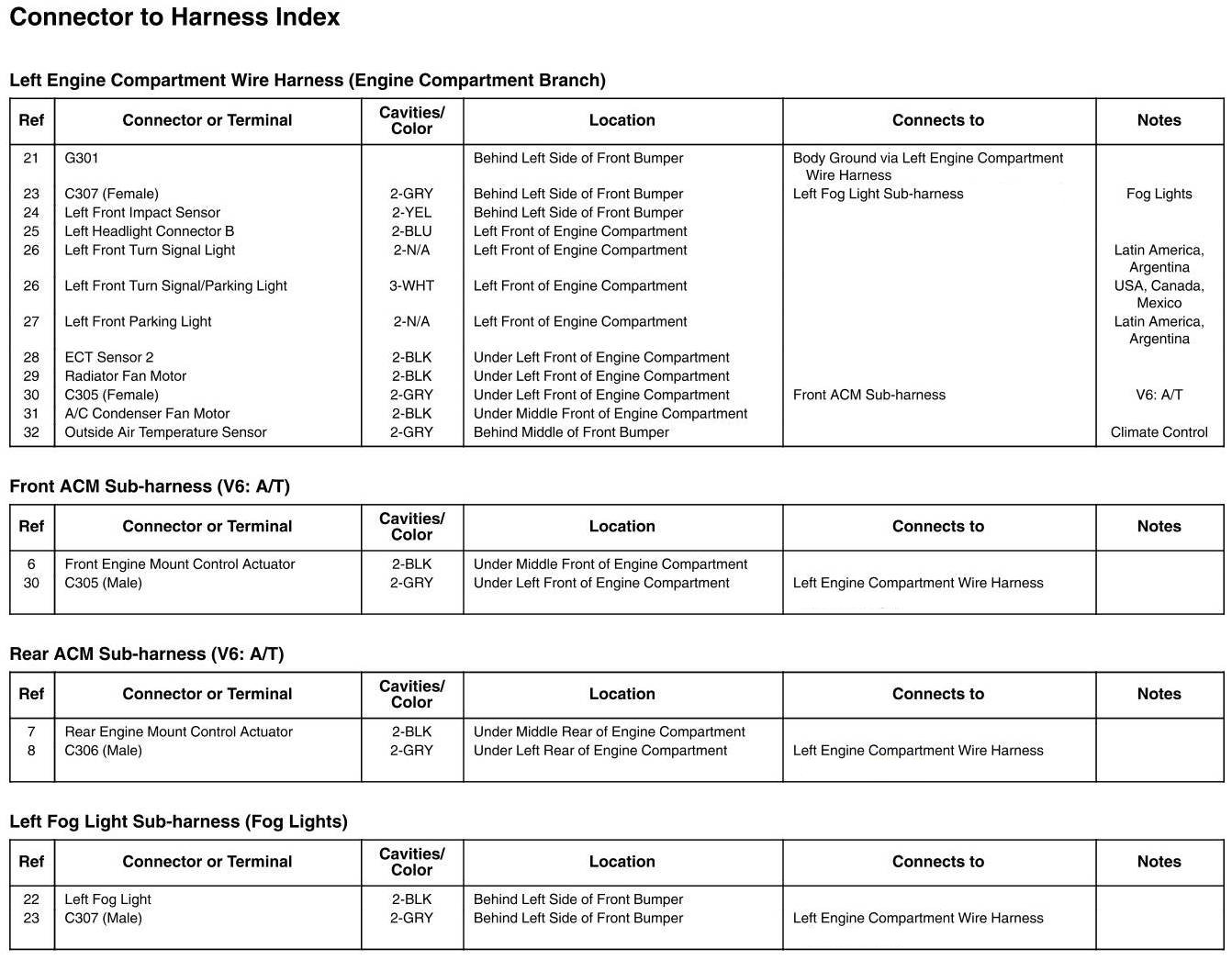

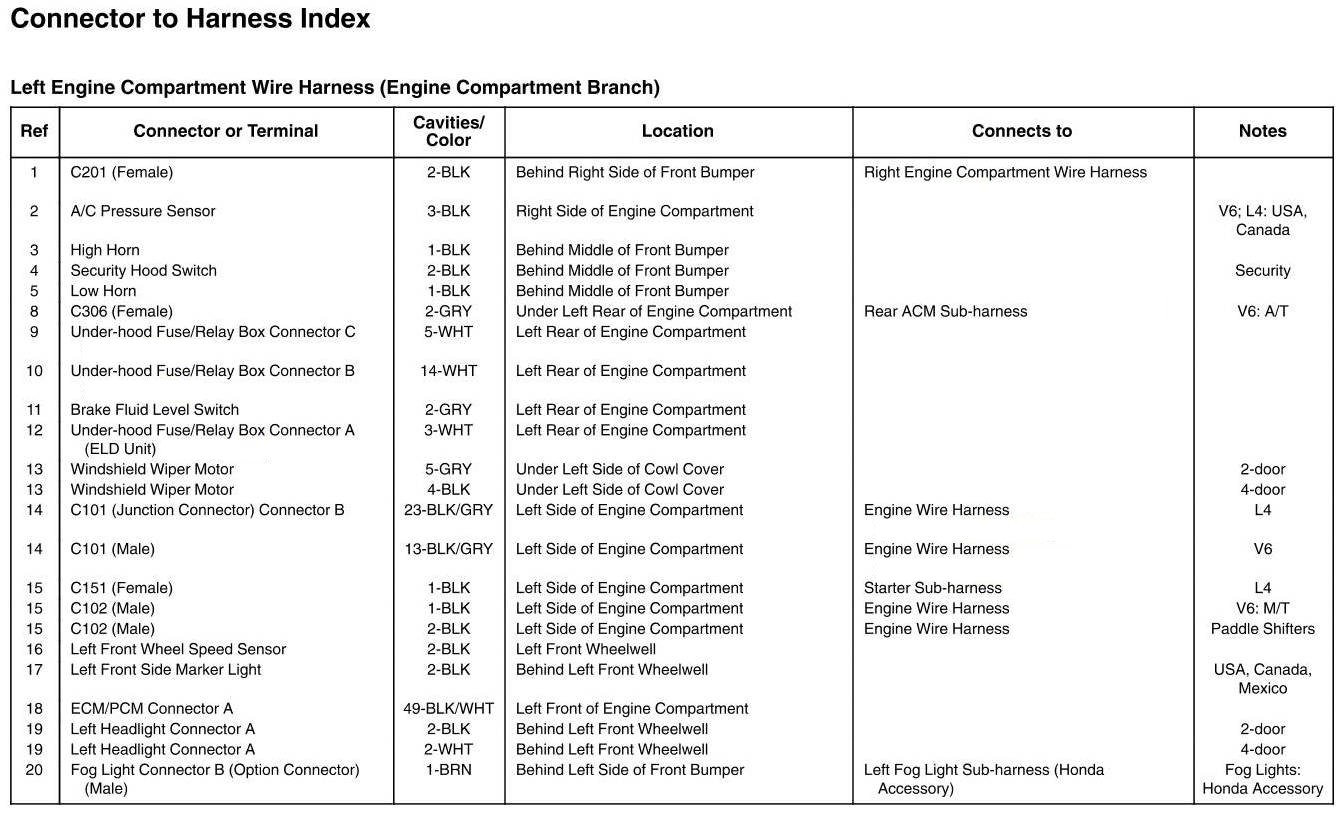

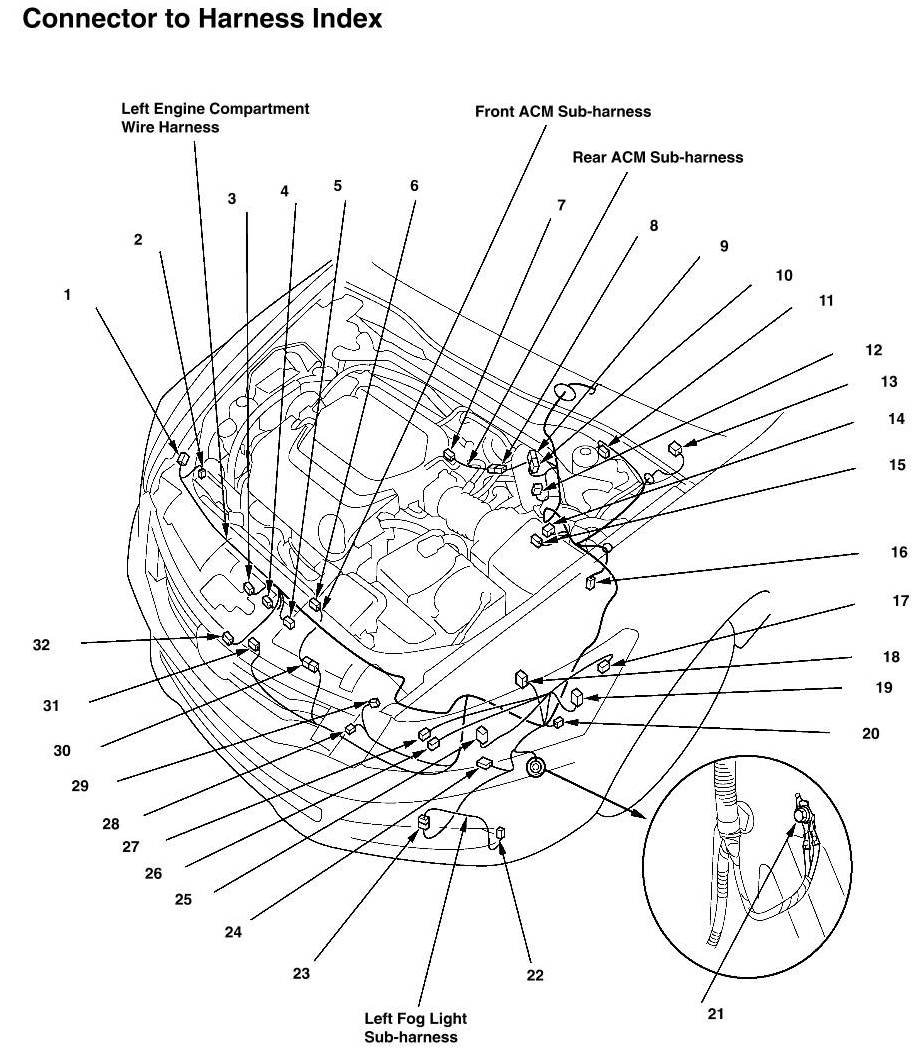

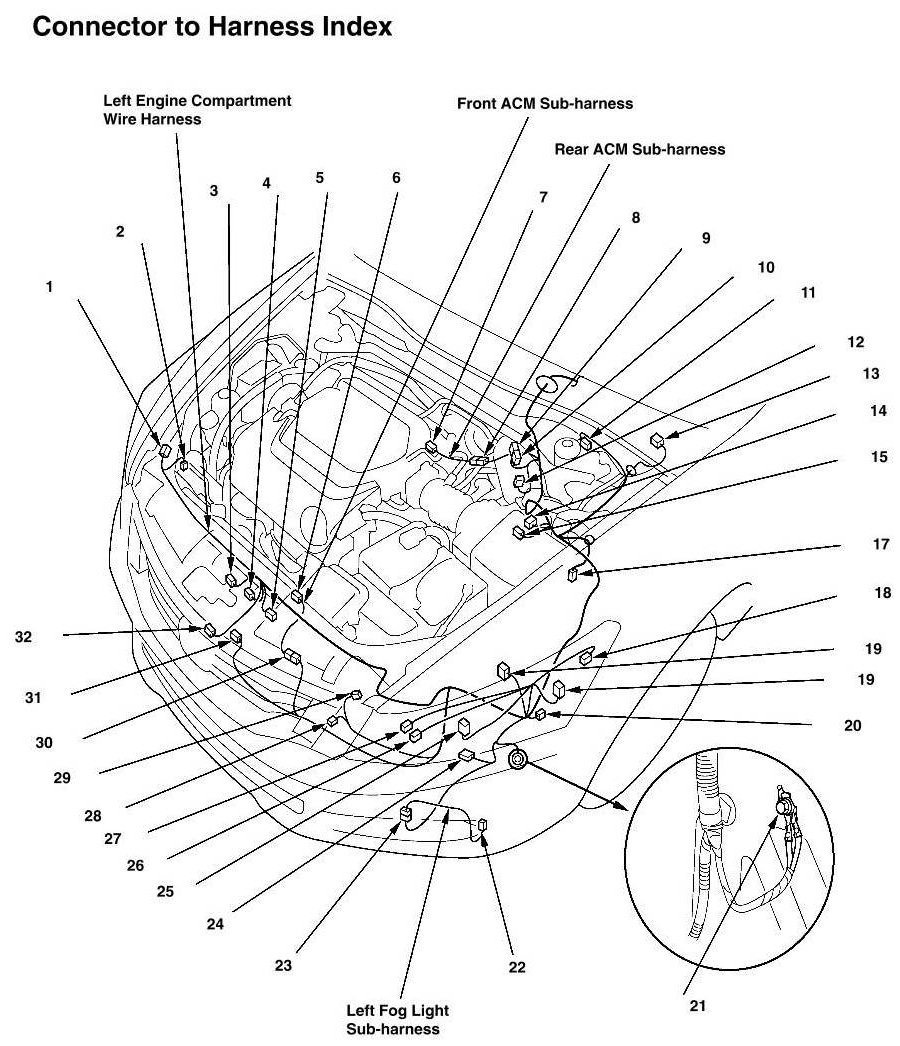

Left Engine Compartment Wire Harness (Engine Compartment Branch), Front ACM Sub-harness, Rear ACM Sub-harness, and Left Fog Light Sub-harness Connector and Harness Locations
