Cabin Temperature Sensor / Switch: Service and Repair

In-Car Temperature Sensor Replacement

1. Remove the driver's inner dashboard trim Driver's Inner Dashboard Trim Removal/Installation.

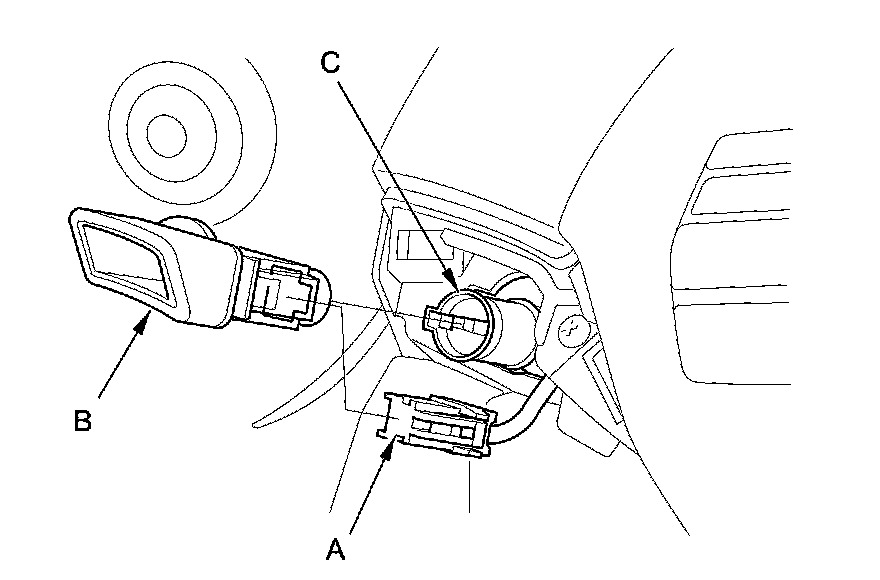

2. Disconnect the connector (A), and remove the in-car temperature sensor (B) from the air hose (C).





3. Install the sensor in the reverse order of removal. Be sure to connect the air hose securely.
