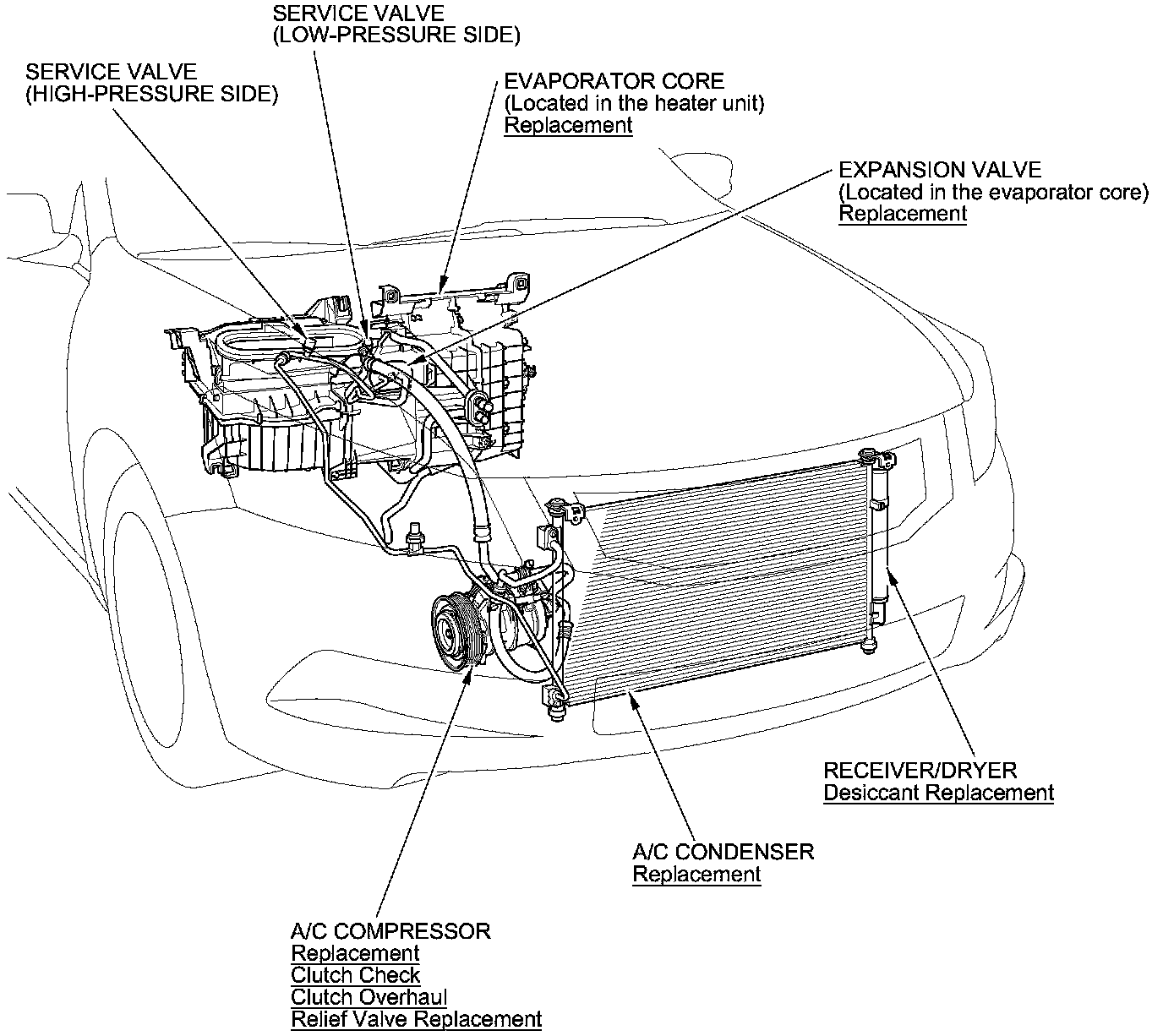

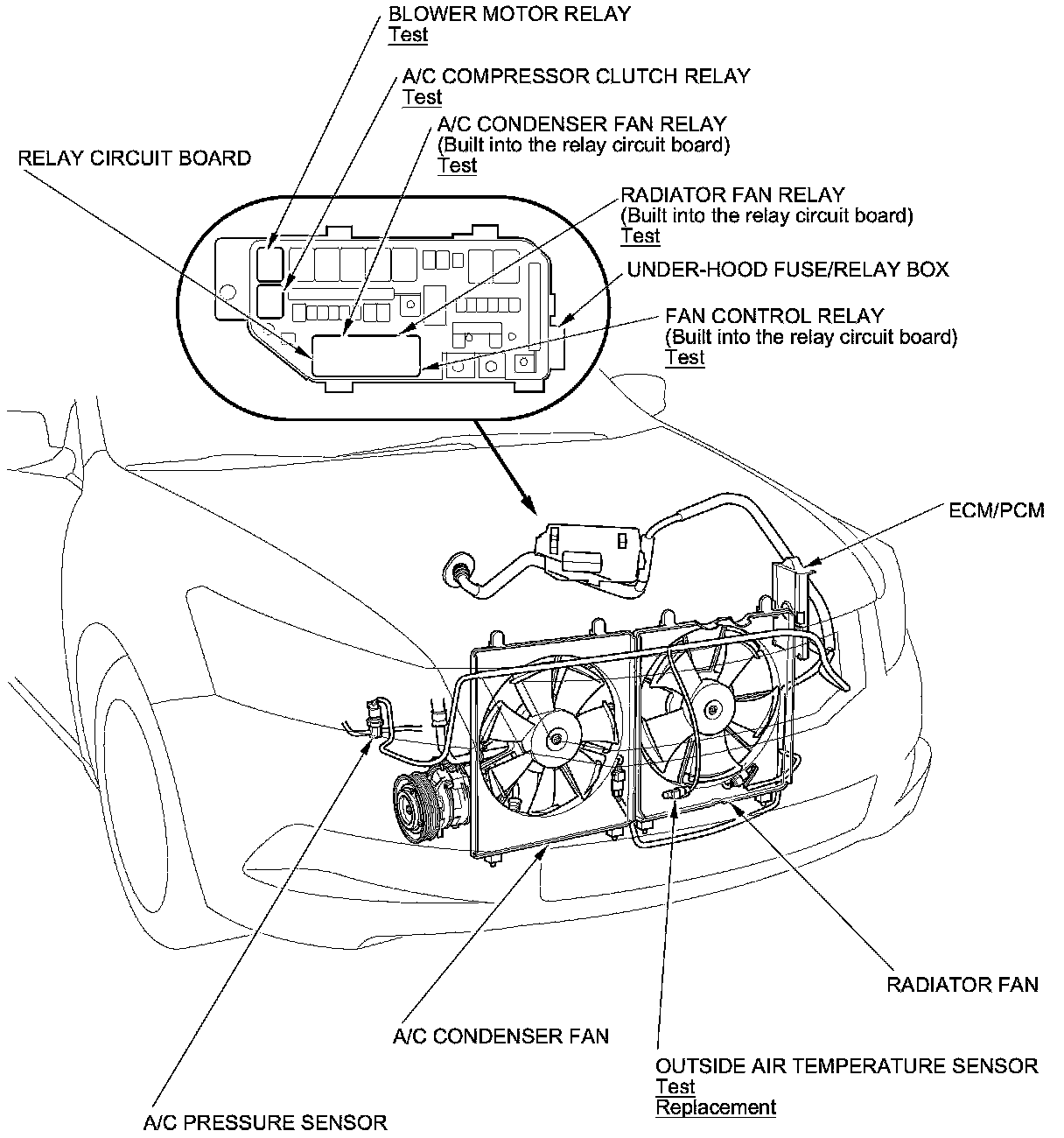

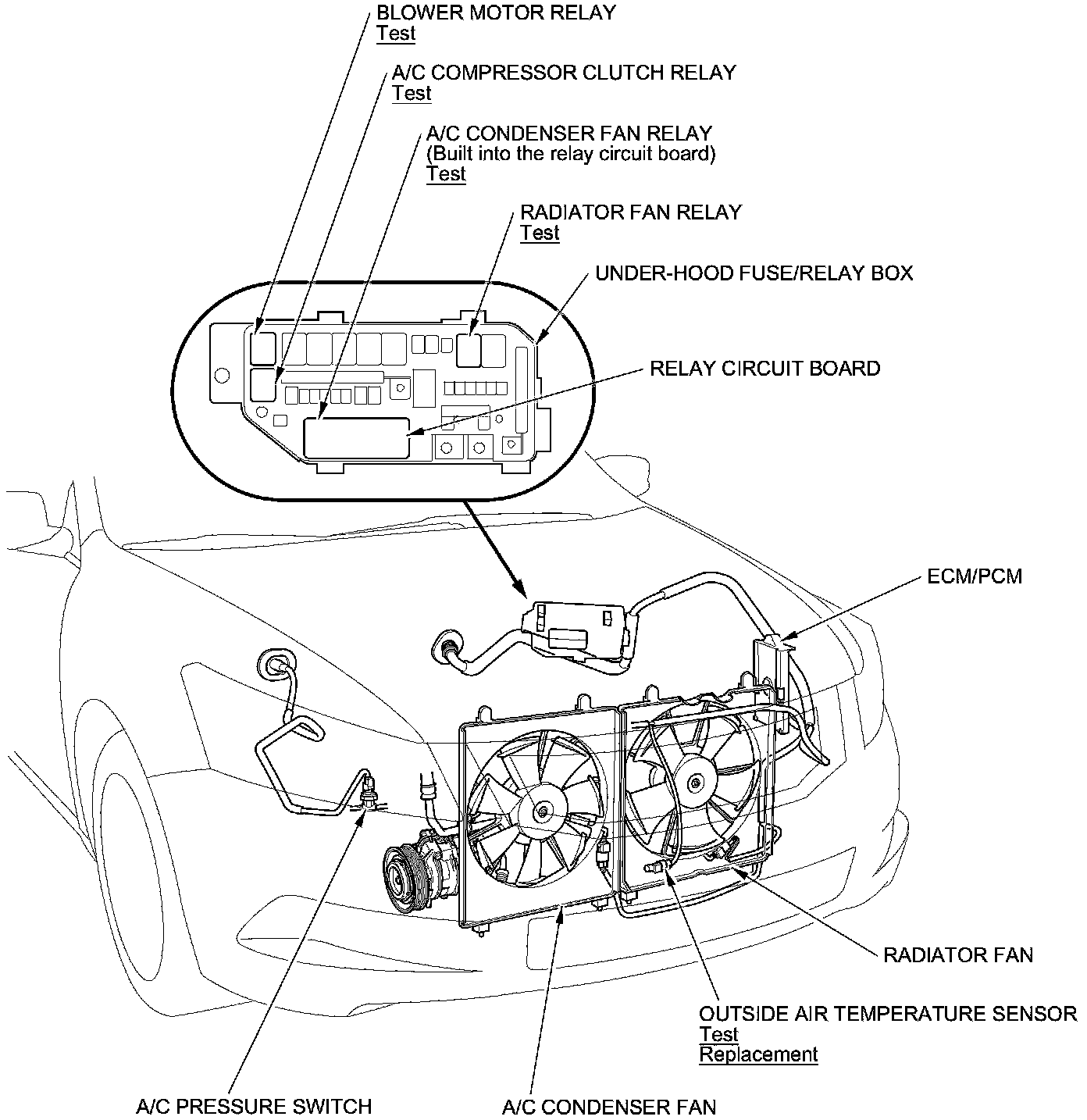

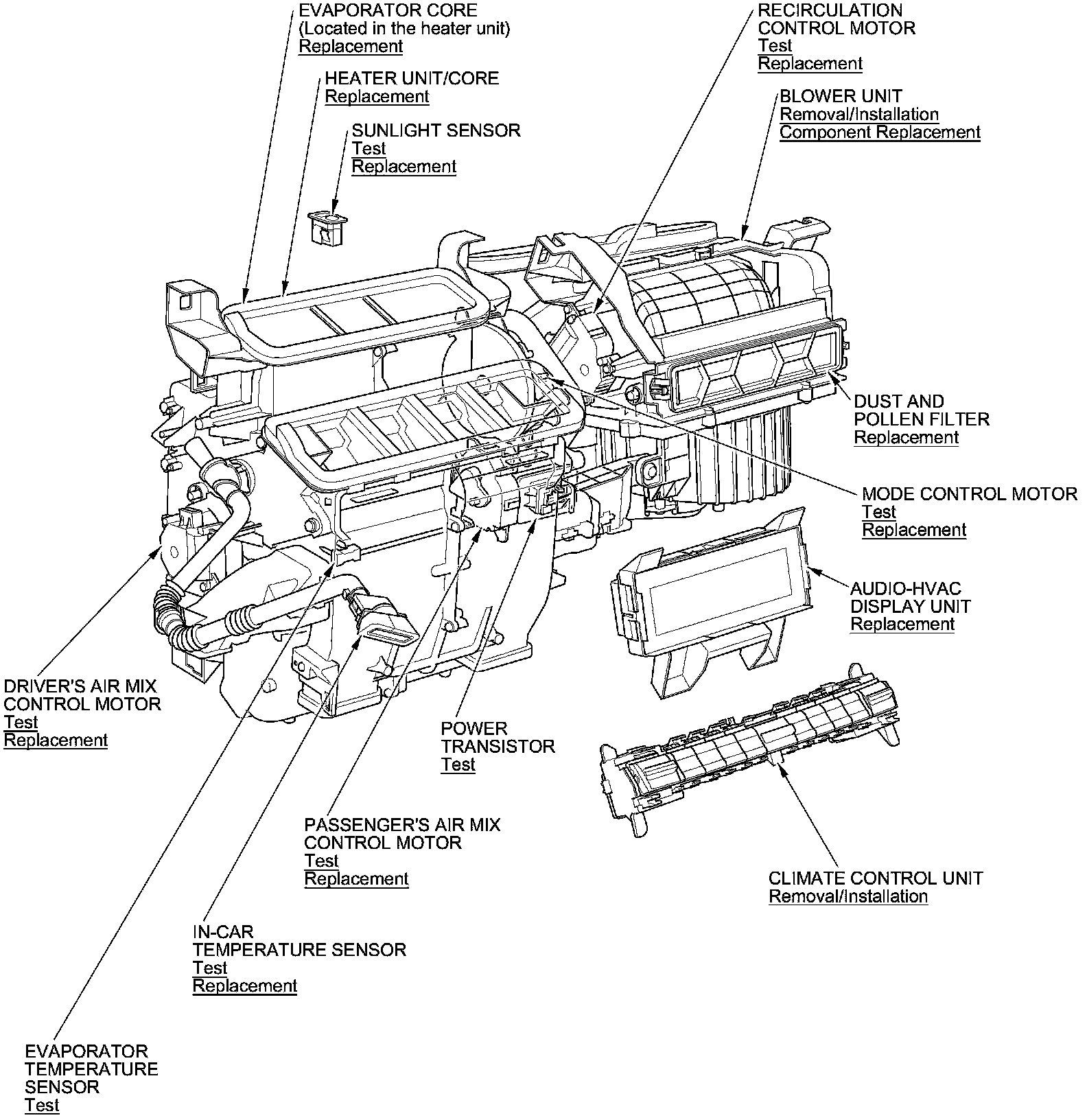

Climate Control System Component Location Index




Climate Control System Component Location Index





'08-09 models





'10-11 models





With navigation system





Without navigation system
