Safety Indicator (Drivers and Passengers MICU) Input Test

Safety Indicator (Driver's and Passenger's MICU) Input Test

NOTE:

- Before testing, troubleshoot the multiplex integrated control unit first, using B-CAN System Diagnosis Test Mode A Troubleshooting - B-CAN System Diagnosis Test Mode A.
- Before testing, do the gauge control module self-diagnosis function Initial Inspection and Diagnostic Overview, and make sure the safety indicator LEDs and B-CAN communication line are OK.

Driver's MICU

1. Turn the ignition switch to LOCK (0), and remove the driver's dashboard lower cover Driver's Dashboard Lower Cover Removal/Installation.

2. Disconnect driver's under-dash fuse/relay box connectors D, Q, and R.

NOTE: All connector views are wire side of female terminals.





3. Inspect the connector and socket terminals to be sure they are all making good contact.

- If the terminals are bent, loose or corroded, repair them as necessary and recheck the system.
- If the terminals look OK, go to step 4.

4. Reconnect the connectors to the driver's under-dash fuse/relay box, and do the following input tests:

- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 5.










Passenger's MICU

5. Turn the ignition switch to LOCK (0), and remove the passenger's kick panel.

- 4-door Interior Trim Removal/Installation - Door Areas (4-door)
- 2-door Interior Trim Removal/Installation - Door Areas (2-door)

6. Disconnect passenger's under-dash fuse/relay box connectors A, E, and G*1(or H*2).





NOTE: All connector views are wire side of female terminals.





7. Inspect the connector and socket terminals to be sure they are all making good contact.

- If the terminals are bent, loose or corroded, repair them as necessary and recheck the system.
- If the terminals look OK, go to step 8.

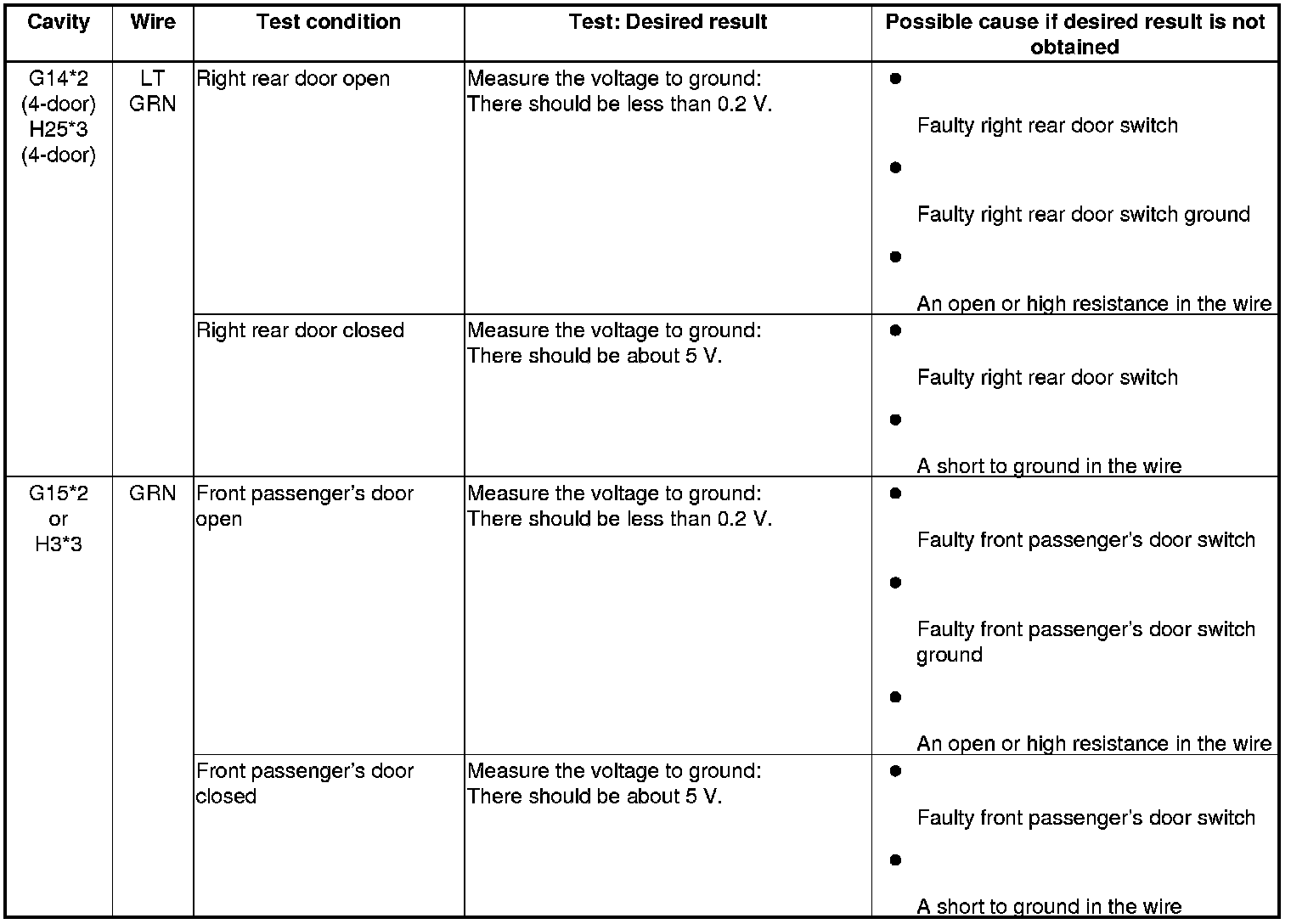

8. Reconnect the connectors to the passenger's under-dash fuse/relay box, and do the following input tests:

- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 9.













9. If multiple failures are found on more than one control unit, replace the driver's under-dash fuse/relay box (includes the driver's MICU).

- USA models Drivers Under-Dash Fuse/Relay Box (Drivers MICU) Removal And Installation (USA models)
- Canada models Drivers Under-Dash Fuse/Relay Box (Drivers MICU) Removal And Installation (Canada models)

If input failures are related to a particular control unit, replace the control unit.
