Fog/Driving Lamp: Service and Repair

Front Bumper Fog Light Cover Replacement

NOTE: Take care not to scratch the front bumper.

1. Remove the front bumper Front Bumper Removal/Installation.

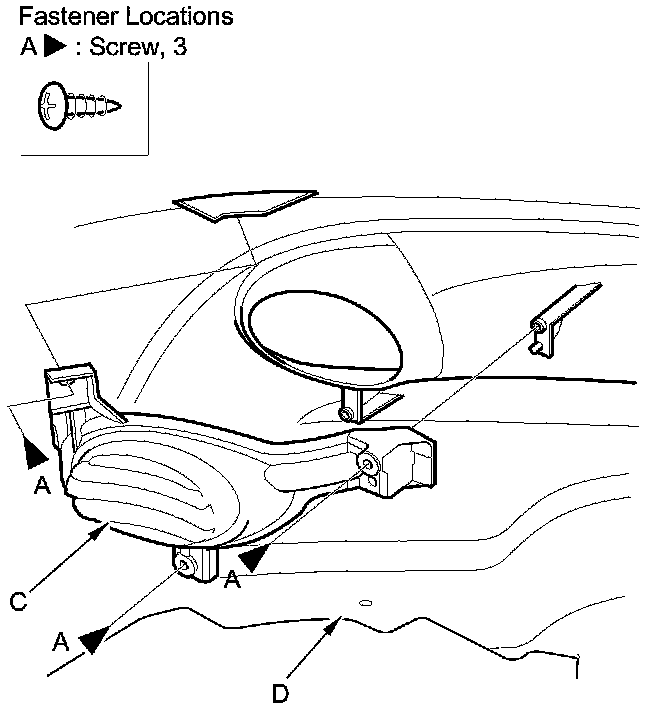

2. Remove the screws (A, B), then remove the front bumper fog light cover (C) from the front bumper (D).

2-door





4-door (for some '08-10 models)





4-door (for some '11 models)





3. Install the cover in the reverse order of removal.
