Tightening Torque And Sequence

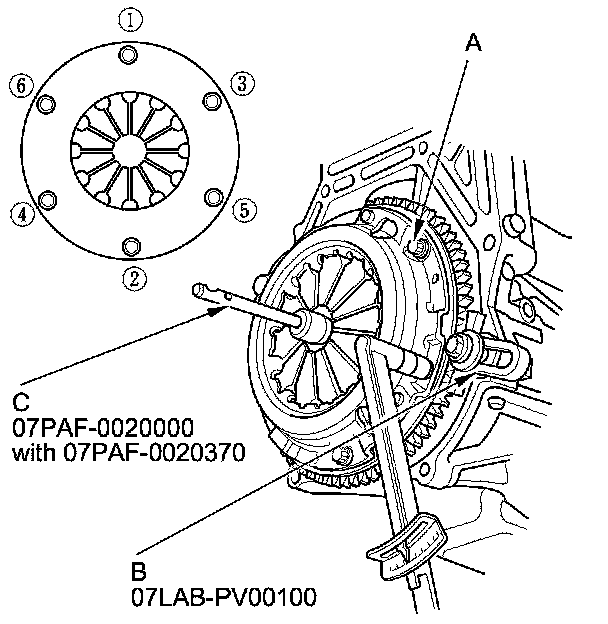

Torque the pressure plate mounting bolts (A) in a crisscross pattern. Tighten the bolts in several steps to prevent warping the diaphragm spring. Make sure that there is no clearance between the pressure plate and the flywheel.
