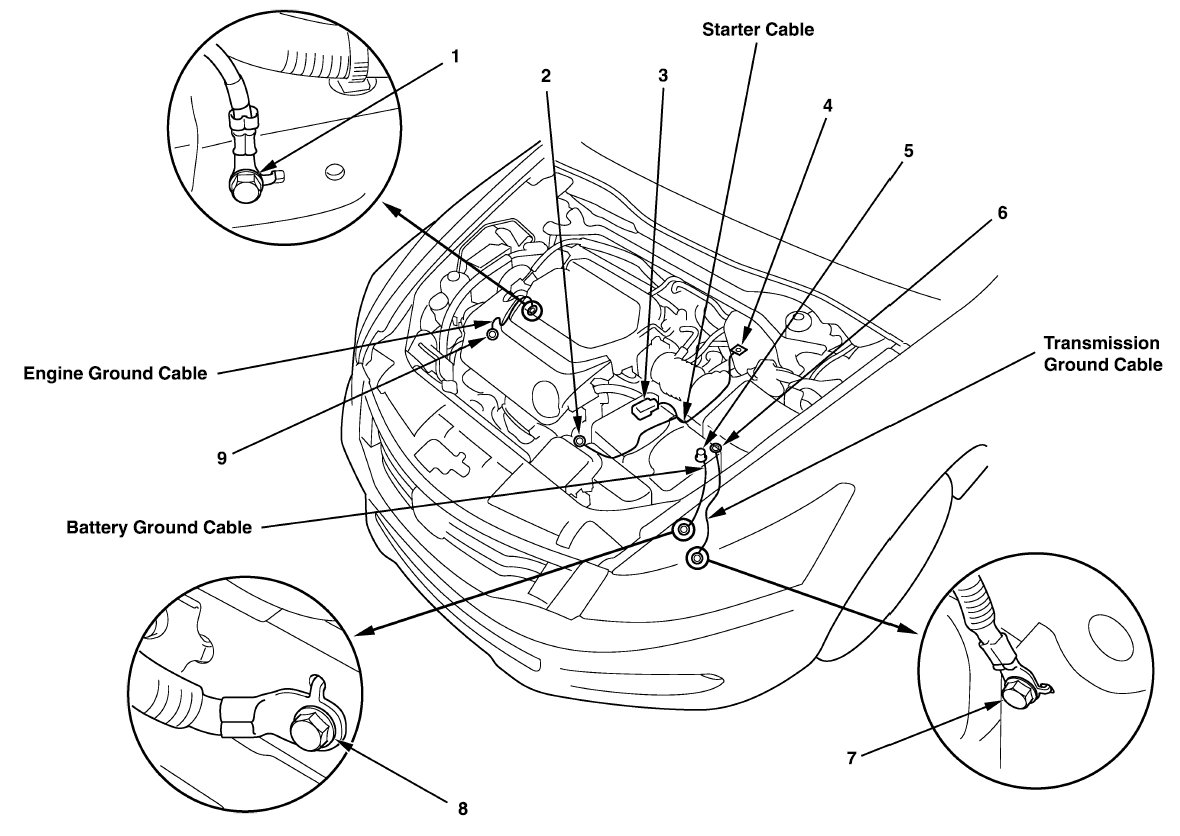

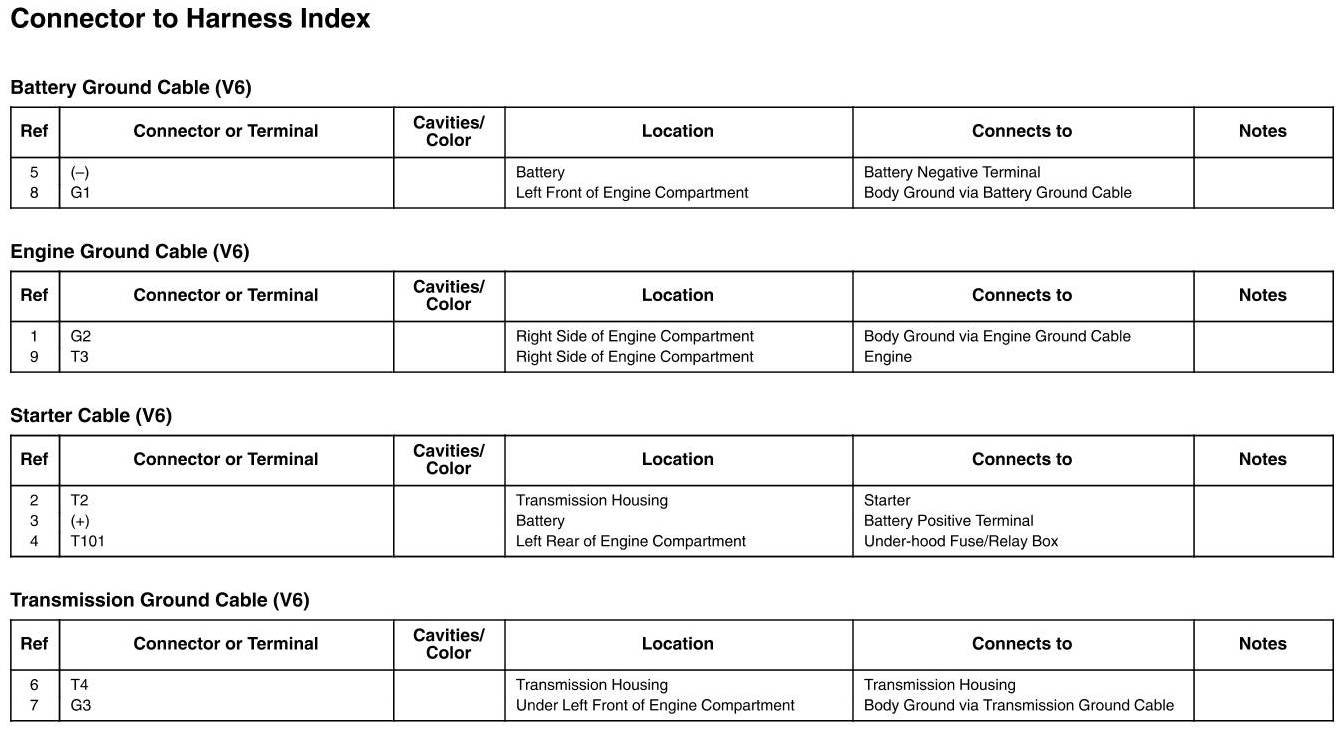

Battery Ground Cable, Engine Ground Cable, Starter Cable and Transmission Ground Cable Connector and Harness Locations
Battery Ground Cable, Engine Ground Cable, Starter Cable and Transmission Ground Cable Connector and Harness Locations
