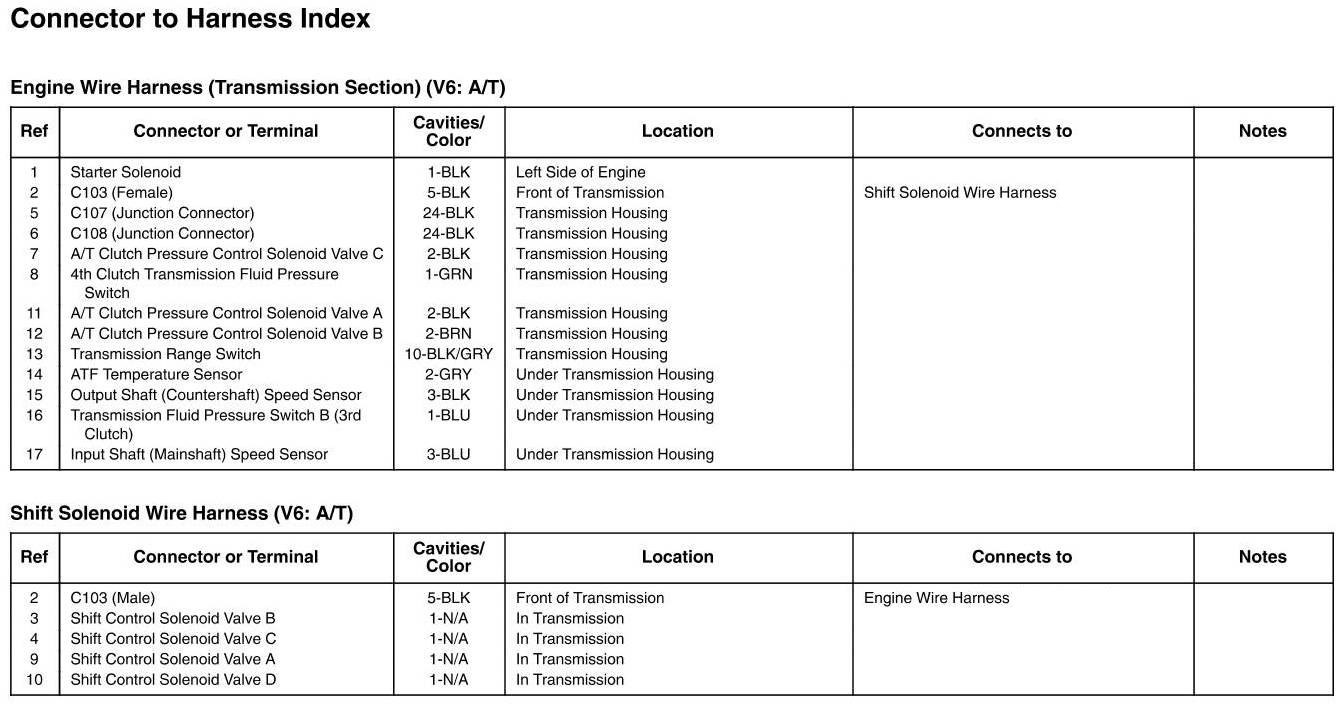

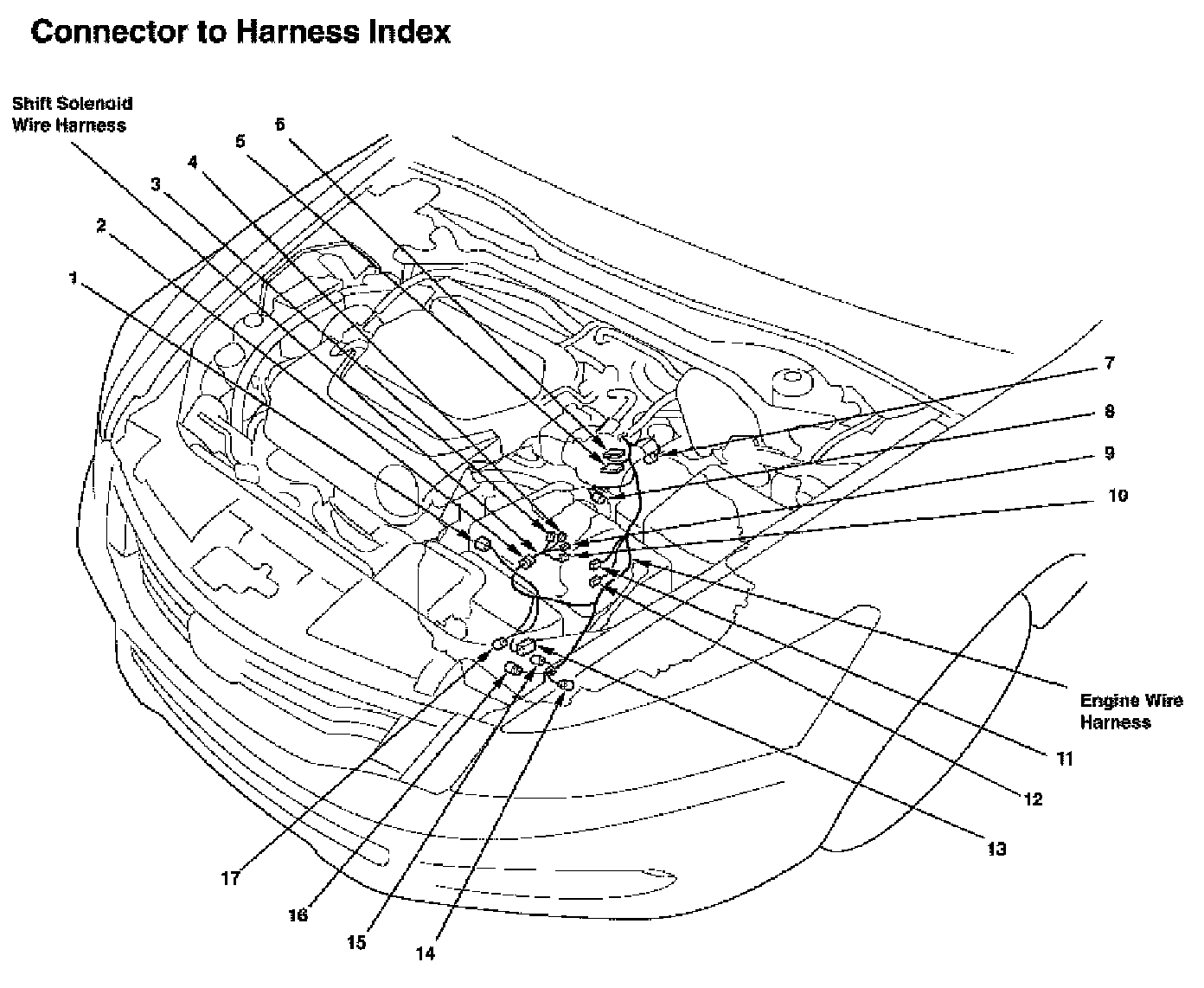

Engine Wire Harness (Transmission Section) and Shift Solenoid Wire Harness Connector and Harness Locations (V6: A/T)
Engine Wire Harness (Transmission Section) and Shift Solenoid Wire Harness Connector and Harness Locations (V6: A/T)
