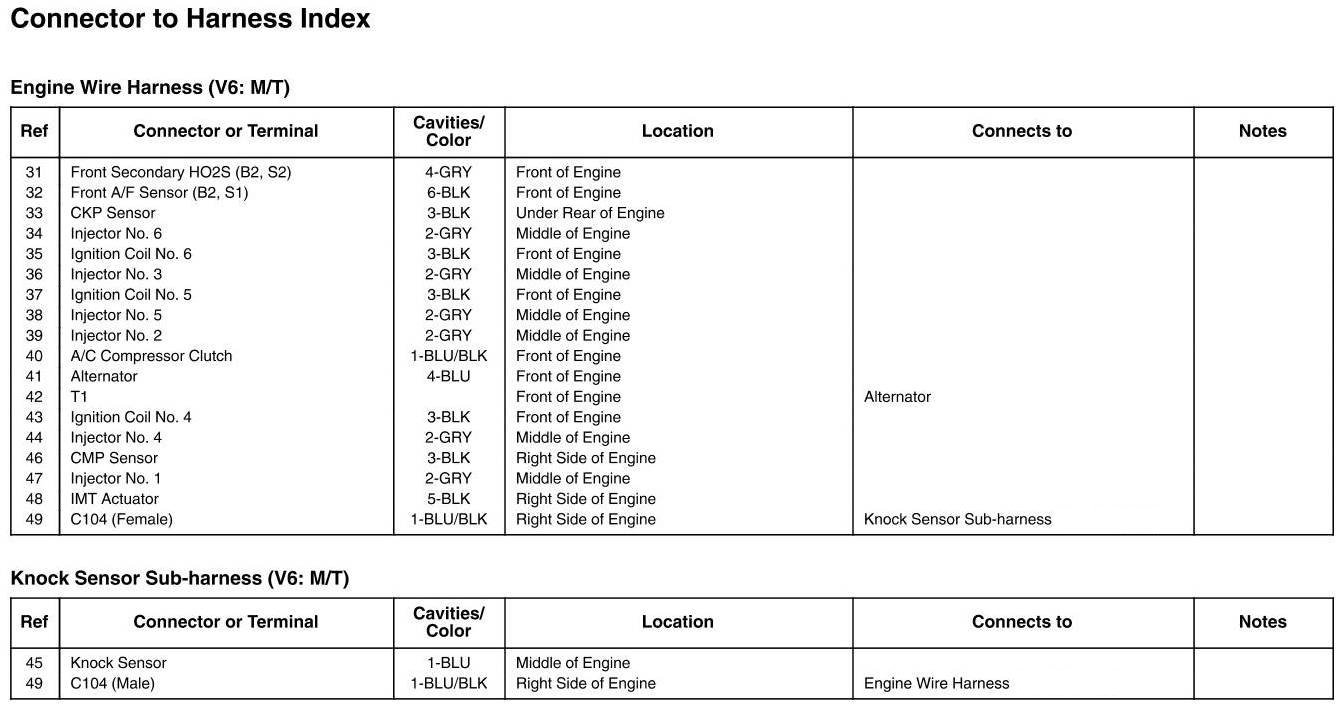

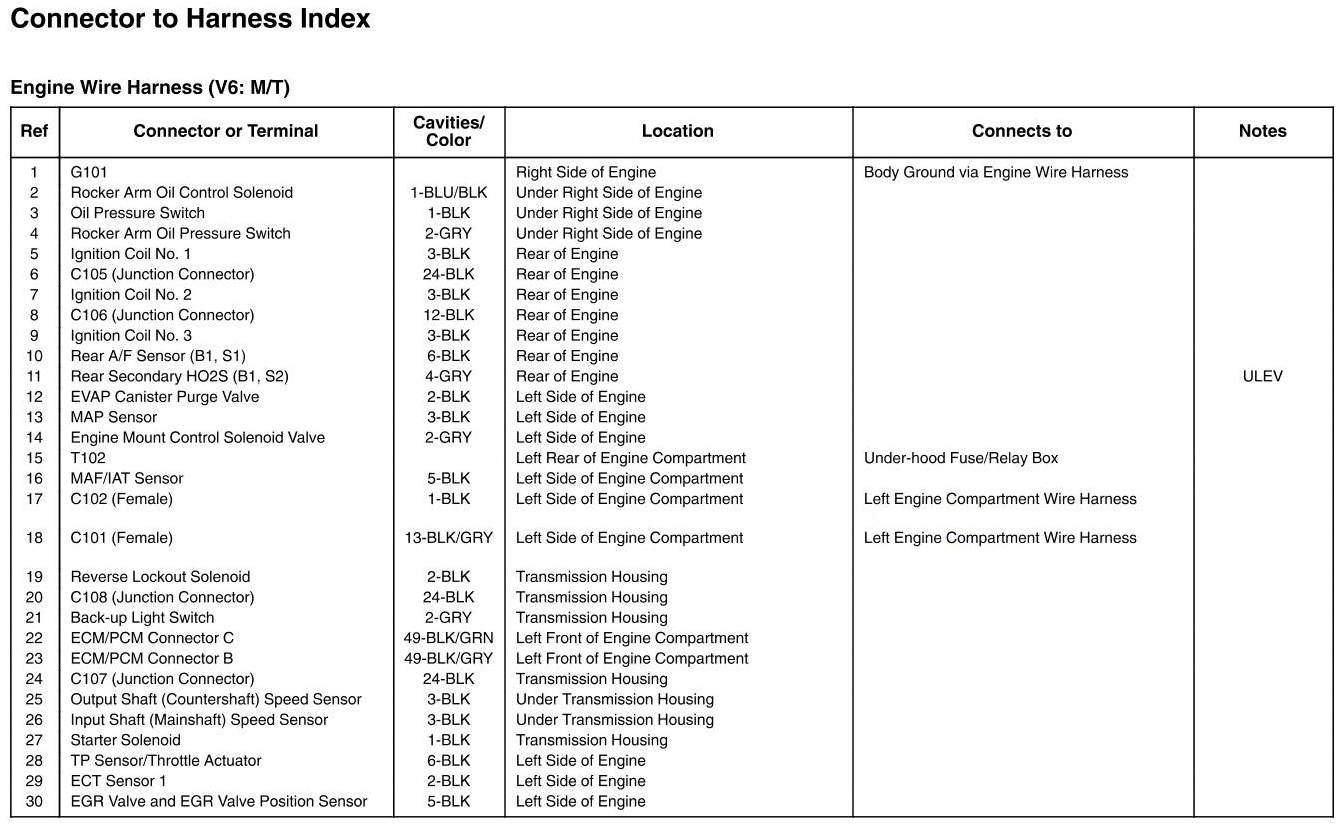

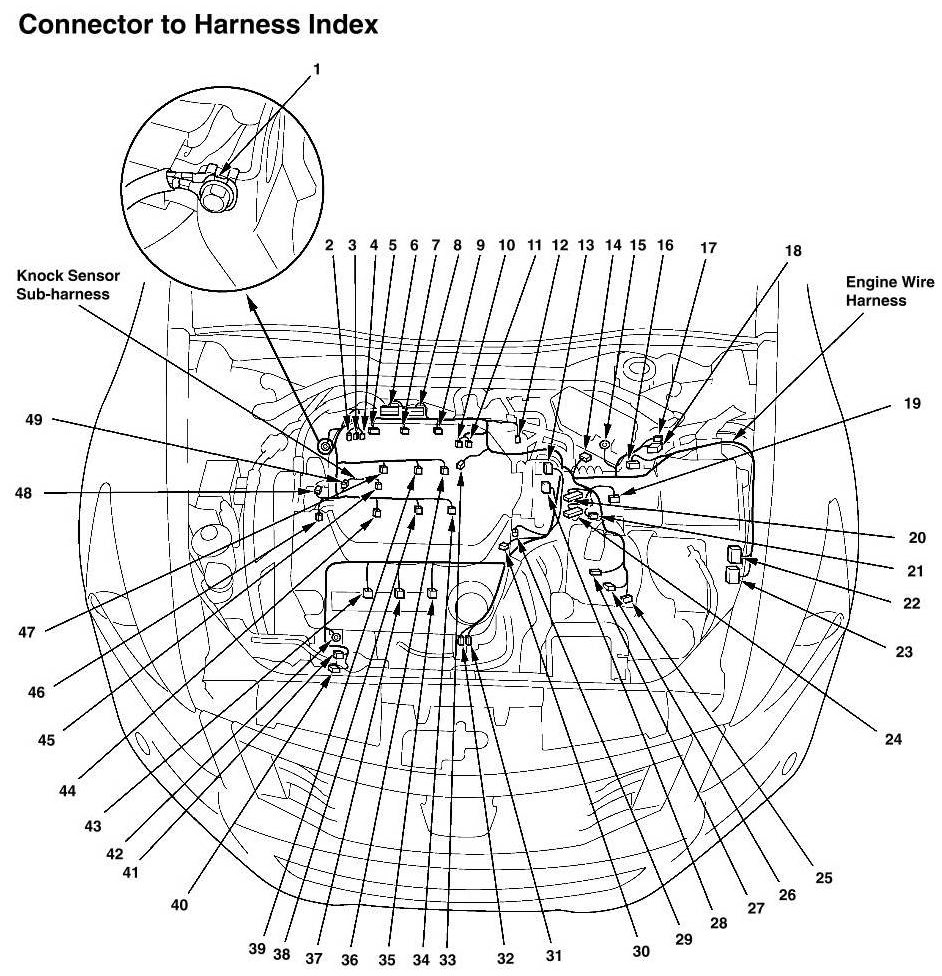

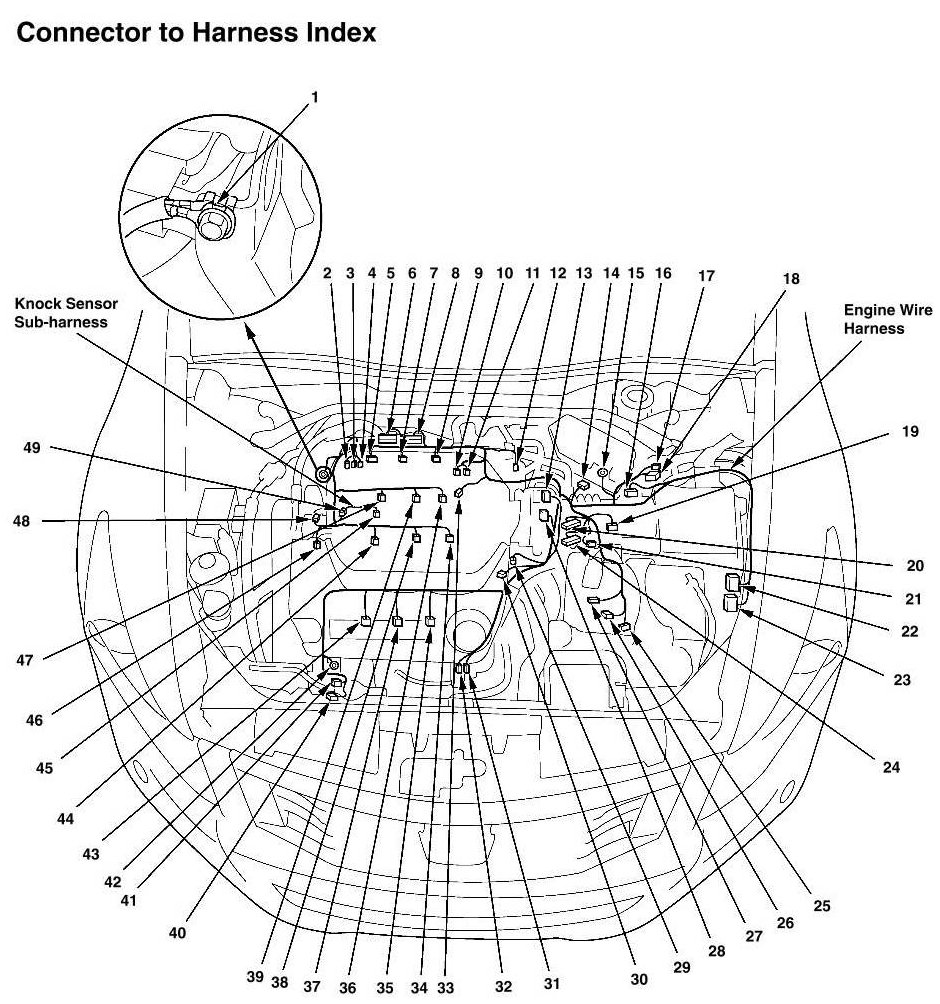

Engine Wire Harness and Knock Sensor Subharness Connector and Harness Locations (V6: M/T)
Engine Wire Harness and Knock Sensor Subharness Connector and Harness Locations (V6: M/T)
