Trunk Lid Latch Switch Test

Trunk Lid Latch Switch Test

1. Remove the trunk lid trim panel Interior Trim Removal/Installation - Trunk Lid.

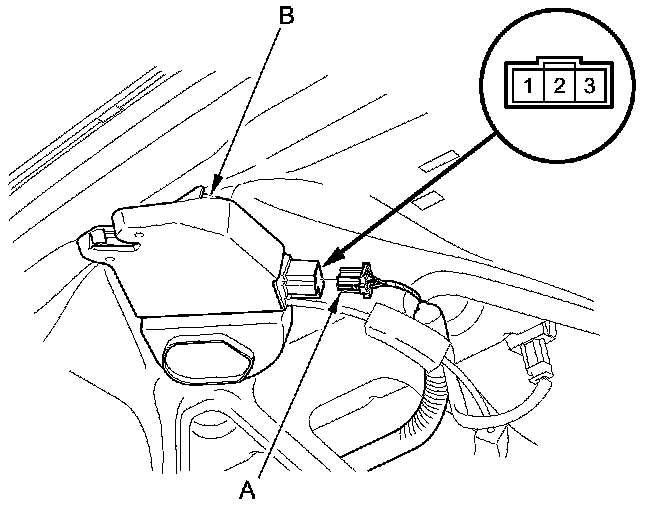

2. Disconnect the 3P connector (A) from the trunk lid latch assembly (B).





3. Check for continuity between terminals No. 1 and No. 2.

- There should be continuity with the trunk lid open.
- There should be no continuity with the trunk lid closed.

4. If the continuity is not as specified, faulty trunk lid latch switch; replace the trunk lid latch.
