Torque Specifications

Torque Specifications

Torque Specifications

NOTE:
-Refer to the S/M for the precautions and complete procedures.
-Refer to the S/M for the bolts/nuts not indicated here.
x1: Parts to be a tightened in particular order.
x2: Follow the S/M closely for torque, sequence, and special steps.

Engine Electrical

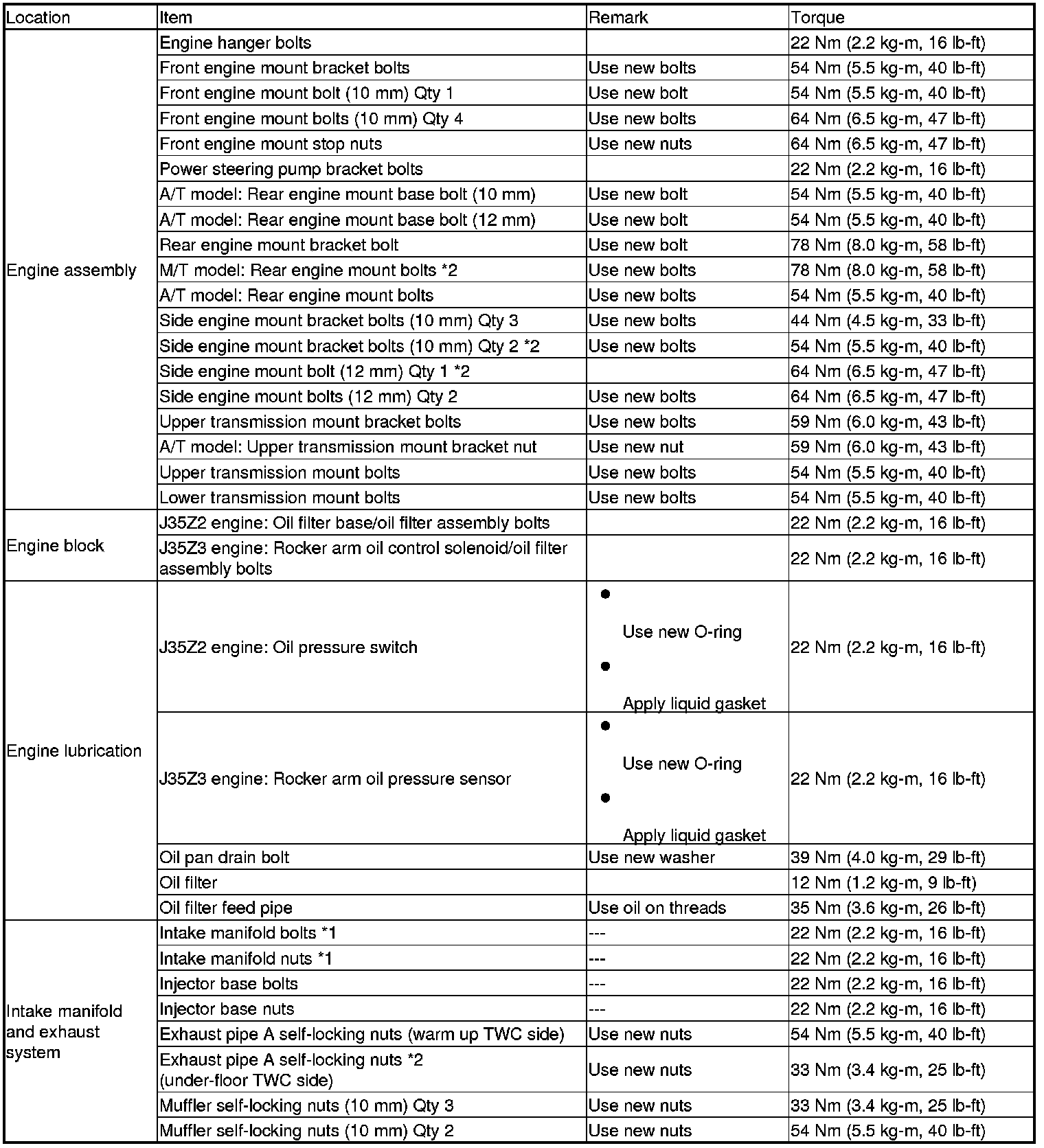

Engine Mechanical





Engine Cooling

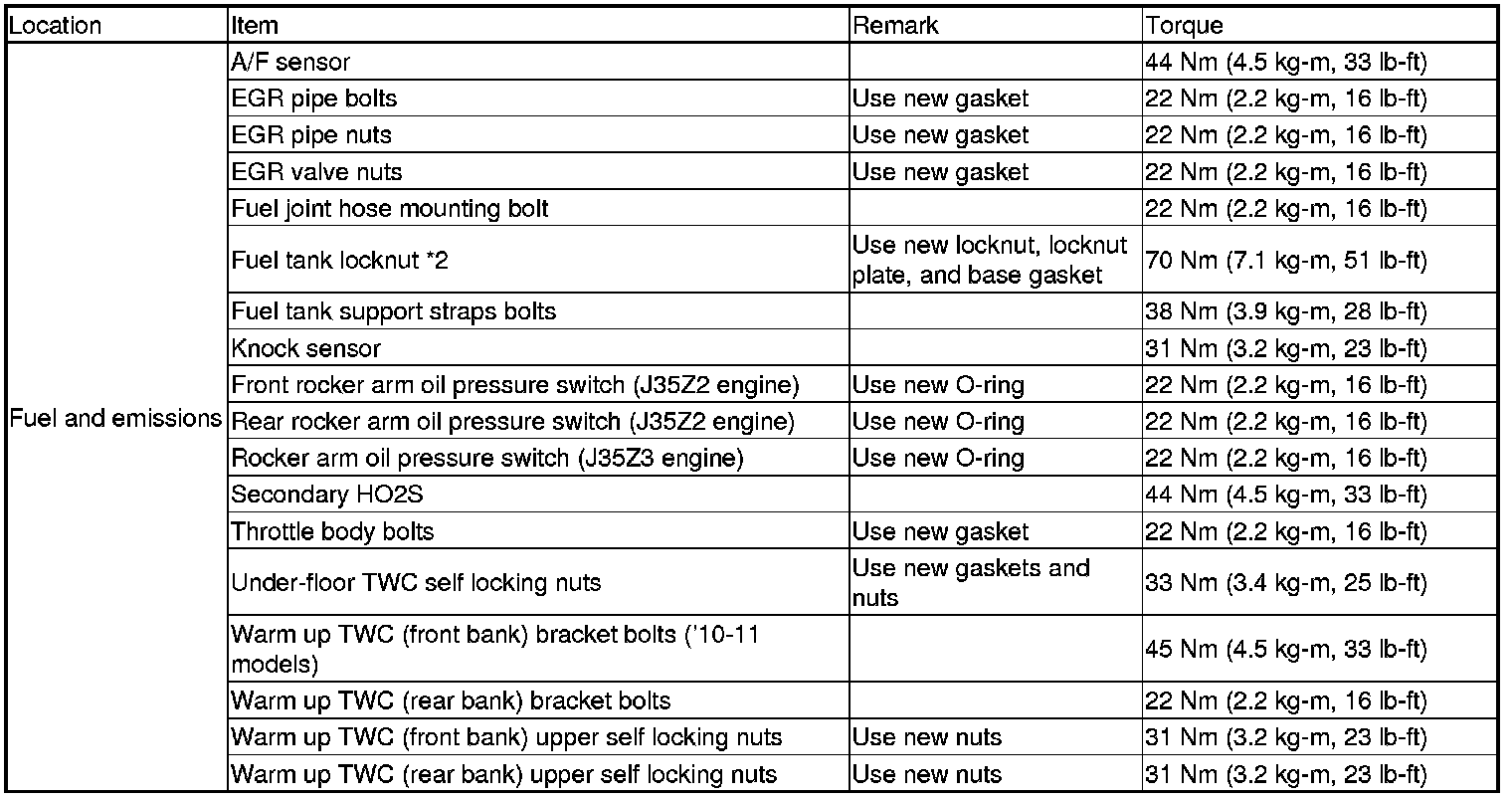

Fuel Emissions





Clutch

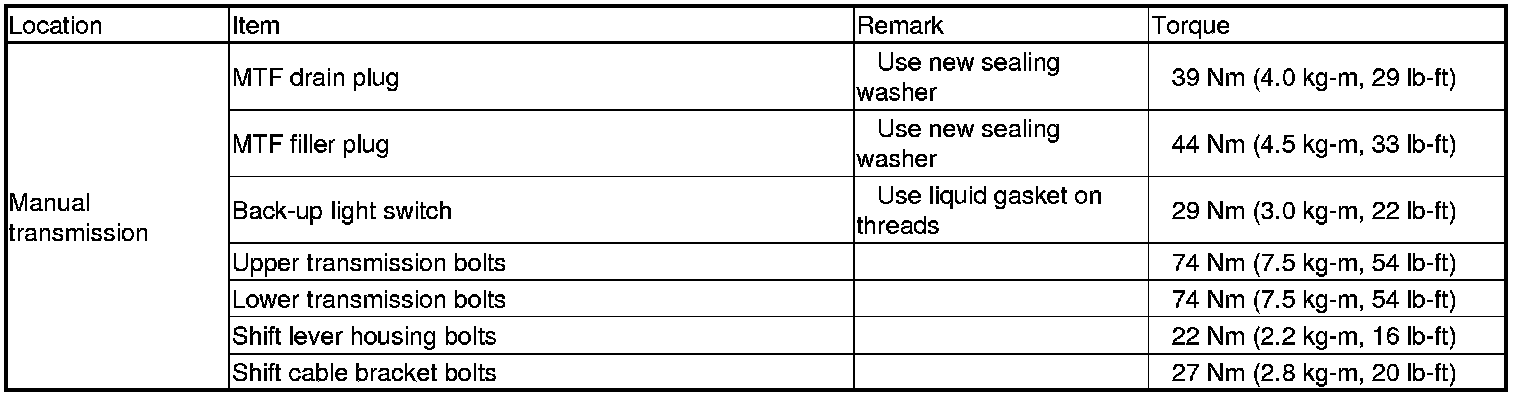

Manual Transmission





Torque Specifications

NOTE:
-Refer to the S/M for the precautions and complete procedures.
-Refer to the S/M for the bolts/nuts not indicated here.
x1: Parts to be a tightened in particular order.
x2: Follow the S/M closely for torque, sequence, and special steps.

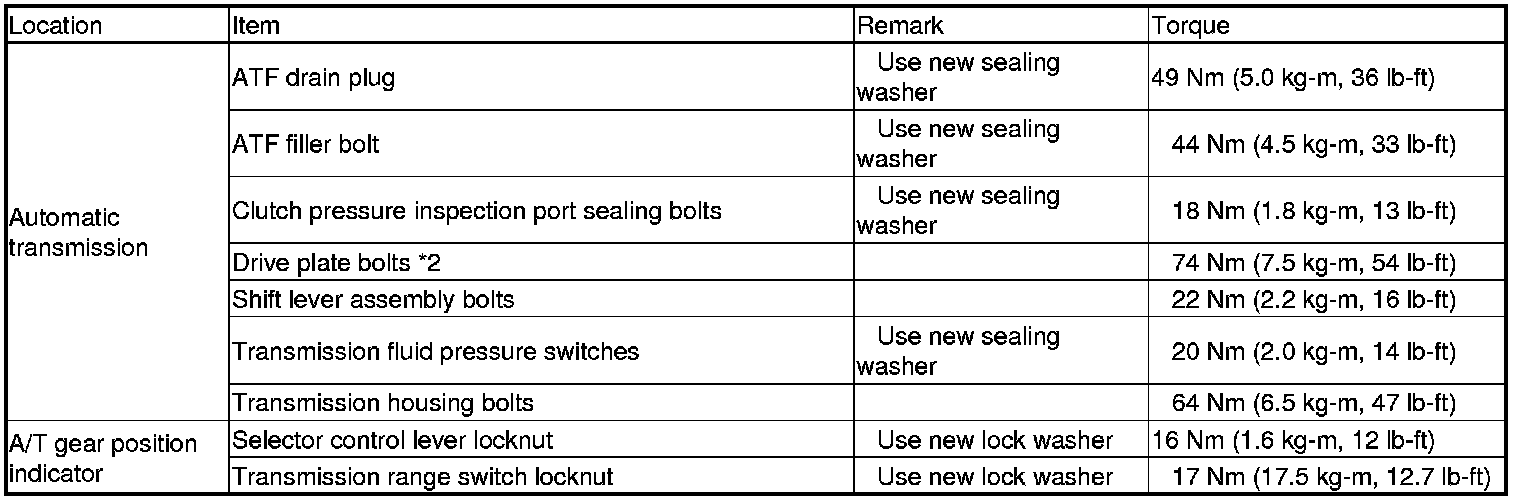

Automatic Transmission





Driveline/Axle

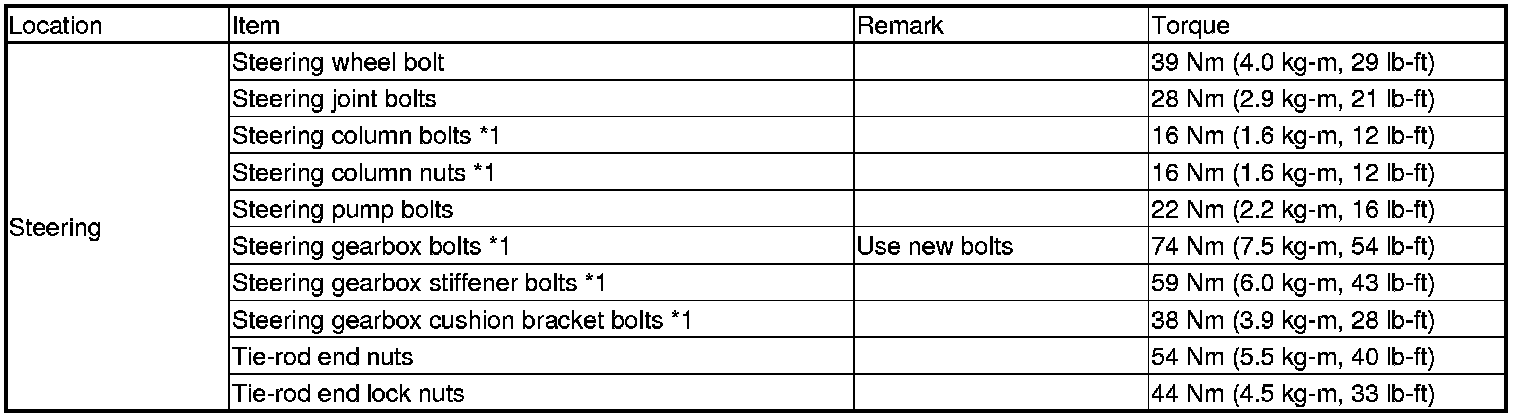

Steering





Suspension

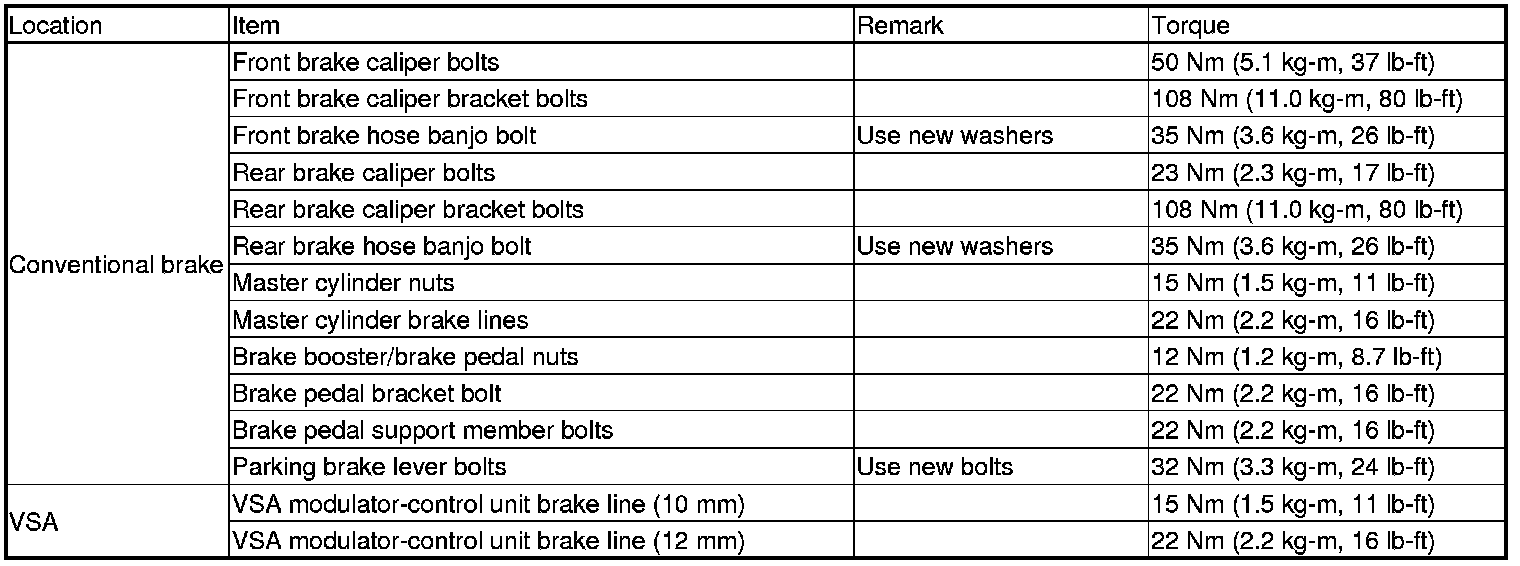

Brakes





Torque Specifications

NOTE:
-Refer to the S/M for the precautions and complete procedures.
-Refer to the S/M for the bolts/nuts not indicated here.
x1: Parts to be a tightened in particular order.
x2: Follow the S/M closely for torque, sequence, and special steps.

Body

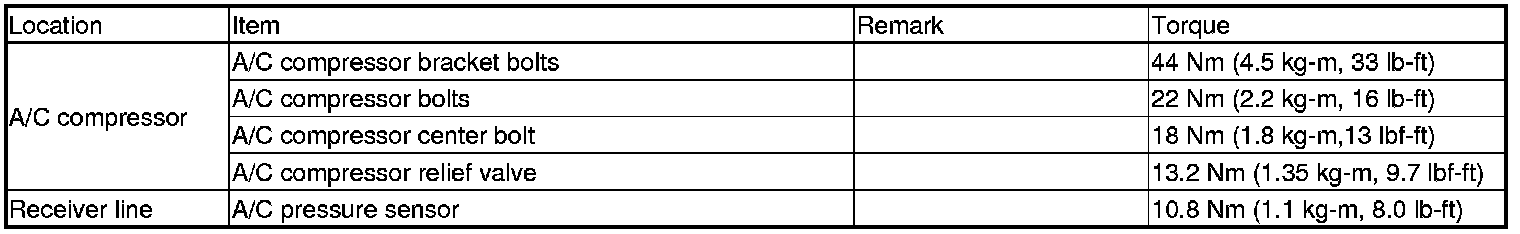

Heating, Ventilation, and Air Conditioning





Body Electrical
