DTC Troubleshooting
DTC Troubleshooting: P0351, P0352, P0353, P0354, P0351, P0352, P0353, P0354
DTC P0351:
No. 1 Cylinder Ignition Coil Circuit Malfunction
DTC P0352:
No. 2 Cylinder Ignition Coil Circuit Malfunction
DTC P0353:
No. 3 Cylinder Ignition Coil Circuit Malfunction
DTC P0354:
No. 4 Cylinder Ignition Coil Circuit Malfunction
NOTE: Before you troubleshoot, record all freeze data and any on-board snapshot, and review the general troubleshooting information.
1. Turn the ignition switch to ON (II).
2. Clear the DTC with the HDS.
3. Start the engine.
4. Check for Pending or Confirmed DTCs with the HDS.
Is DTC P0351, P0352, P0353, and/or P0354 indicated?
YES -
Go to step 5.
NO -
Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the ignition coil, and the ECM/PCM.�
5. Turn the ignition switch to LOCK (0).
6. Exchange the ignition coil from the problem cylinder with one from another cylinder.
7. Start the engine.
8. Check for Pending or Confirmed DTCs with the HDS.
Is an ignition coil DTC indicated at the cylinder where the ignition coil was exchanged?
YES -
Replace the faulty ignition coil Service and Repair, then go to step 26.
NO -
Go to step 9.
9. Turn the ignition switch to LOCK (0).
10. Check the No. B33 IGNITION COIL (15 A) fuse in the under-dash fuse/relay box.
Is the fuse OK?
YES -
Go to step 11.
NO -
Go to step 13.

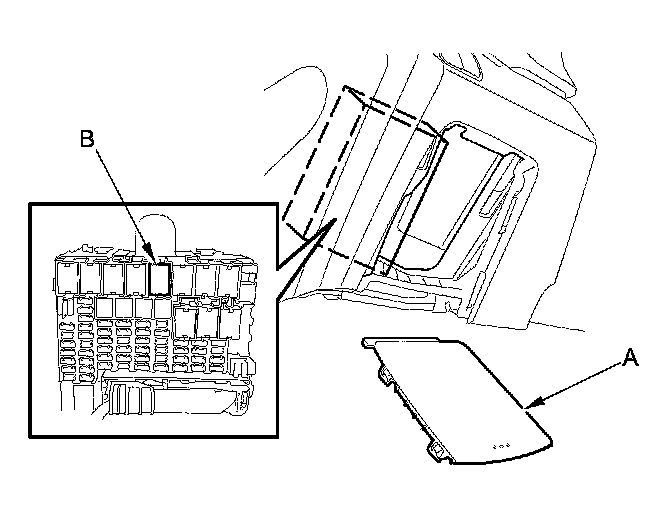

11. Open the fuse lid panel (A), then remove the ignition coil relay (B) from the under-dash fuse/relay box.
12. Test the ignition coil relay Testing and Inspection.
Is the ignition coil relay OK?
YES -
Go to step 16.
NO -
Replace the ignition coil relay, then go to step 27.
13. Open the fuse lid panel (A), then remove the ignition coil relay (B) from the under-dash fuse/relay box.
14. Disconnect all ignition coil 3P connectors.
15. Check for continuity between No. 1 ignition coil 3P connector terminal No. 1 and body ground.
Is there continuity?
YES -
Repair a short in the wire between the ignition coil relay and the ignition coils. Also replace the No. B33IGNITION COIL (15 A) fuse, then go to step 27.
NO -
Replace the under-dash fuse/relay box; USA models Under-Dash Fuse/Relay Box Removal And Installation (USA Models), Canada models Under-Dash Fuse/Relay Box Removal And Installation (Canada Models), then go to step 27.
16. Reinstall the ignition coil relay.
17. Disconnect the ignition coil 3P connector from the problem cylinder.
18. Turn the ignition switch to ON (II).
19. Measure voltage between ignition coil 3P connector terminal No. 1 and body ground.
Is there battery voltage?
YES -
Go to step 20.
NO -
Repair an open in the wire between the ignition coil and the No. B33 IGNITION COIL (15 A) fuse, then go to step 26.
20. Turn the ignition switch to LOCK (0).
21. Check for continuity between ignition coil 3P connector terminal No. 2 and body ground.
Is there continuity?
YES -
Go to step 22.
NO -
Repair an open in the wire between the ignition coil and G101; CVT, M/T, then go to step 27.
22. Jump the SCS line with the HDS.
23. Disconnect ECM/PCM connector C (44P).

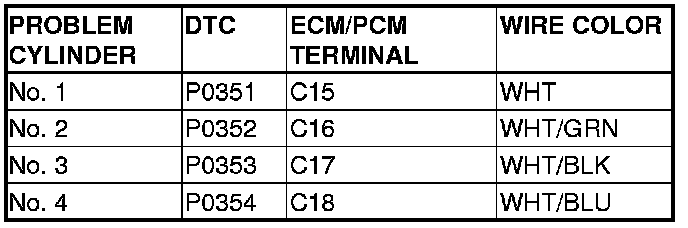

24. Check for continuity between body ground and the ECM/PCM connector terminal of the problem ignition coil (see table).
Is there continuity?
YES -
Repair a short in the wire between the ECM/PCM and the ignition coil, then go to step 27.
NO -
Go to step 25.

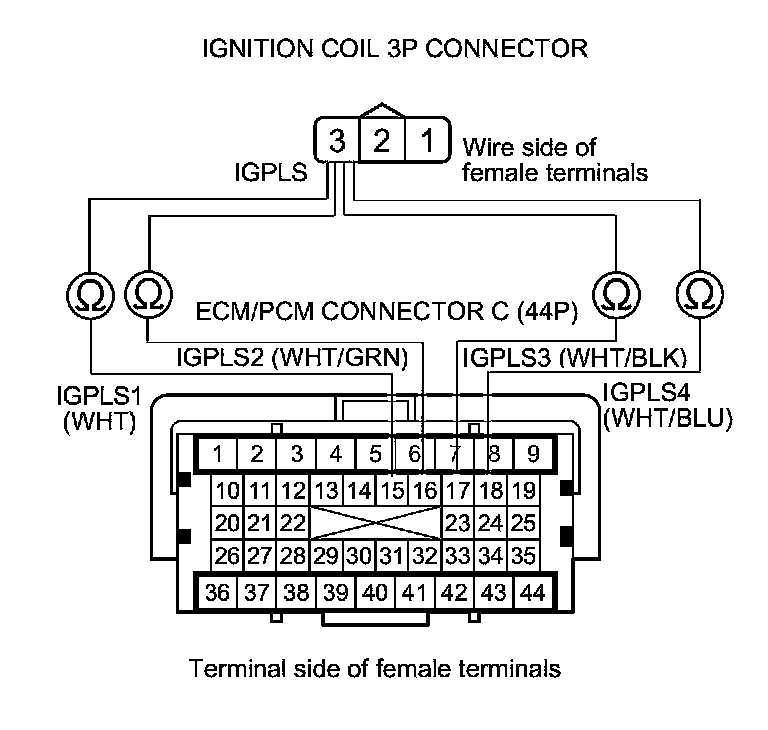

25. Check for continuity between appropriate ignition coil 3P connector terminal No. 3 and the ECM/PCM connector terminal of the problem ignition coil (see table).
Is there continuity?
YES -
Go to step 32.
NO -
Repair an open in the wire between the ECM/PCM and the ignition coil, then go to step 27.
26. Turn the ignition switch to LOCK (0).
27. Reconnect all connectors.
28. Turn the ignition switch to ON (II).
29. Reset the ECM/PCM with the HDS.
30. Do the ECM/PCM idle learn procedure ECM/PCM Idle Learn Procedure.
31. Check for Pending or Confirmed DTCs with the HDS.
Is DTC P0351, P0352, P0353, or P0354 indicated?
YES -
Check for poor connections or loose terminals at the ignition coil, and the ECM/PCM, then go to step 1.
NO -
Troubleshooting is complete. If any other Pending or Confirmed DTCs are indicated, go to the indicated DTC's troubleshooting.�
32. Reconnect all connectors.
33. Update the ECM/PCM if it does not have the latest software ECM/PCM Update, or substitute a known-good ECM/PCM.
34. Check for Pending or Confirmed DTCs with the HDS.
Is DTC P0351, P0352, P0353, and/or P0354 indicated?
YES -
Check for poor connections or loose terminals at the ignition coil and the ECM/PCM. If the ECM/PCM was updated, substitute a known-good PCM/PCM, then recheck. If the ECM was substituted, go to step 1.
NO -
If the ECM/PCM was updated, troubleshooting is complete. If the ECM/PCM was substituted, replace the original ECM/PCM Service and Repair. If any other Pending or Confirmed DTCs are indicated, go to the indicated DTC's troubleshooting.�
