Cellular Phone: Service and Repair

HFL Switch Replacement

SRS components are located in this area. Review the SRS component location Locations, and the precautions and procedures Service and Repair in the SRS section before doing repairs or service.

1. Remove the driver's airbag assembly Driver's Airbag Replacement.

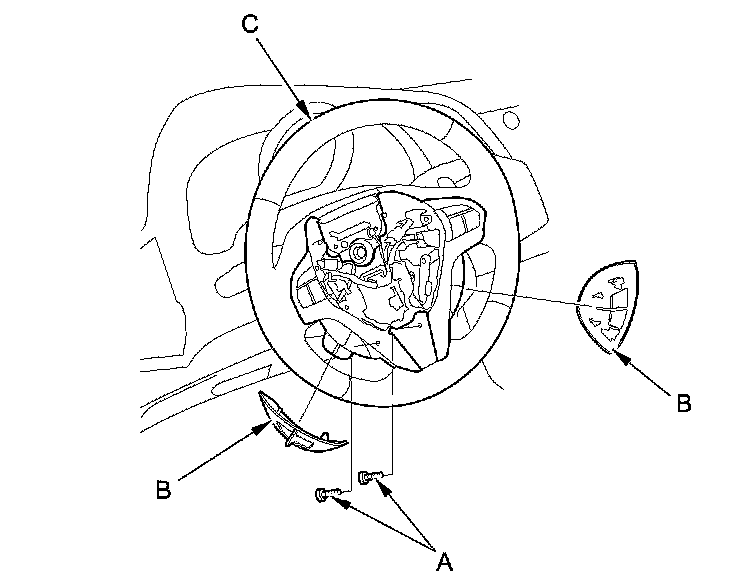

2. Remove the screws (A) and lids (B) from the steering wheel (C).

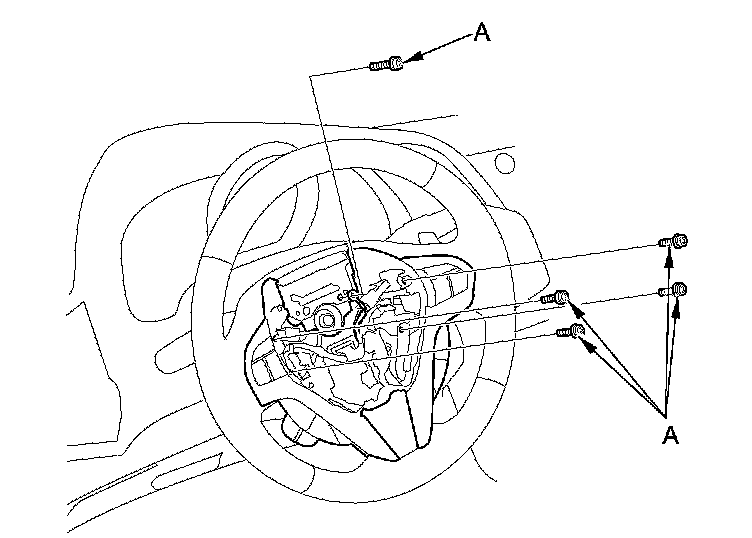

3. Remove the screws (A) from the steering wheel.

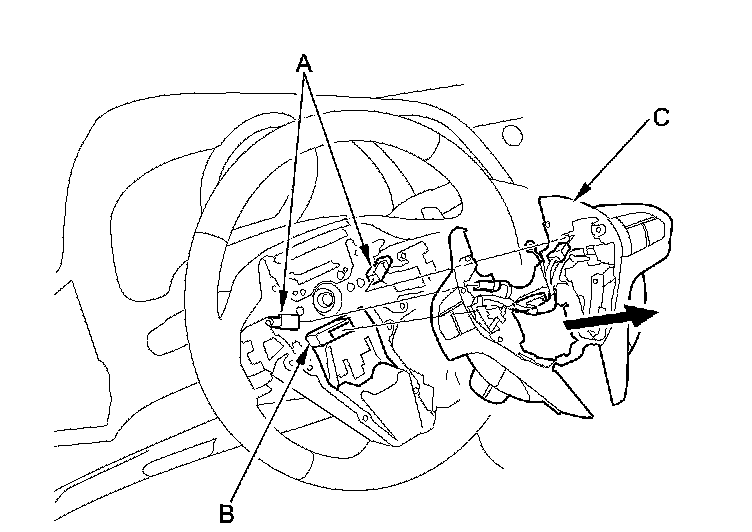

4. Disconnect the connectors (A) (CVT model) and the connector (B), then remove the steering wheel trim (C).






5. Disconnect the connector (A), then remove the screws and HFL switch (B) from the steering wheel trim (C).





6. Install the HFL switch in the reverse order of removal.
