Cabin Air Filter / Purifier: Service and Repair

Dust and Pollen Filter Replacement

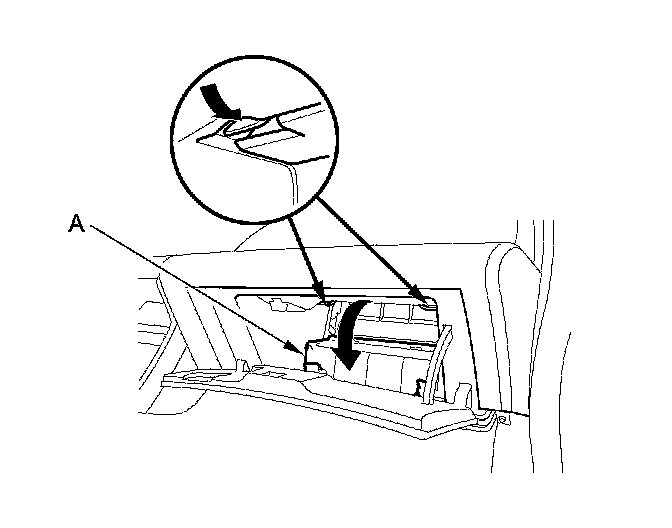

1. Open the glove box, then open the glove box lid (A).






2. Remove the lid (A) from the blower unit.





3. Pull out the dust and pollen filter (B).

4. Install the filter in the reverse order of removal. Make sure that there is no air leaking out of the blower unit.

5. If the Maintenance Minder required replacing the dust and pollen filter, reset the Maintenance Minder Description and Operation, and this procedure is complete. If the Maintenance Minder did not require the dust and pollen filter replacement, go to step 6.

6. Turn the ignition switch to LOCK (0).

7. Connect the HDS to the DLC.

8. Turn the ignition switch to ON (II).

9. Make sure the HDS communicates with the vehicle and ECM/PCM. If it does not communicate, troubleshoot the DLC circuit DLC Circuit Troubleshooting (IMA System).

10. Go to the Individual Maintenance Item Reset, and do the MAINTENANCE SUB ITEM 2 RESET.
