Driver / Vehicle Information Display Switch: Service and Repair

km/h, mph Change Switch Test/Replacement

1. Remove the instrument panel Instrument Panel Removal/Installation.

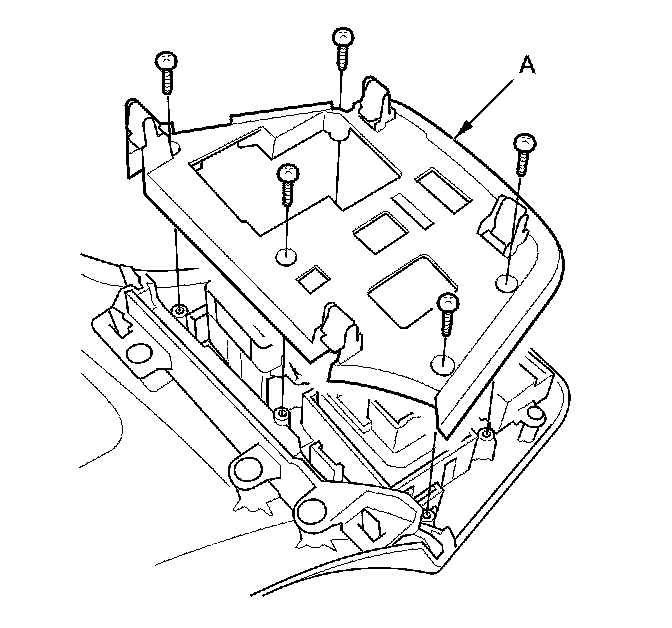

2. Remove the five screws and the cover (A).

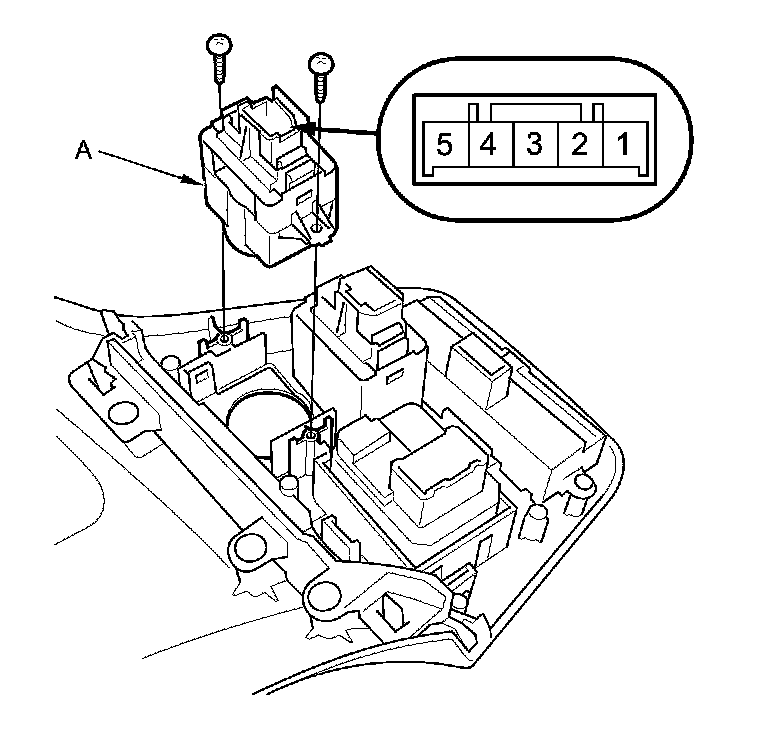

3. Remove the two screws, then remove the km/h, mph change switch (A).






4. Check for continuity between the terminals in each switch position according to the table.

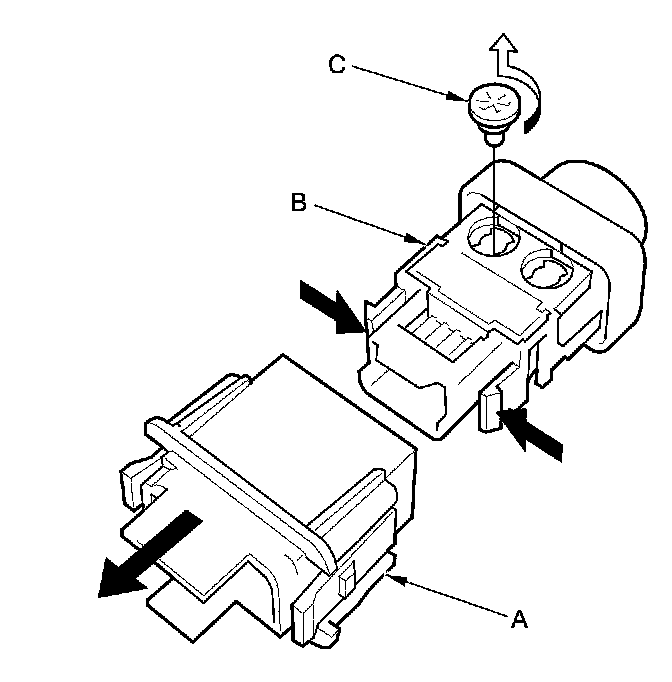

5. If the continuity is not as specified, remove the cover (A), and replace the switch (B) or bulb (C).





6. Install the switch in the reverse order of removal.
