Driver/Vehicle Information Display: Service and Repair

Multi-Information Switch Test/Replacement

NOTE:
SRS components are located in this area. Review the SRS component locations Locations and precautions and procedures Service and Repair before repairing or servicing.

1. Remove the lid (A) from the steering wheel.

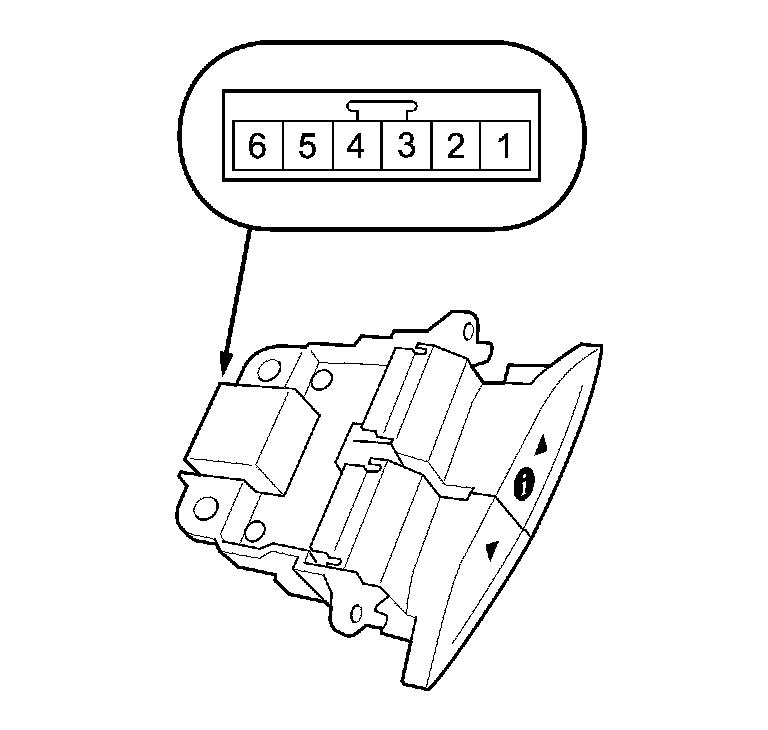

2. Disconnect the 6P connector (B) from the multi-information switch.

3. Remove the three screws, then remove the multi-information switch.

4. Measure the resistance between the multi-information switch 6P connector terminals No. 3 and No. 4 in each switch position according to the table.










5. If the resistance is not as specified, replace the switch. If the switch is OK, but the system does not operate, check for an open in the wire between the switch and the cable reel.

6. Install the switch in the reverse order of removal.
