Center Mounted Brake Lamp: Service and Repair

High Mount Brake Light Replacement

1. Open the hatch.

2. Remove the hatch lower trim Interior Trim Removal/Installation - Hatch Area.

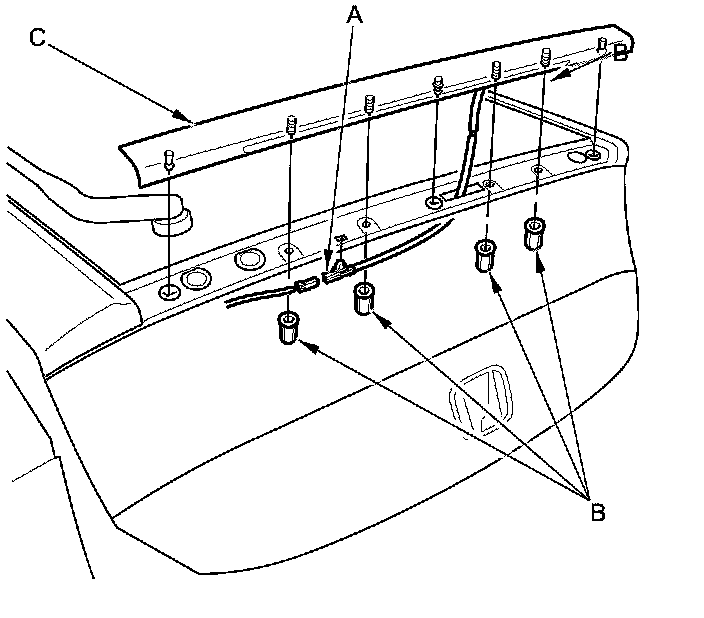

3. Disconnect the 2P connector (A).










4. Remove the four nuts (B) and high mount brake light (C).

5. Install the high mount brake light in the reverse order of removal.
