Fog/Driving Lamp: Adjustments

Fog Light Adjustment

1. Before adjusting the fog lights:

- Park the vehicle on a level surface.
- Make sure the tire pressures are correct.
- The driver or someone who weighs the same should sit in the driver's seat.
- Unload the vehicle.

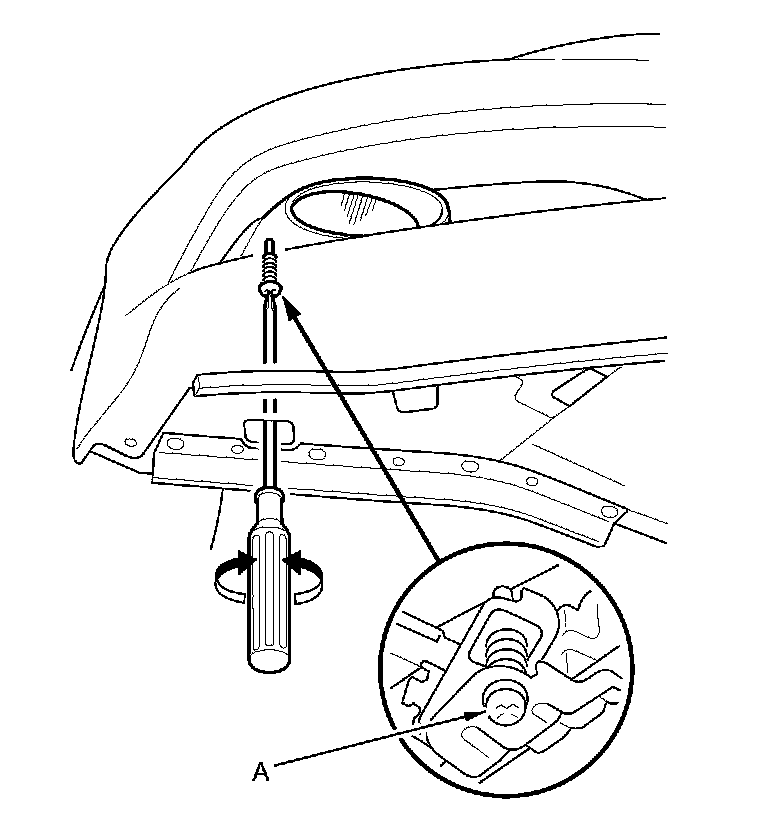

2. Adjust the fog lights at the adjuster (A) to local requirements.
