License Plate Lamp: Service and Repair

License Plate Light Replacement

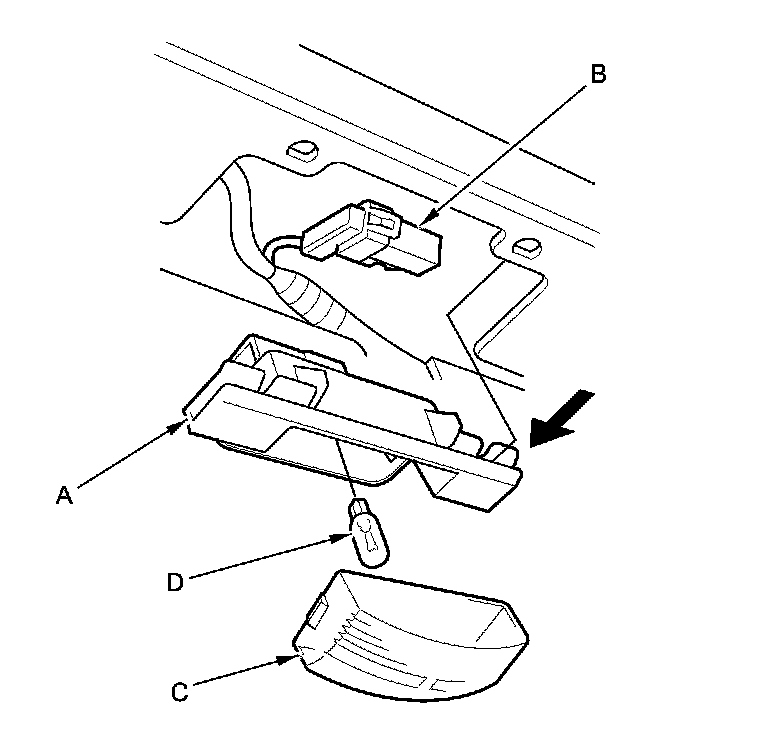

1. Slide out the license plate light (A) from the rear bumper.









2. Disconnect the 2P connector (B) from the license plate light.

3. Separate the lens (C) and the housing, then remove the bulb (D).

4. Install the license plate light in the reverse order of removal.
