Wipers/Washers (MICU) Input Test

Wipers/Washers (MICU) Input Test

NOTE:

- Before testing, check the No. B5 (10 A), No. B16 (10 A), No. B21 (15 A), No. B56 (30 A), and No. B60 (50 A) fuses in the under-dash fuse/relay box.
- If there is a malfunction of the rear window wiper operation, and no DTCs are detected, check the rear window wiper motor and an open in the ground circuit of the rear window wiper.

1. Turn the ignition switch to LOCK (0).

2. Remove the fuse lid panel Fuse Lid Panel Removal/Installation, and remove the driver's dashboard lower cover Driver's Dashboard Lower Cover Removal/Installation.

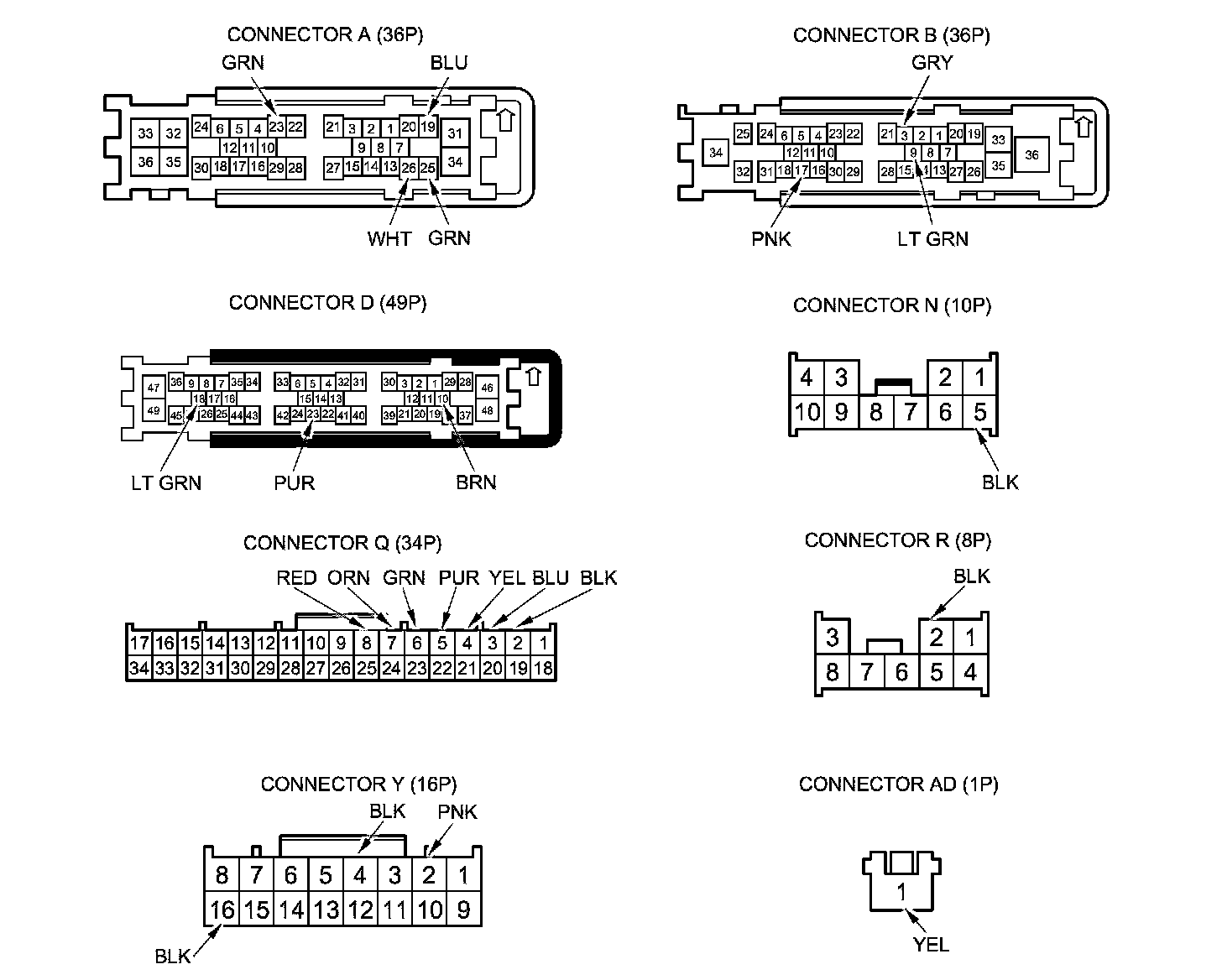

3. Disconnect under-dash fuse/relay box connectors A, B, D, N, Q, R, Y, and AD.

NOTE: All connector views are wire side of female terminals.





4. Inspect the connector and socket terminals to be sure they are all making good contact.

- If the terminals are bent, loose or corroded, repair them as necessary and recheck the system.
- If the terminals look OK, go to step 5.

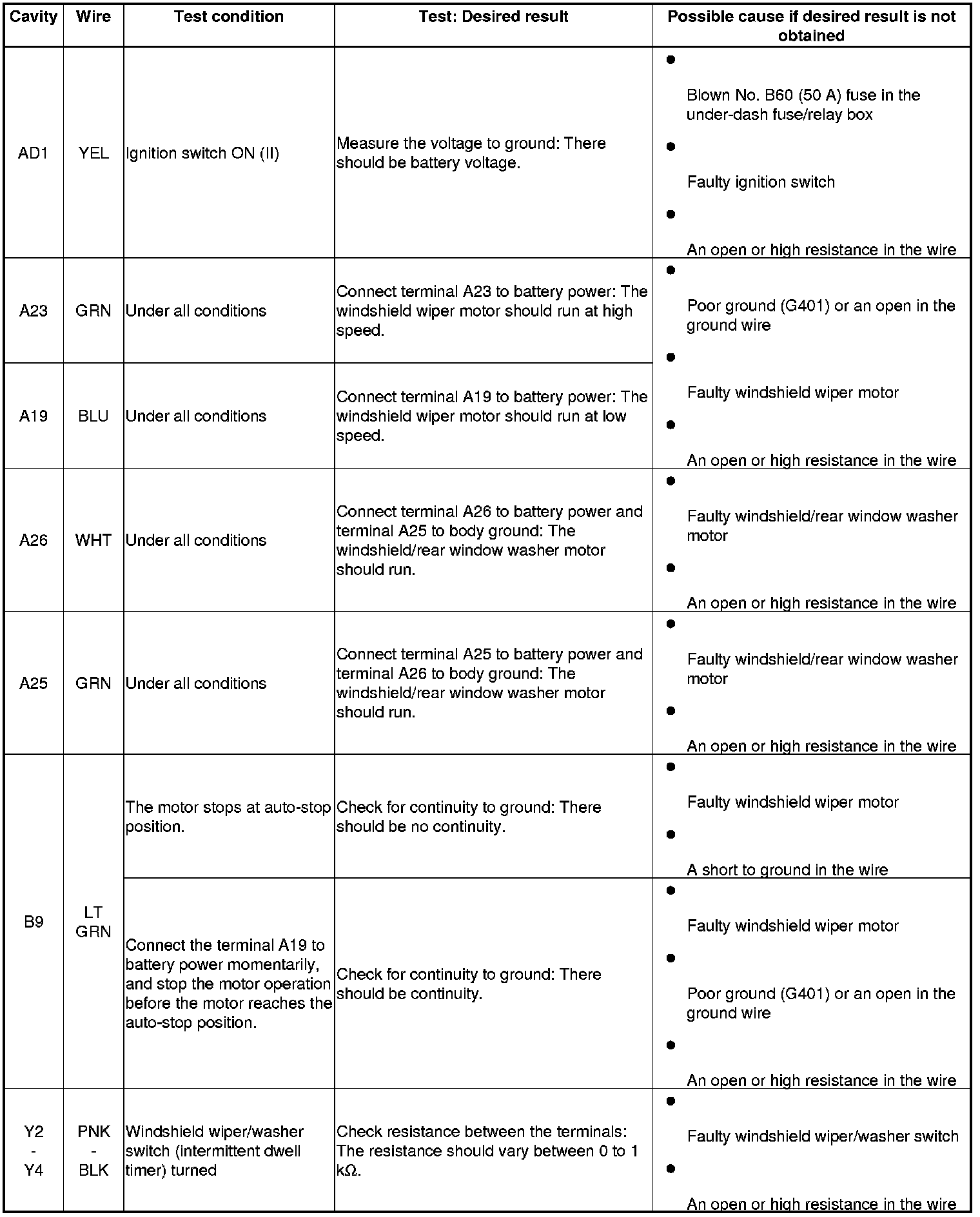

5. With the connectors still disconnected, do the following input tests:

- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 6.

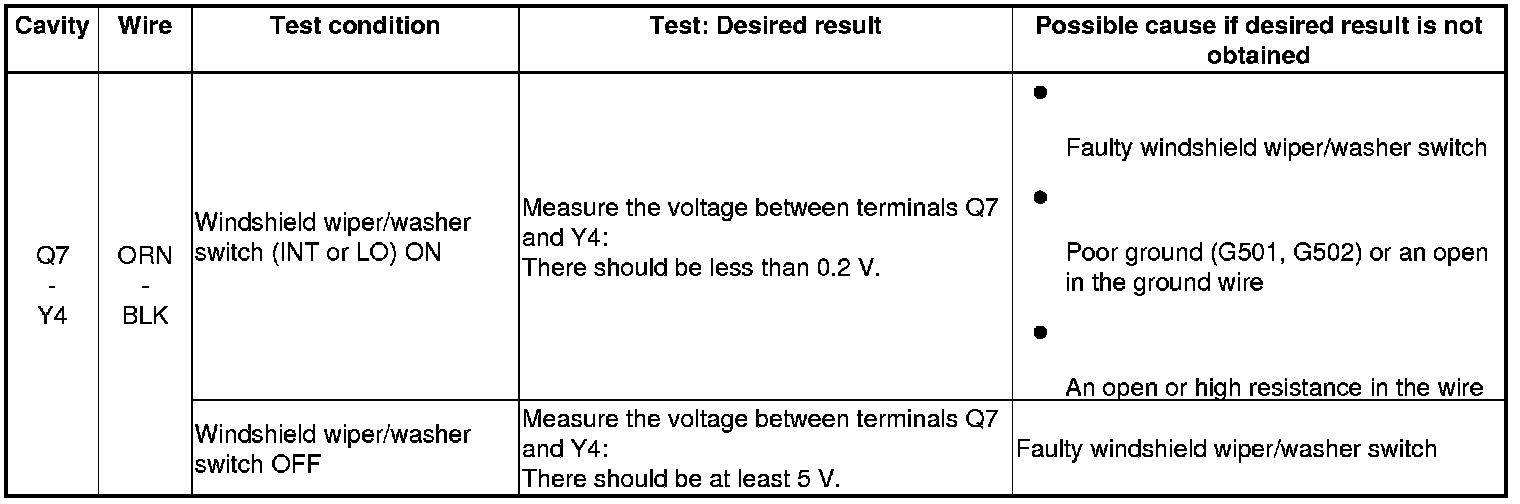

6. Reconnect the connectors to the under-dash fuse/relay box, turn the ignition switch to ON (II), and do the following input tests:

- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, the MICU must be faulty; replace the under-dash fuse/relay box:
- USA models Under-Dash Fuse/Relay Box Removal And Installation (USA Models)
- Canada models Under-Dash Fuse/Relay Box Removal And Installation (Canada Models)









*: CVT models
