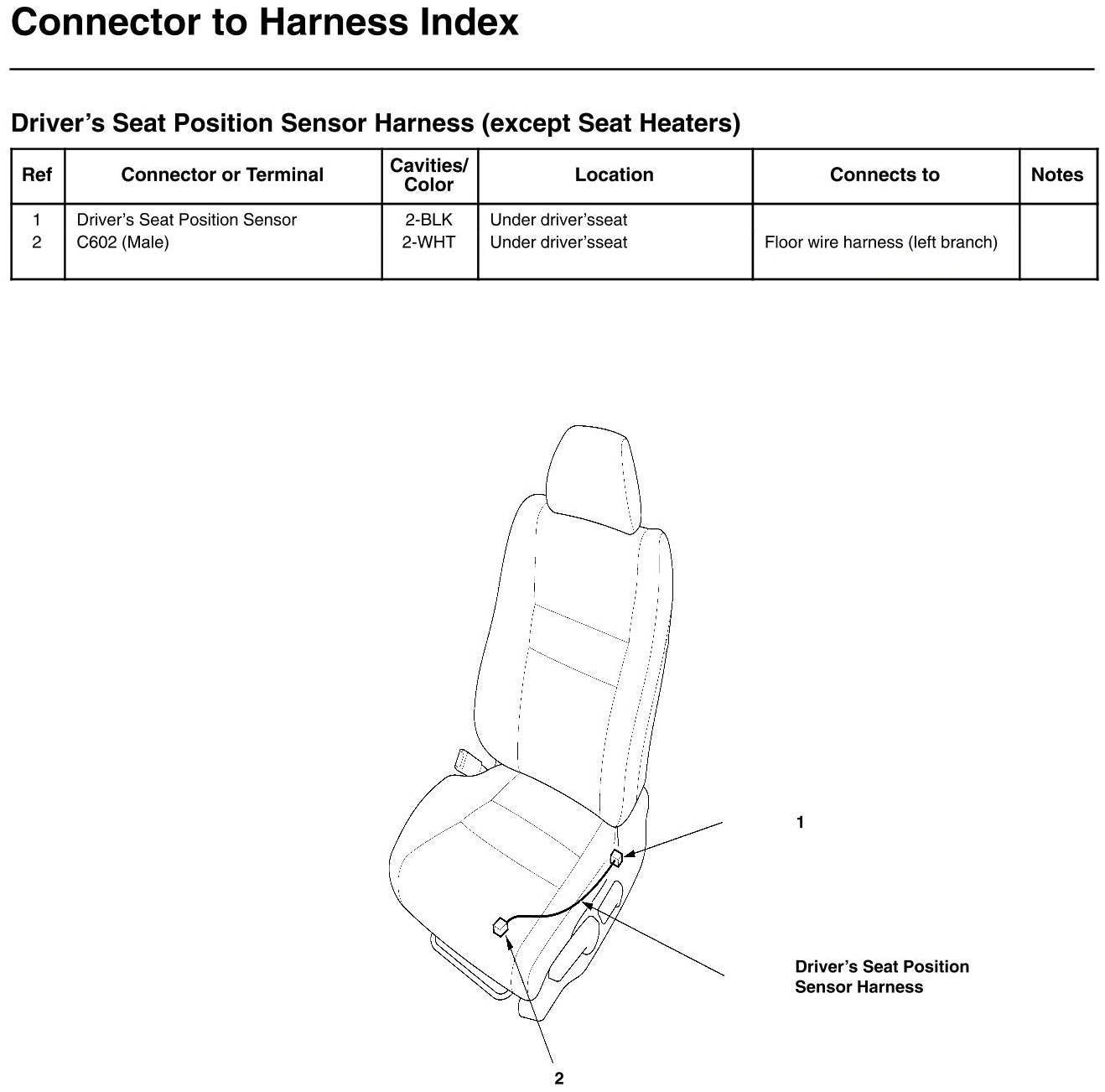

Driver's Seat Position Sensor Harness Connector And Harness Locations (Except Seat Heaters)
Driver's Seat Position Sensor Harness Connector And Harness Locations (Except Seat Heaters)
