Torque Specifications (GX Model)

Torque Specifications

NOTE:
Refer to the service data for the precautions and complete procedures.
Refer to the service data for the bolts/nuts not indicated here.
*1: Parts to be tightened in a particular order.
*2: Follow the service data procedures closely for torque, sequence, and special steps.

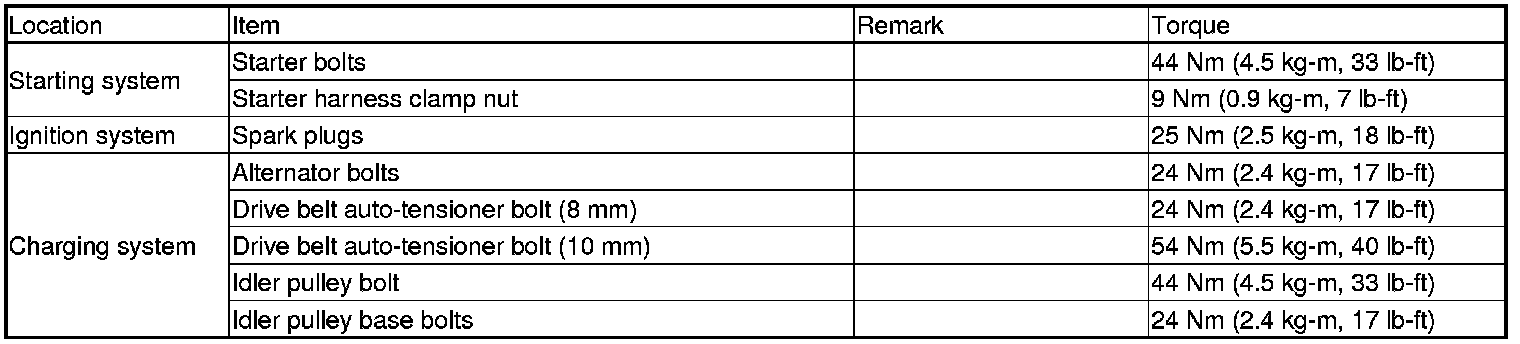

Engine Electrical





Engine Mechanical





Engine Cooling





Fuel and Emissions

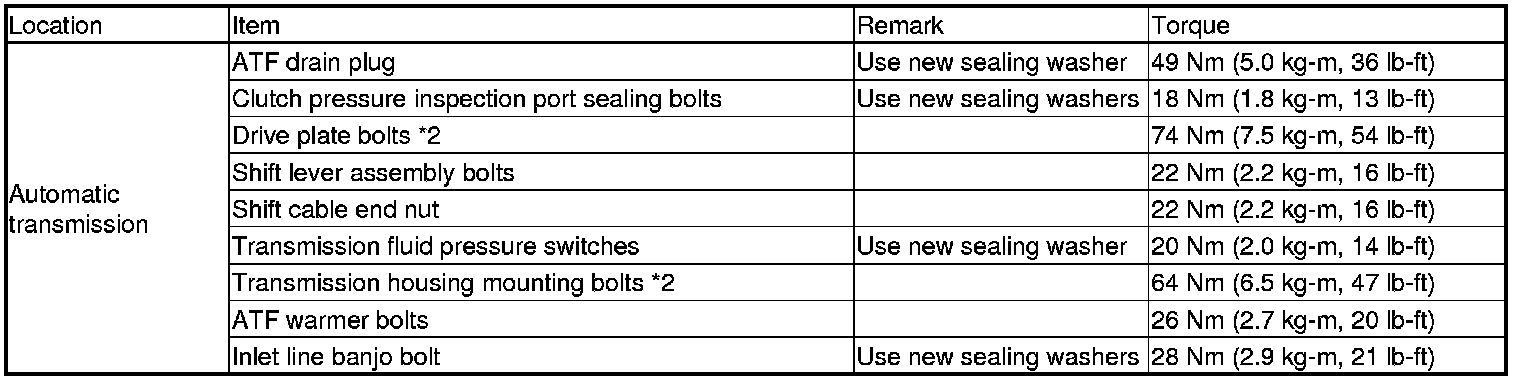

Automatic Transmission

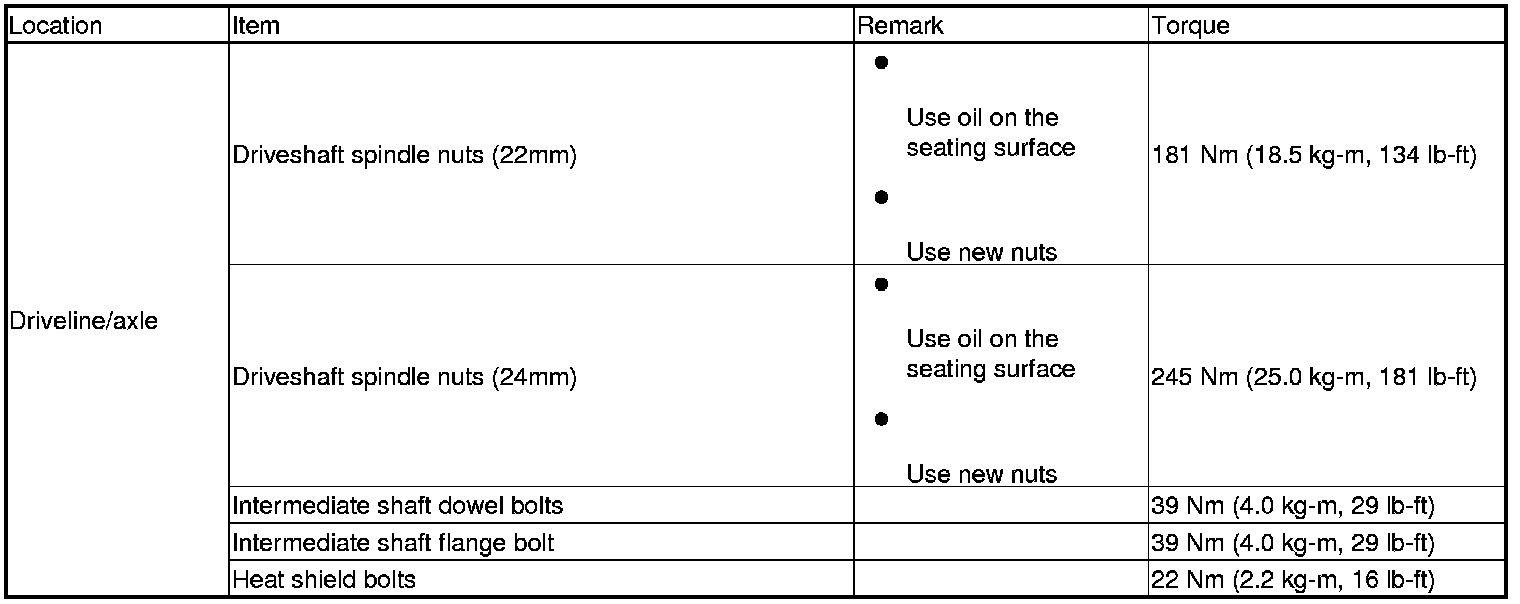

Driveline/Axle





Steering





Torque Specifications

NOTE:
Refer to the service data for the precautions and complete procedures.
Refer to the service data for the bolts/nuts not indicated here.
*1: Parts to be tightened in a particular order.
*2: Follow the service data procedures closely for torque, sequence, and special steps.

Suspension

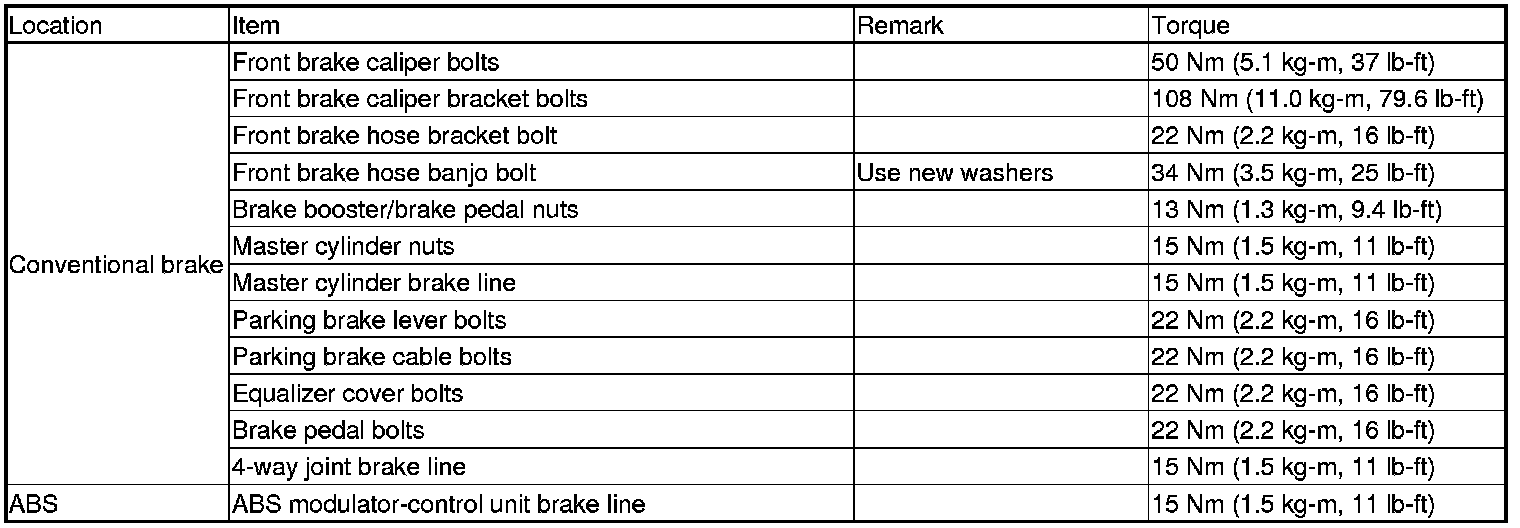

Brakes





Body

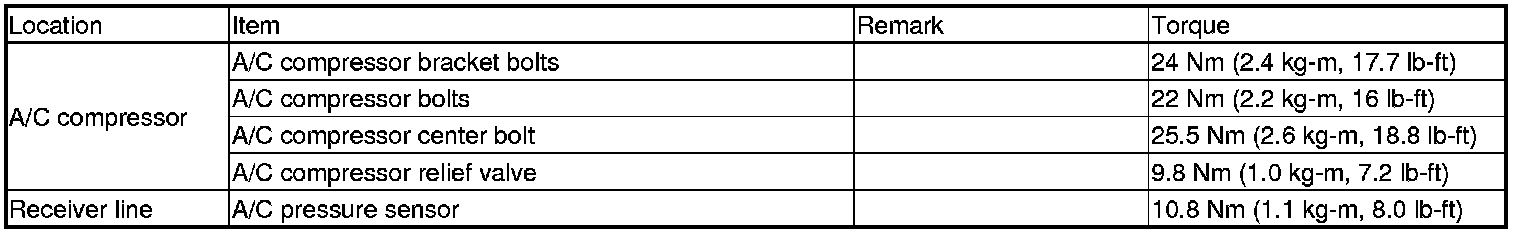

Heating, Ventilation, and Air Conditioning





Body Electrical
