Suspension: Locations




Front and Rear Suspension Component Location Index

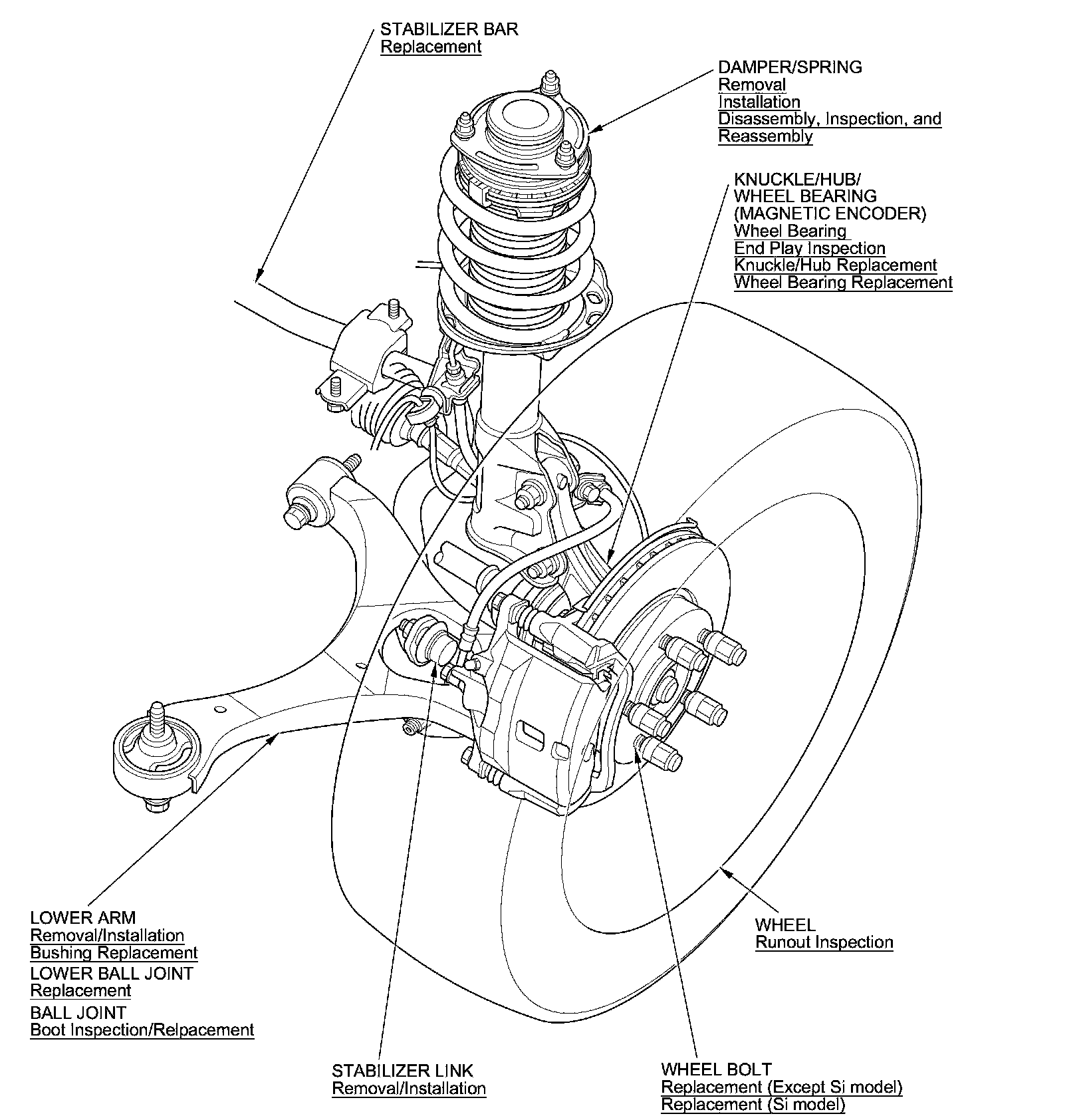

Front Suspension

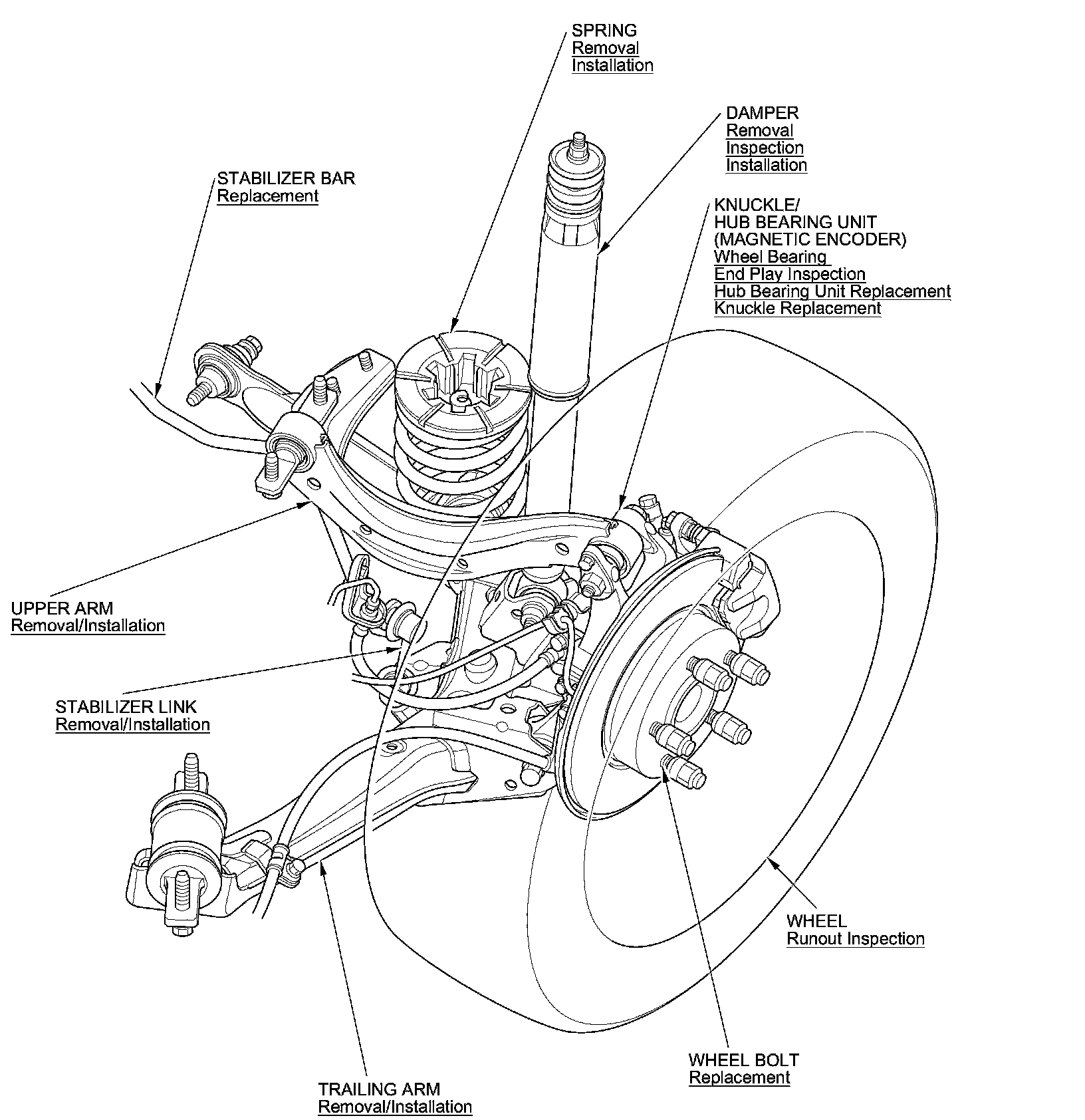

Rear Suspension - Disc Brake Type

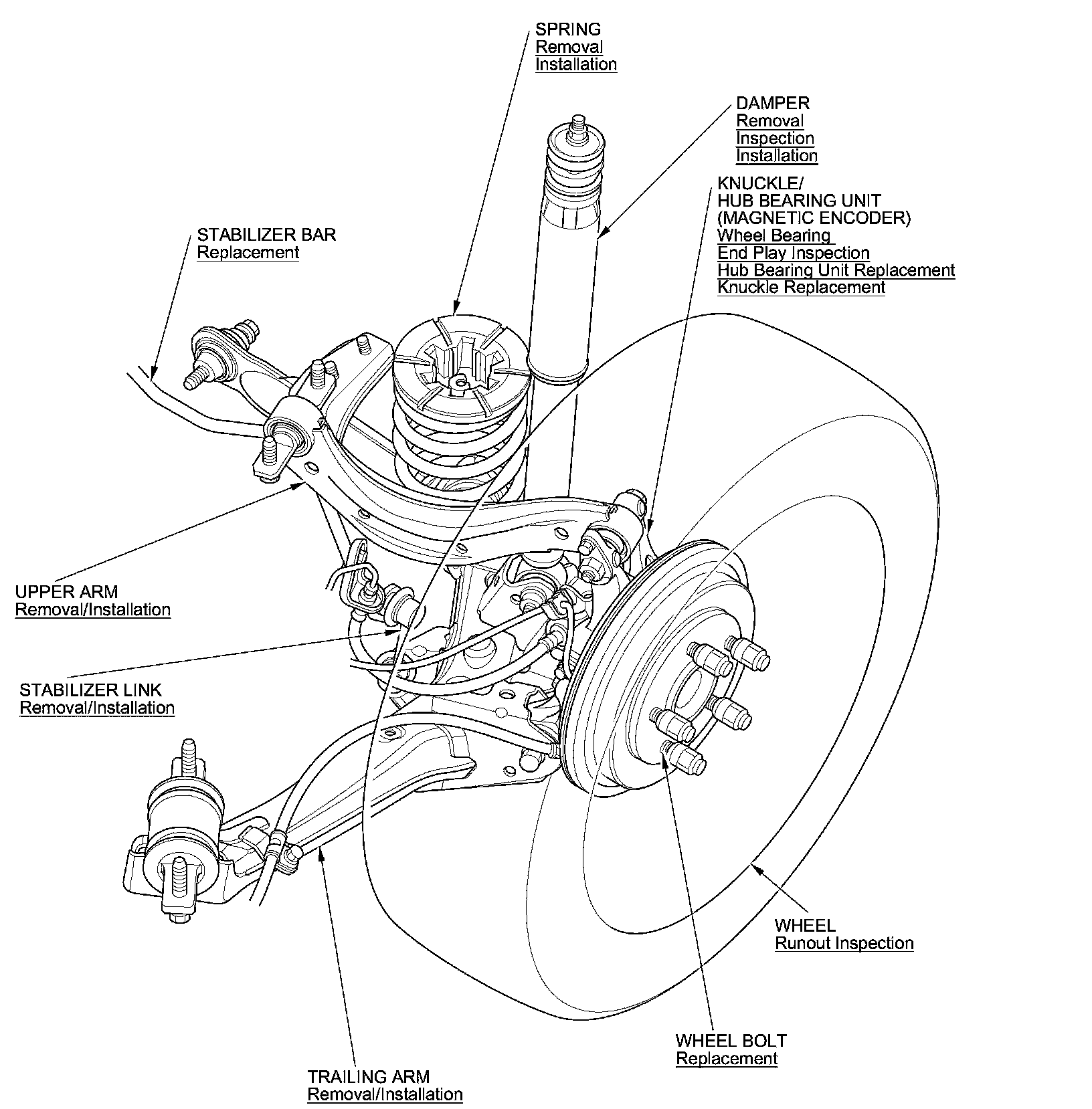

Rear Suspension - Drum Brake Type
