Wiper Arm: Adjustments

Wiper Arm/Nozzle Adjustment

Windshield (4-door)

Wiper Arms Stop Position

1. When the wiper arms stop at the park position, confirm that they are at the standard position.










Washer Nozzle Position

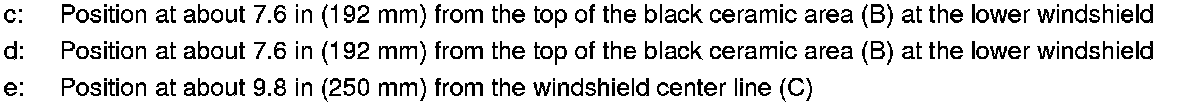

2. When you turn on the washer(s), confirm 50 % or more of the washer fluid lands within the spray area. If the spray area is not within the standard positions, adjust the nozzle(s).
