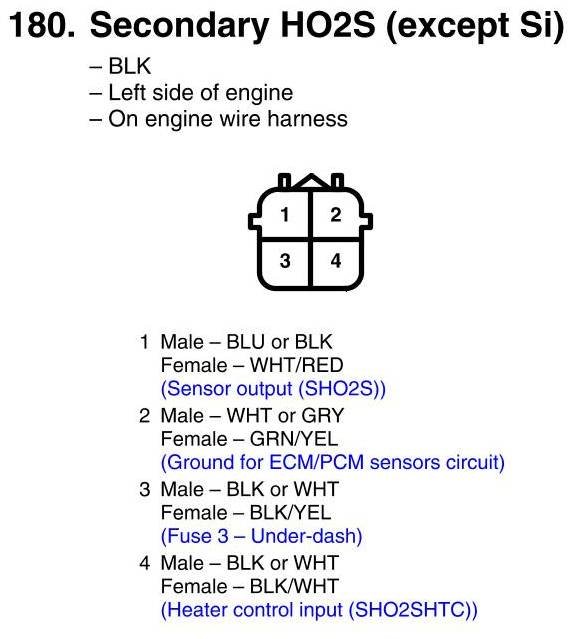

View 180 - Secondary HO2S Connector View (Except Si)
View 180 - Secondary HO2S Connector View (Except Si)
