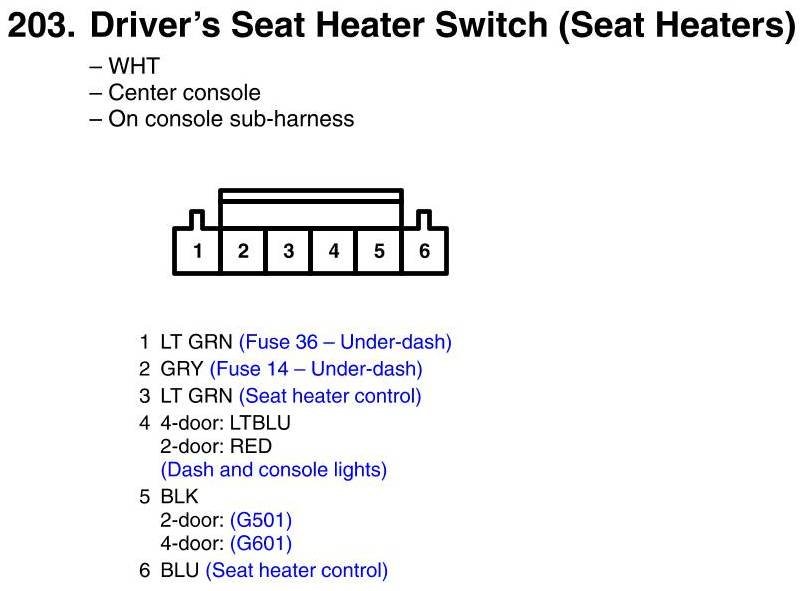

View 203 - Seat Heater Switch, Drivers Connector View (Seat Heaters)
View 203 - Seat Heater Switch, Drivers Connector View (Seat Heaters)
