USB Harness




Connector and Harness Locations

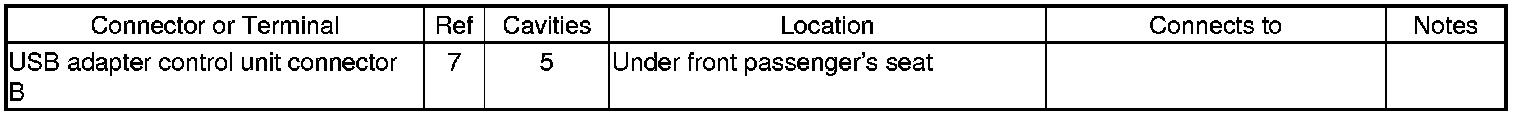

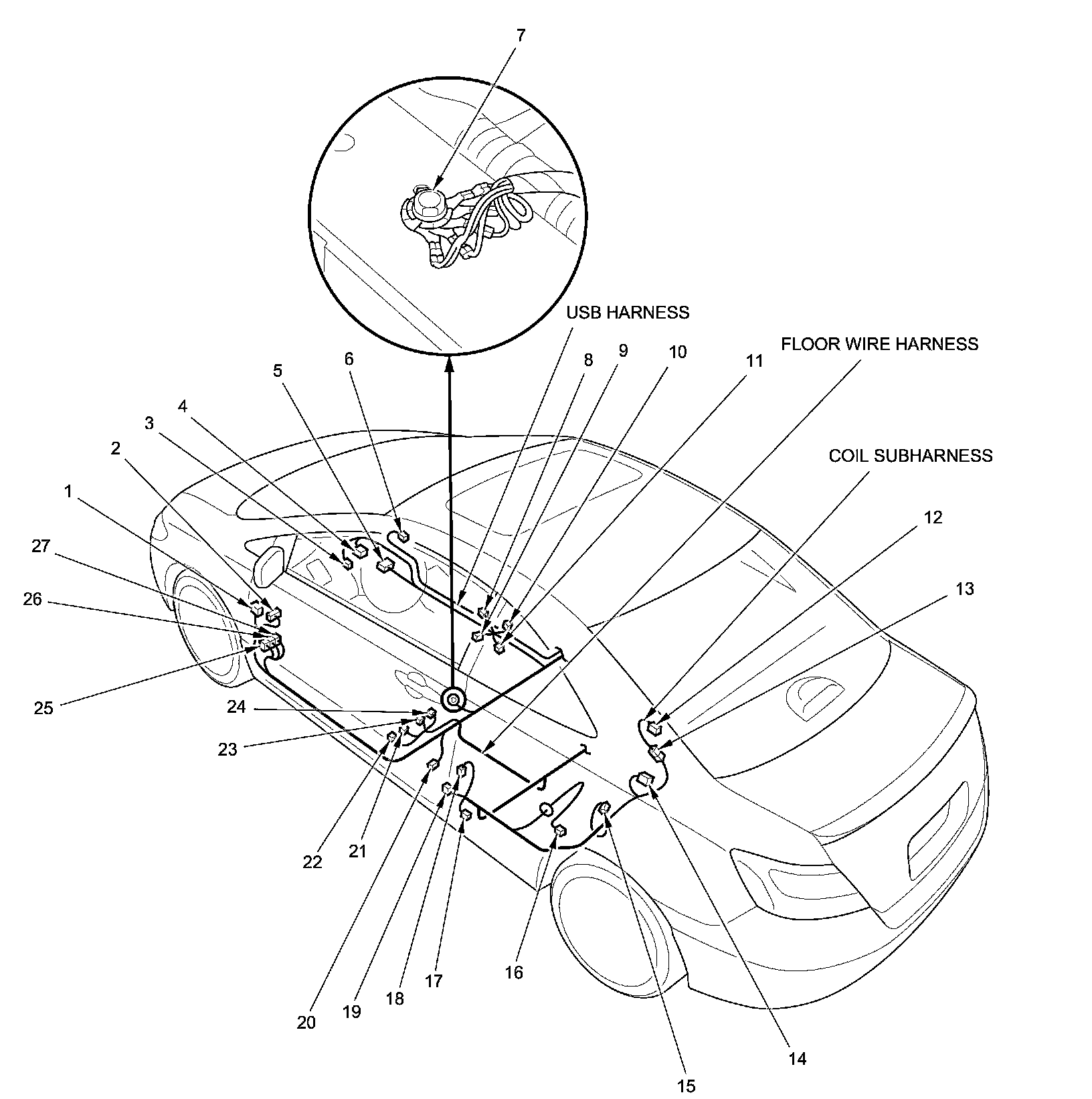

USB Harness (Left branch) ('09-11 4-door models)










USB Harness (Right branch) ('09-11 4-door models)

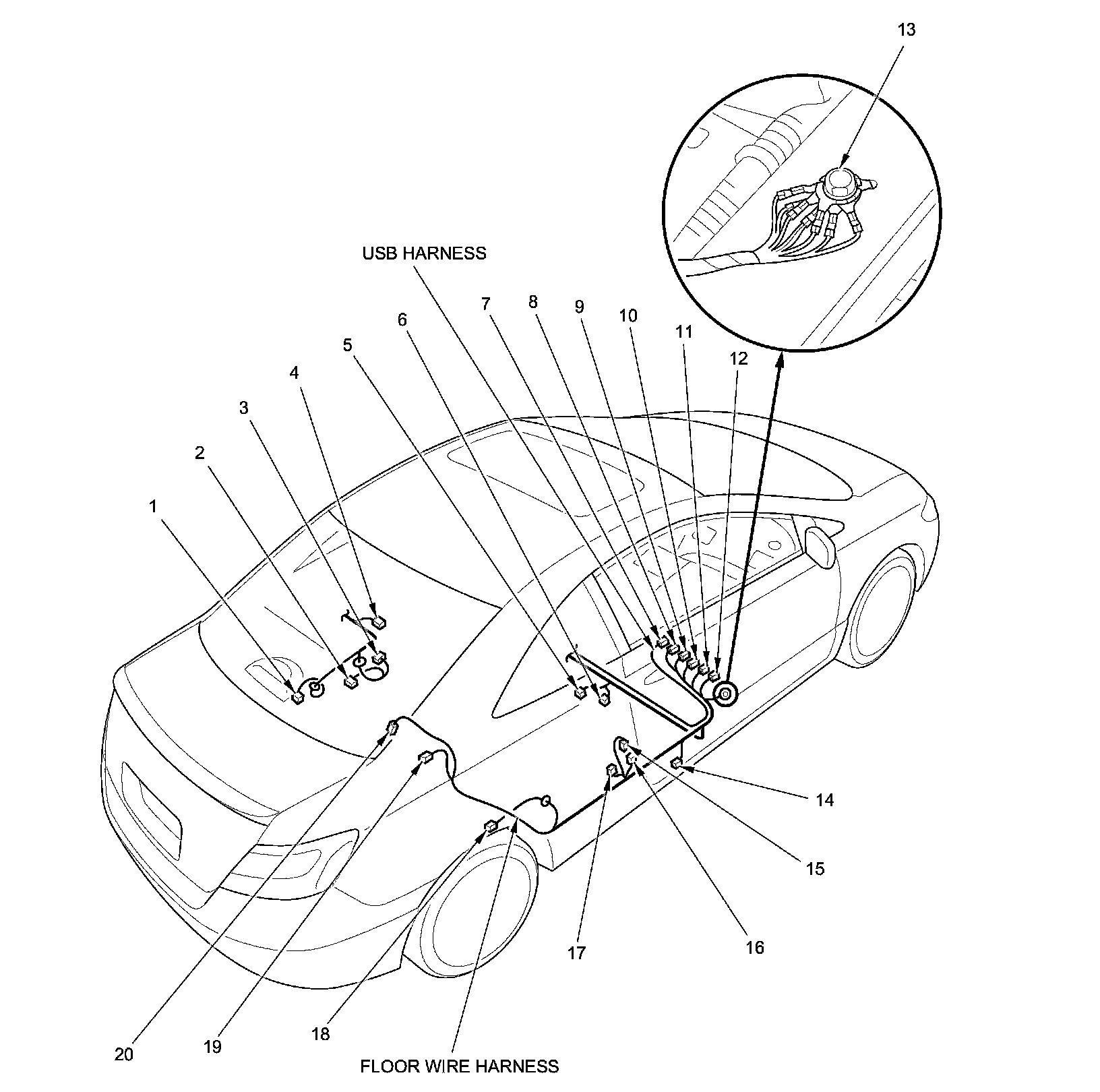

USB Harness (Left branch) ('09-11 2-door models)










USB Harness (Right branch) ('09-11 2-door models)
