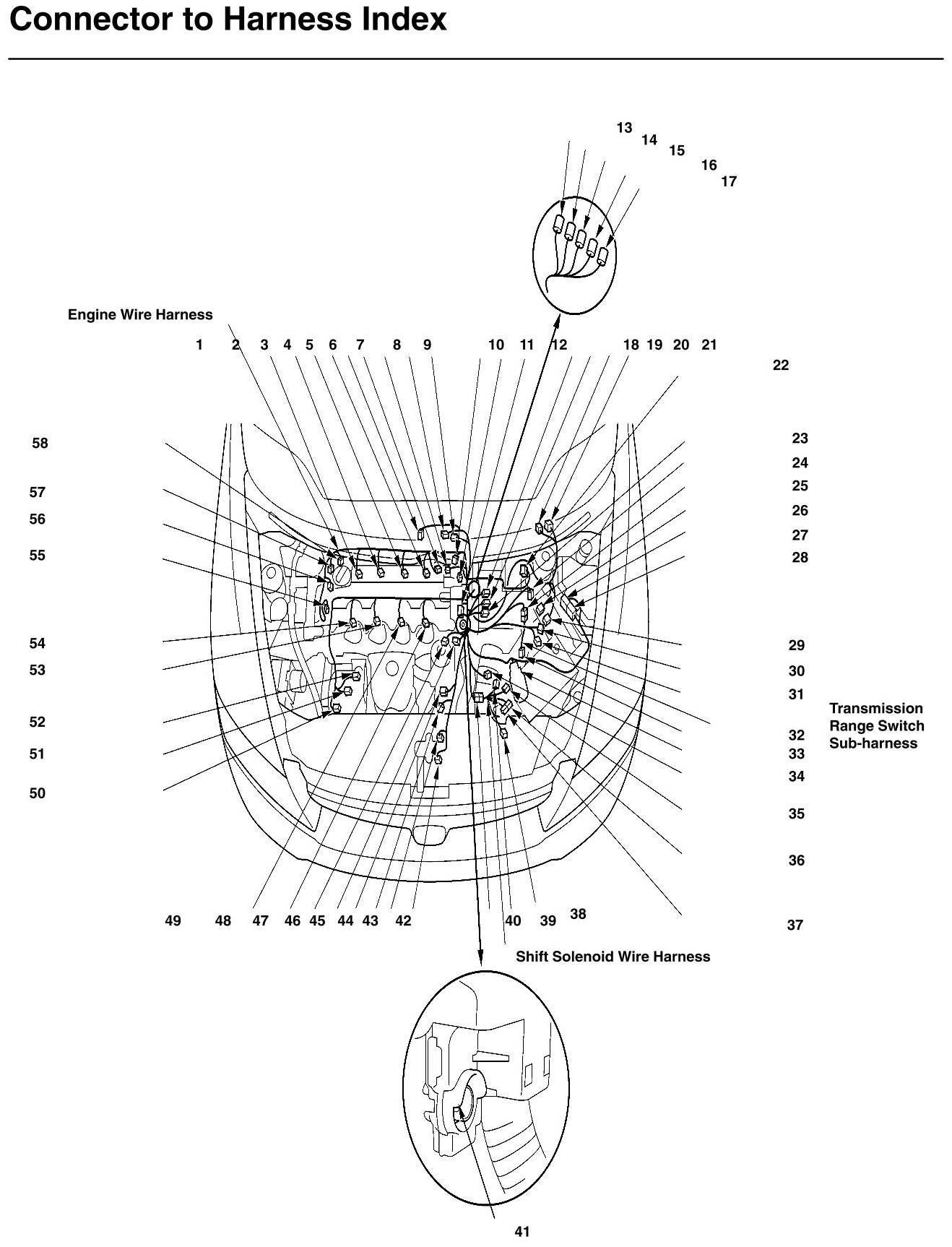

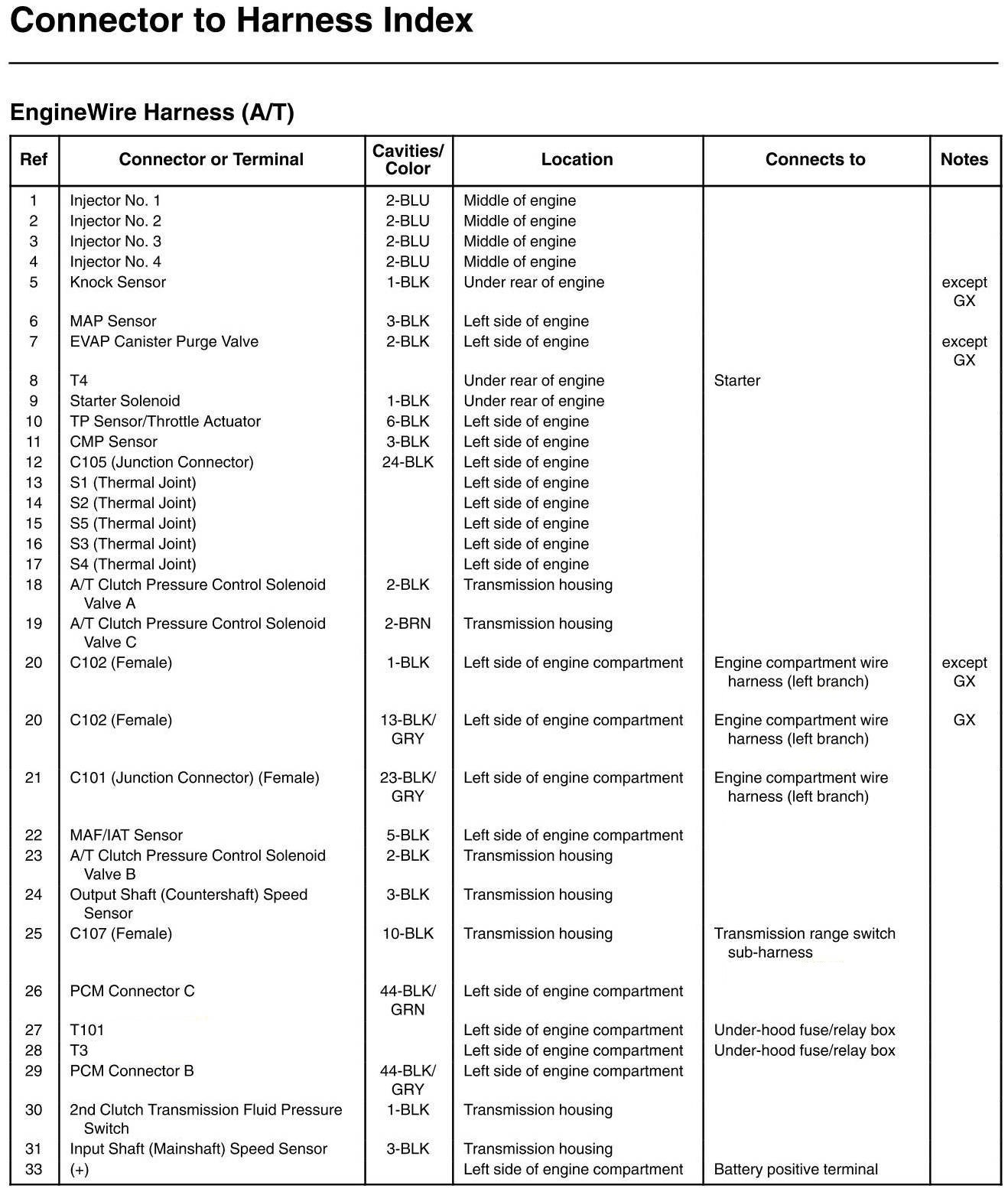

Engine Wire Harness, Shift Solenoid Wire Harness, And Transmission Range Switch Sub-harness Connector And Harness Locations

Engine Wire Harness, Shift Solenoid Wire Harness, And Transmission Range Switch Subharness Connector And Harness Locations (A/T)
