Connector And Harness Locations
>>
USB Harness
USB Harness

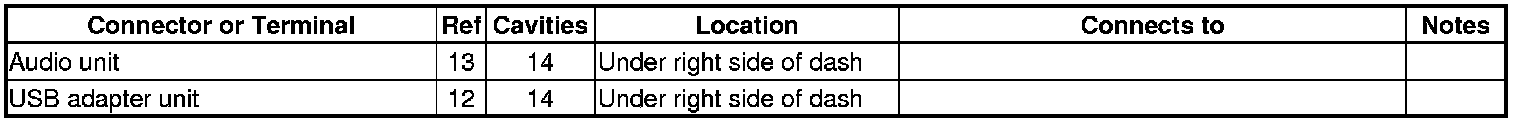

Connector and Harness Locations

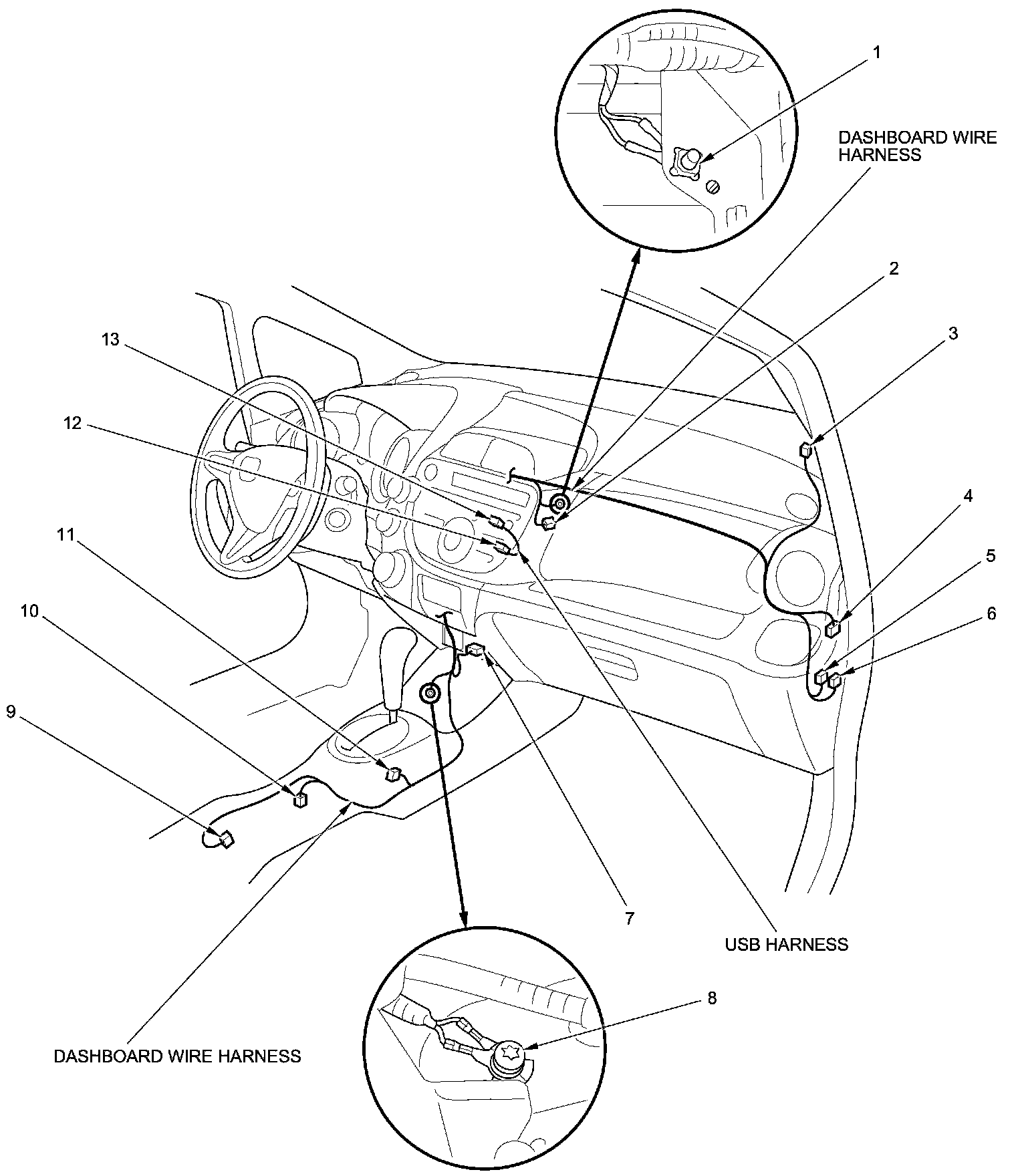

USB Harness (Without Navigation)
