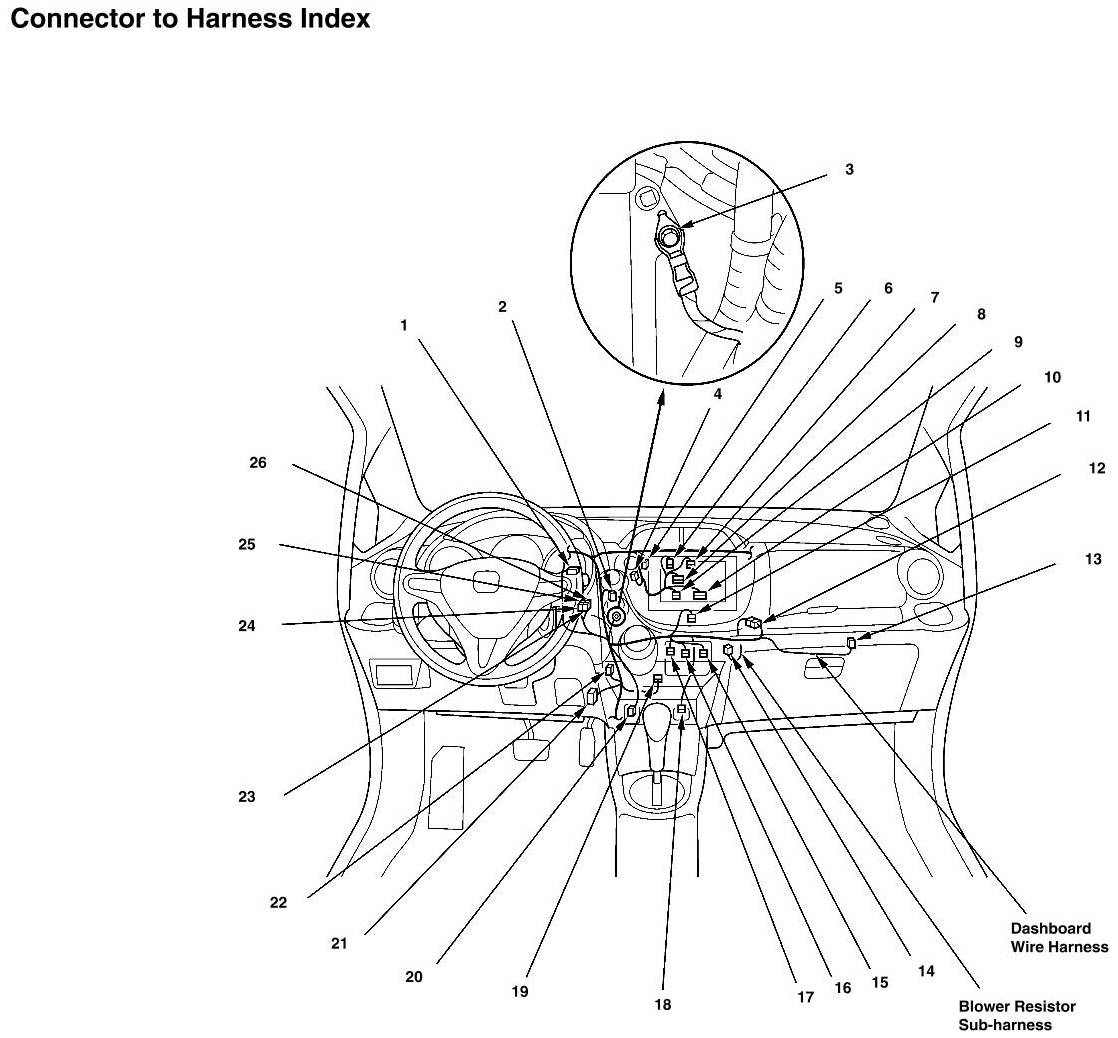

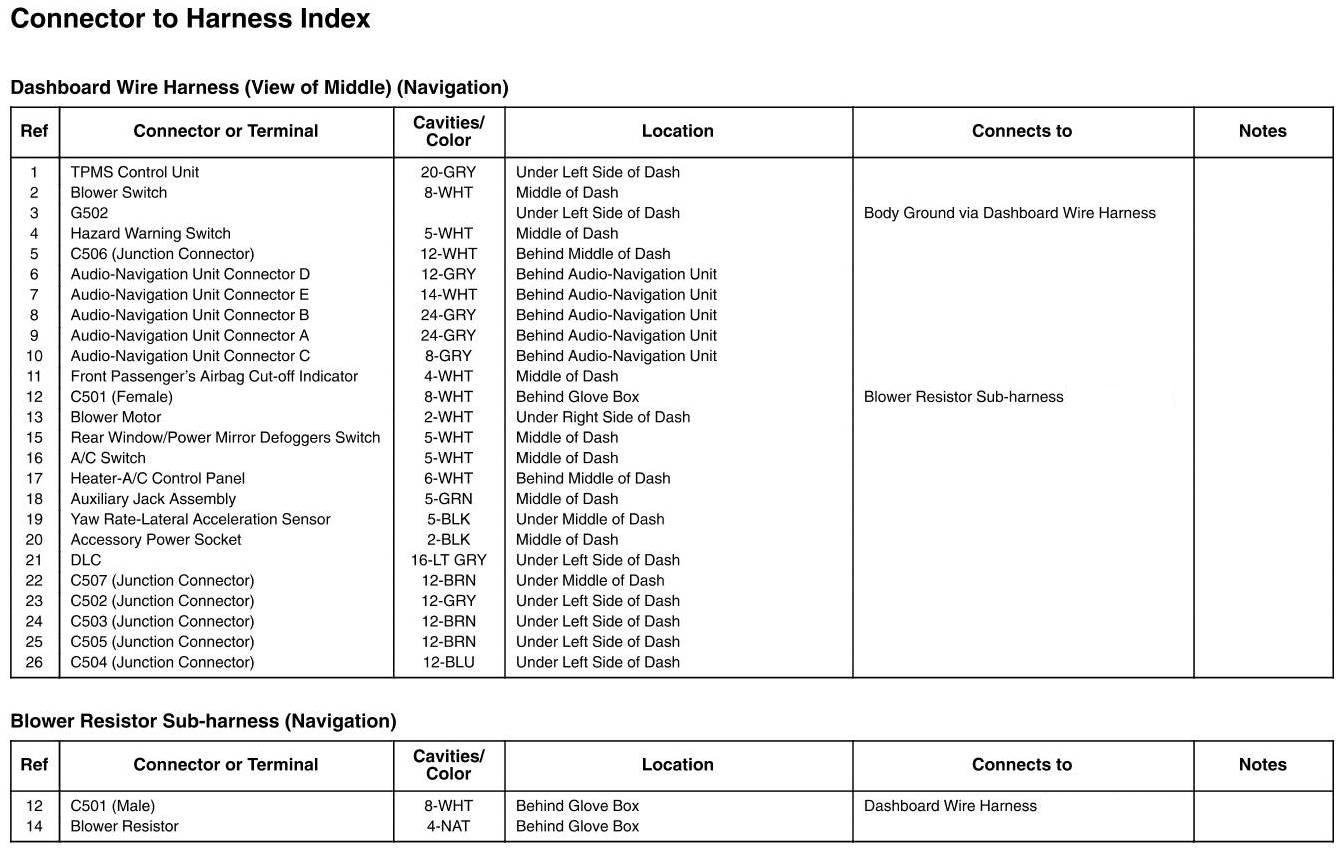

Dashboard Wire Harness (View Of Middle) And Blower Resistor Sub-Harness Connector and Harness Locations (Navigation)
Dashboard Wire Harness (View Of Middle) And Blower Resistor Sub-Harness Connector and Harness Locations (Navigation)
