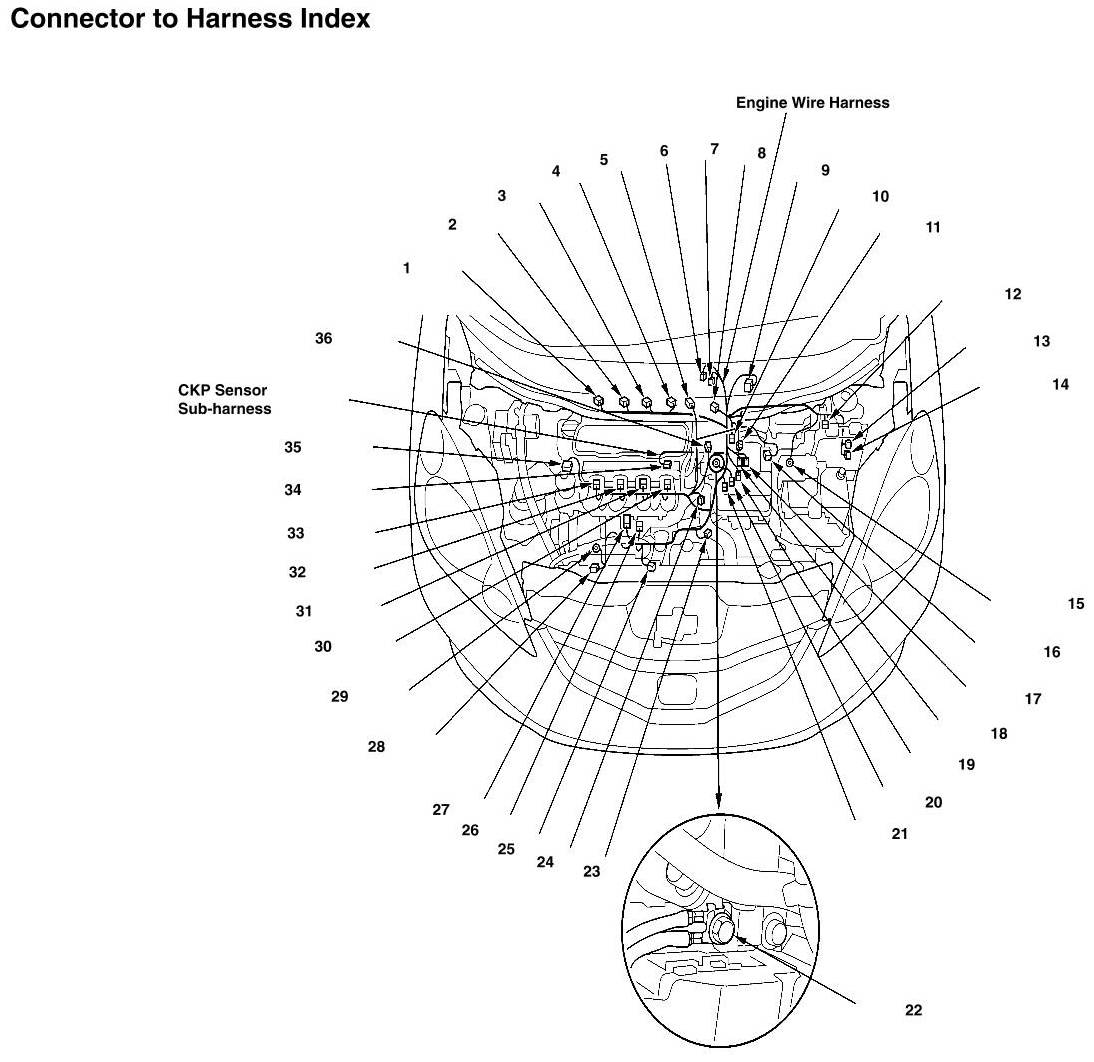

Engine Wire Harness (Engine Side) and CKP Sensor Sub-Harness Connector and Harness Locations (A/T)
Engine Wire Harness (Engine Side) and CKP Sensor Sub-Harness Connector and Harness Locations (A/T)
