Home >> Honda >> 2011 >> Fit L4-1.5L >> Repair and Diagnosis >> Diagrams >> Harness >> Engine Wire Harness and CKP Sensor Sub-Harness Connector and Harness Locations (M/T)

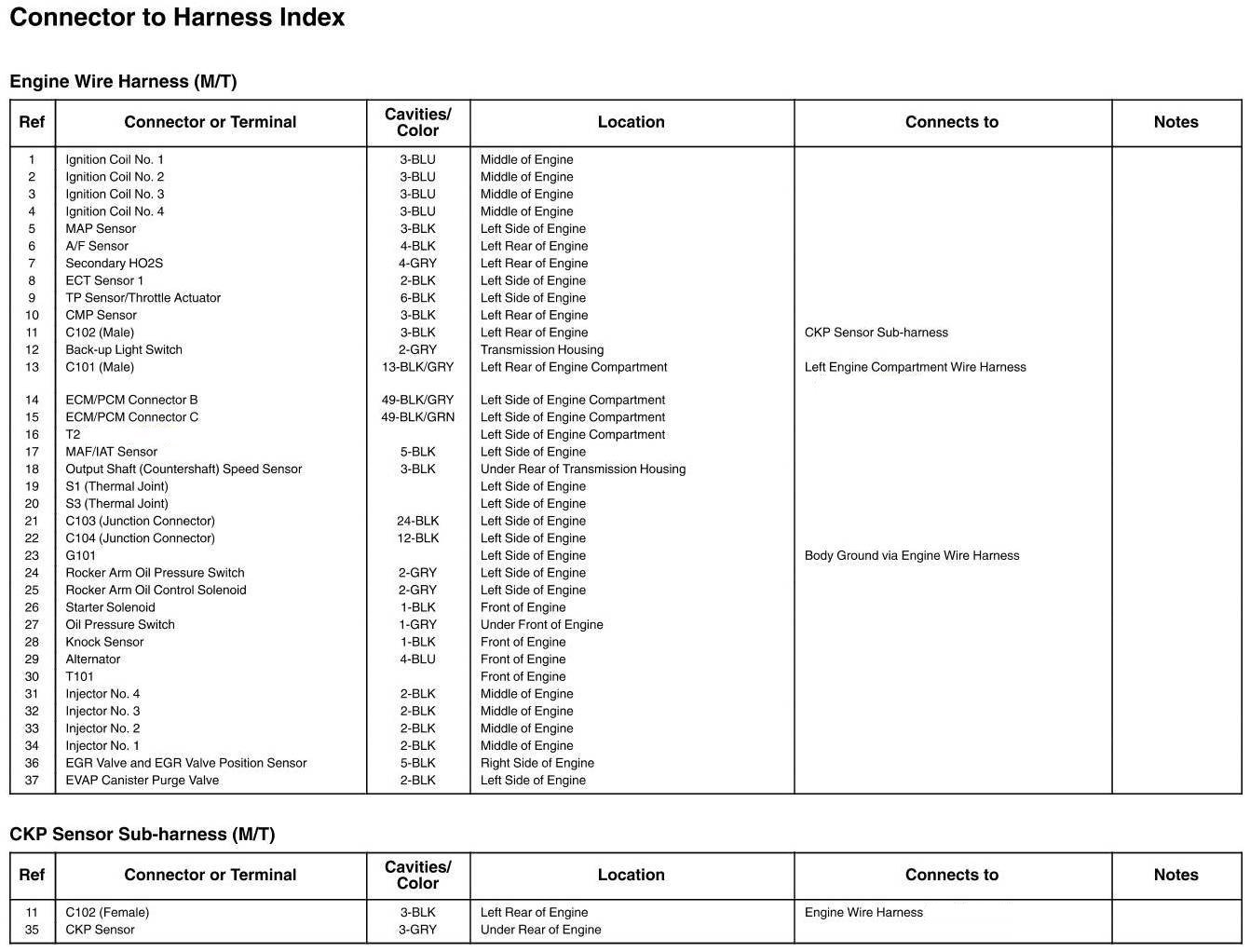

Engine Wire Harness and CKP Sensor Sub-Harness Connector and Harness Locations (M/T)
