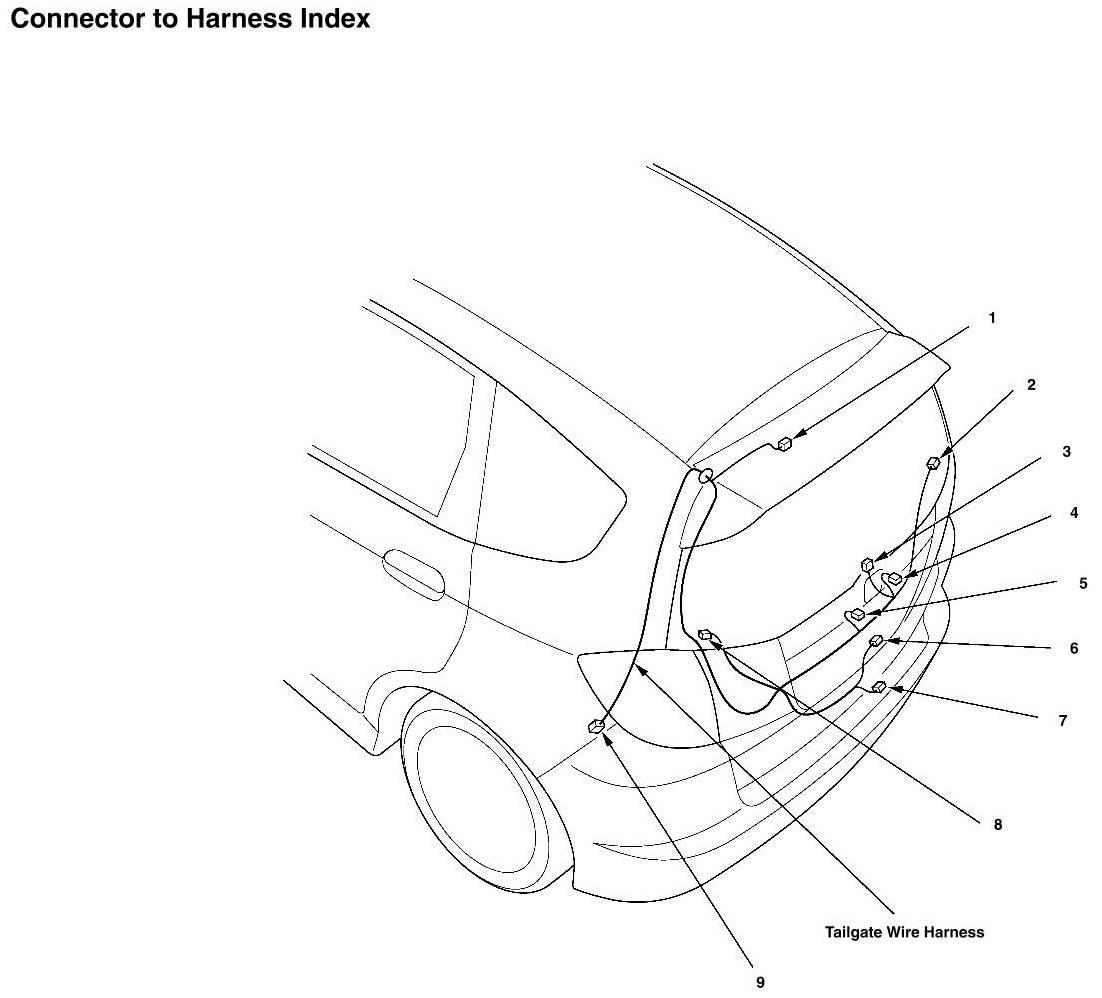

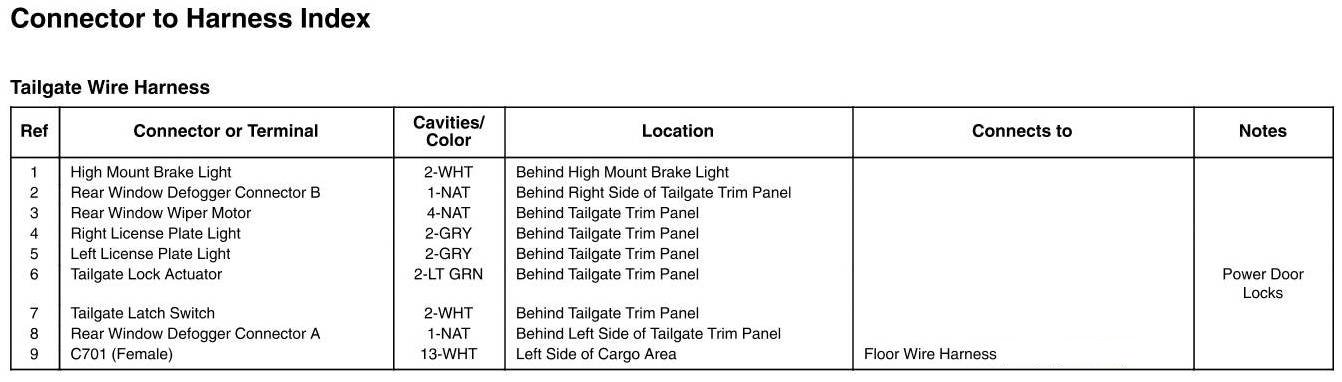

Tailgate Wire Harness Connector And Harness Locations
Tailgate Wire Harness Connector And Harness Locations
