Exterior Parts Removal / Installation

Exterior Parts Removal/Installation

NOTE:
- To adjust the alignment of the hood, the doors, and the tailgate, refer to Service Procedures.

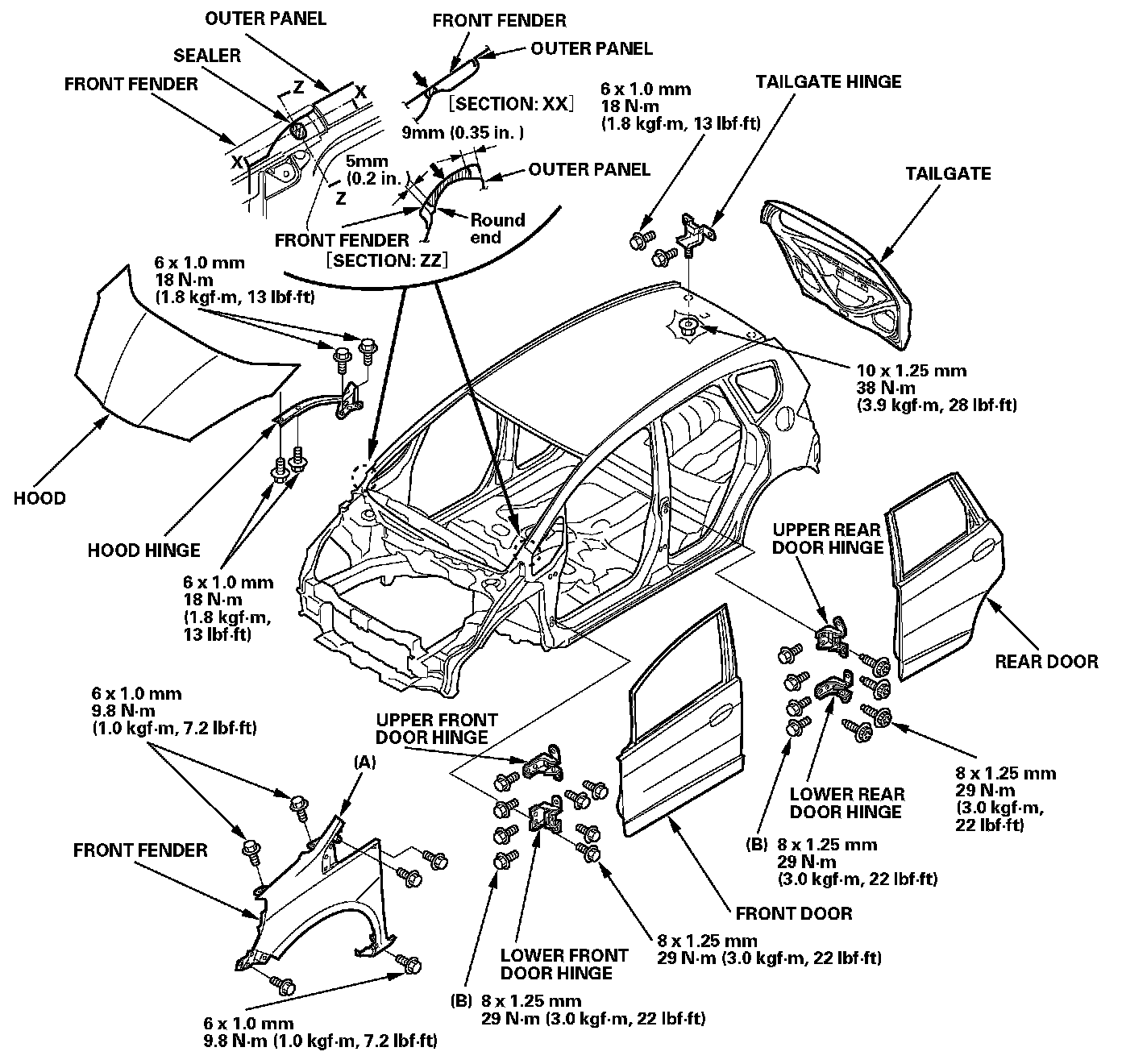

- When removing the front fender, do not deform the upper portion (A) of the front fender.
- When adjusting the door in or out, replace the mounting bolts (B) (90102-SFA-305).
- Apply spot sealer to the mating surface, then install the front fender, the hood, the doors, the tailgate, and the hinges.
- Before attaching the front fender, apply sealer to the mating surface of the front fender and the front pillar outer panel.
