Torque Specifications

Torque Specifications

Torque Specifications

NOTE
Refer to the S/M for the precautions and complete procedures.
Refer to the S/M for the bolts/nuts not indicated here.
*1: Parts to be tightened in a particular order.
*2: Follow the S/M procedures closely for torque, sequence, and special steps.

Engine Electrical

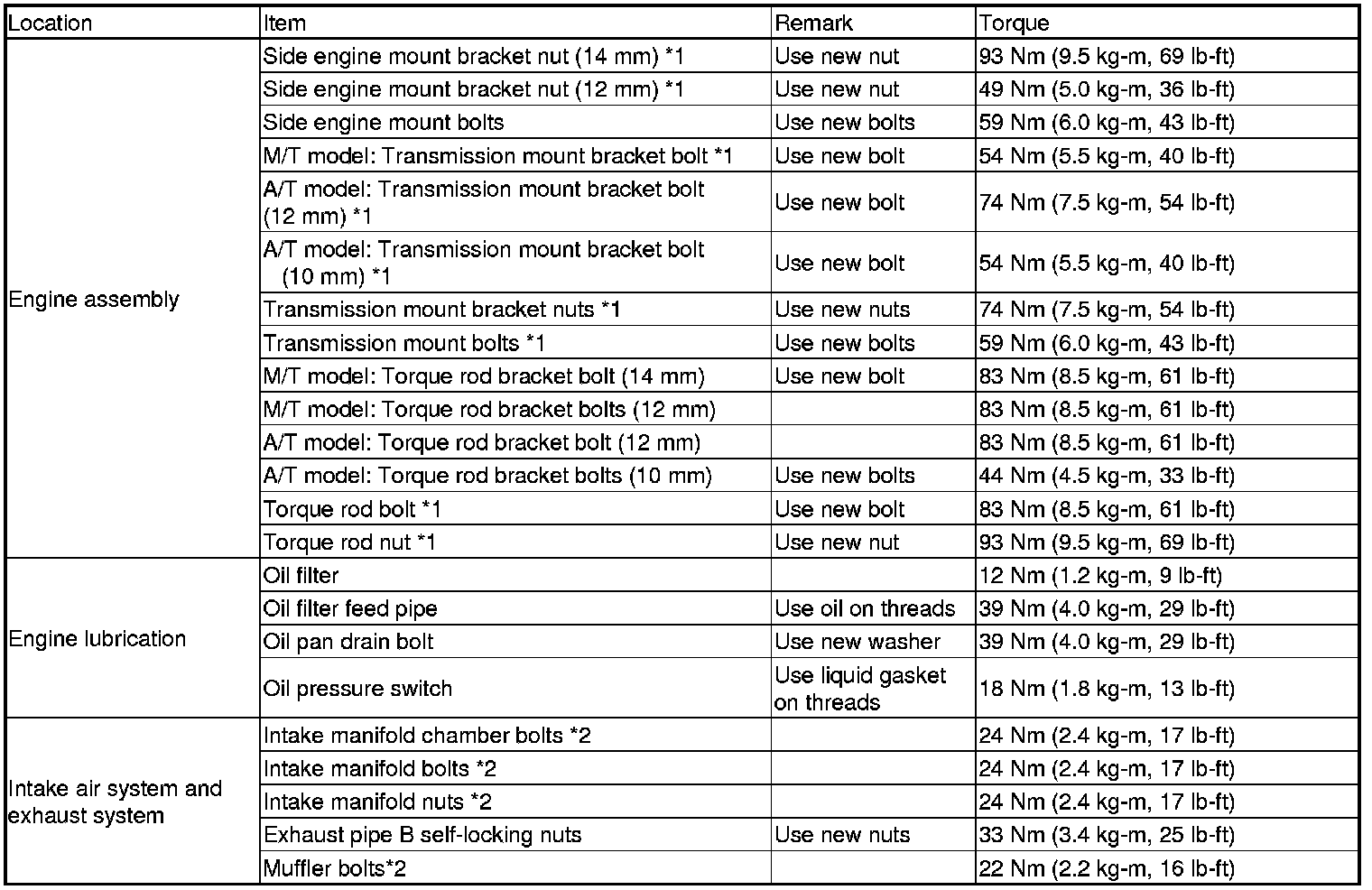

Engine Mechanical





Engine Cooling

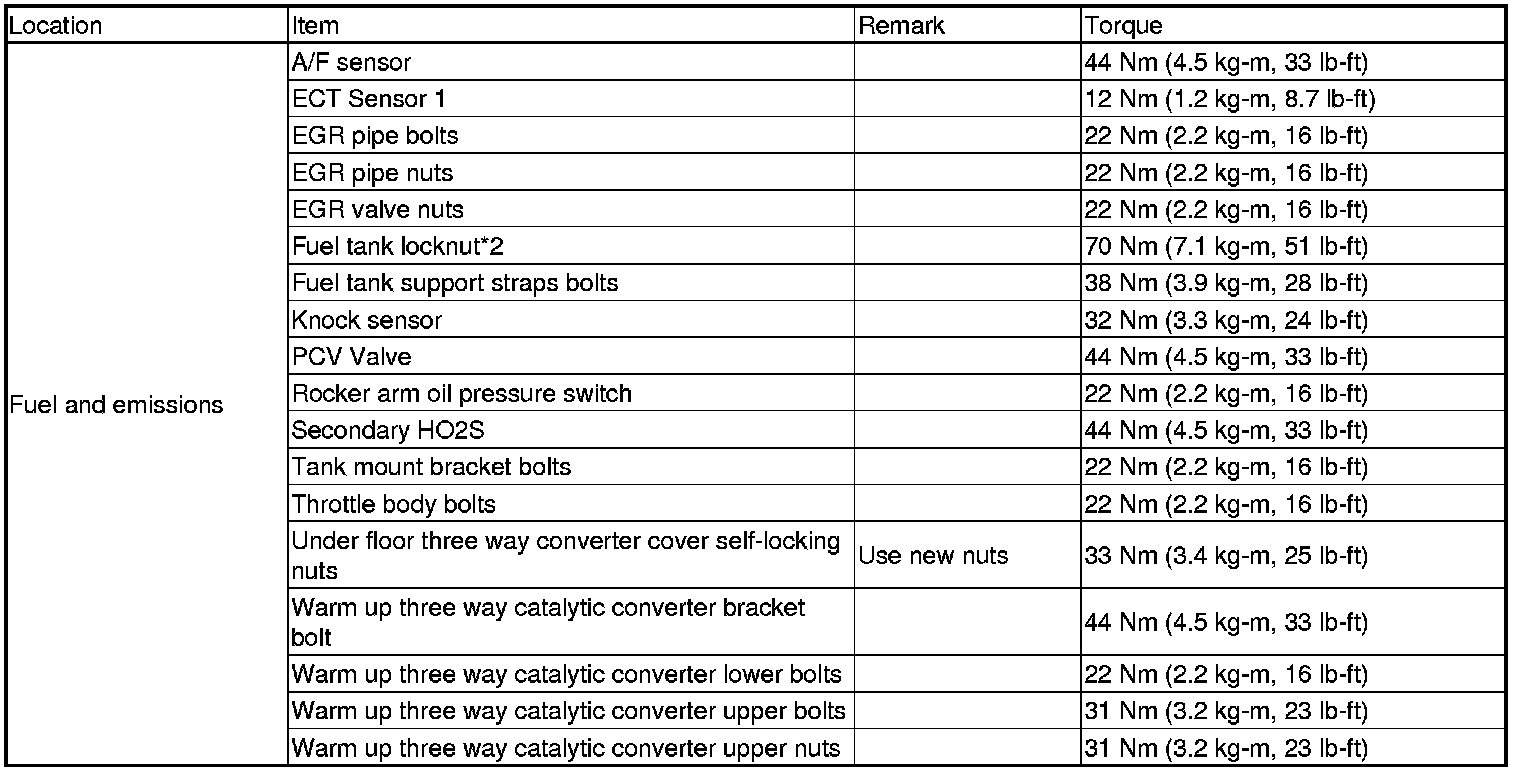

Fuel Emissions





Clutch





Torque Specifications

NOTE
Refer to the S/M for the precautions and complete procedures.
Refer to the S/M for the bolts/nuts not indicated here.
*1: Parts to be tightened in a particular order.
*2: Follow the S/M procedures closely for torque, sequence, and special steps.

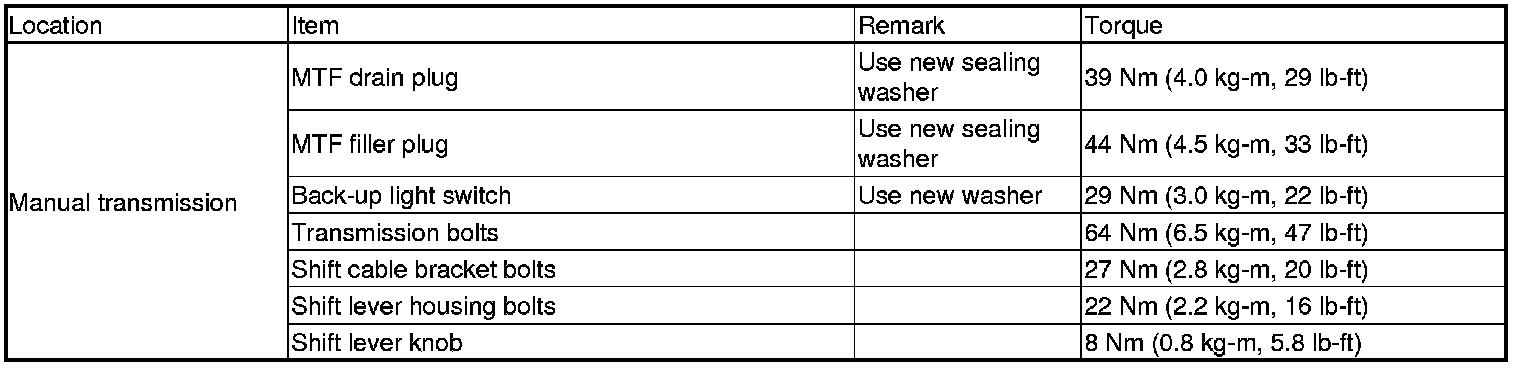

Manual Transmission and M/T Differential





Automatic Transmission

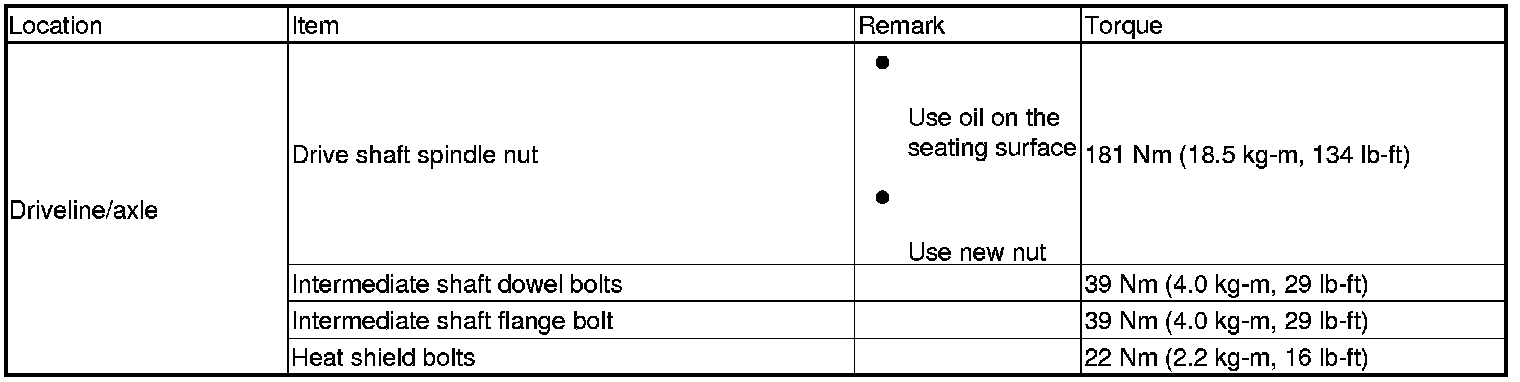

Driveline/Axle

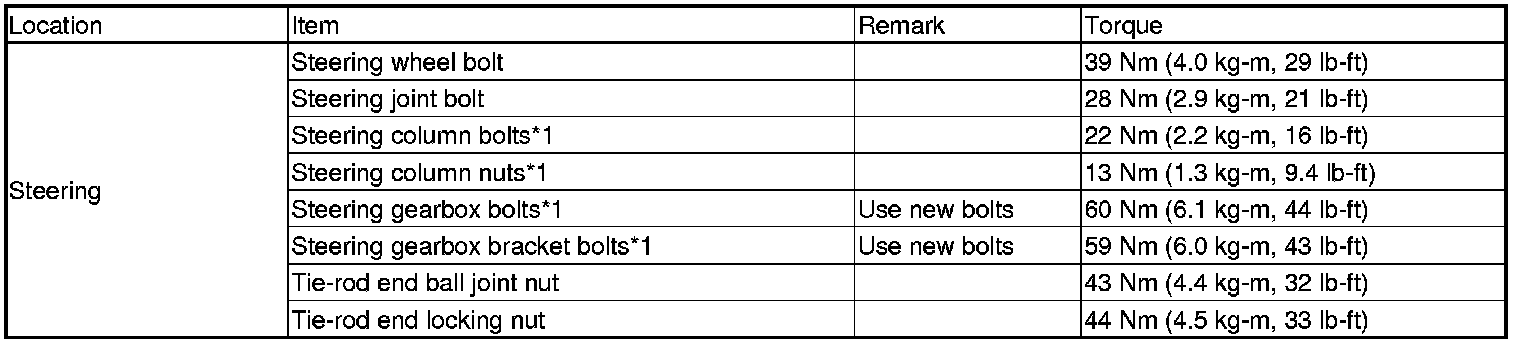

Steering





Suspension





Brakes





Torque Specifications

NOTE
ꭤRefer to the S/M for the precautions and complete procedures.
ꭤRefer to the S/M for the bolts/nuts not indicated here.
*1: Parts to be tightened in a particular order.
*2: Follow the S/M procedures closely for torque, sequence, and special steps.

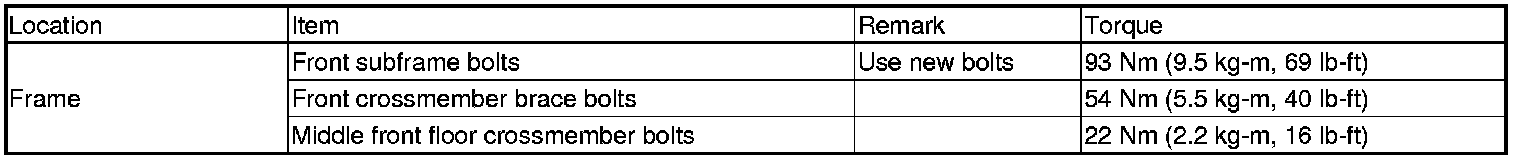

Body

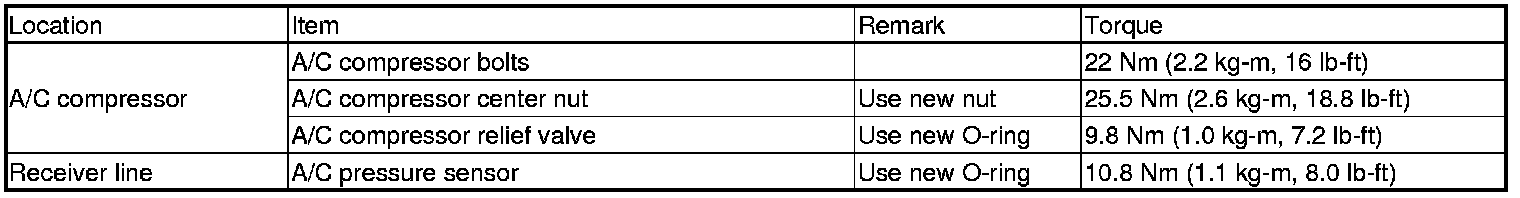

Heating, Ventilation, and Air Conditioning





Body Electrical
