Shift Indicator - CVT: Service and Repair

A/T Gear Position Indicator Panel Light Replacement

1. Remove the A/T gear position indicator panel trim A/T Gear Position Indicator Panel Trim Replacement (CVT).

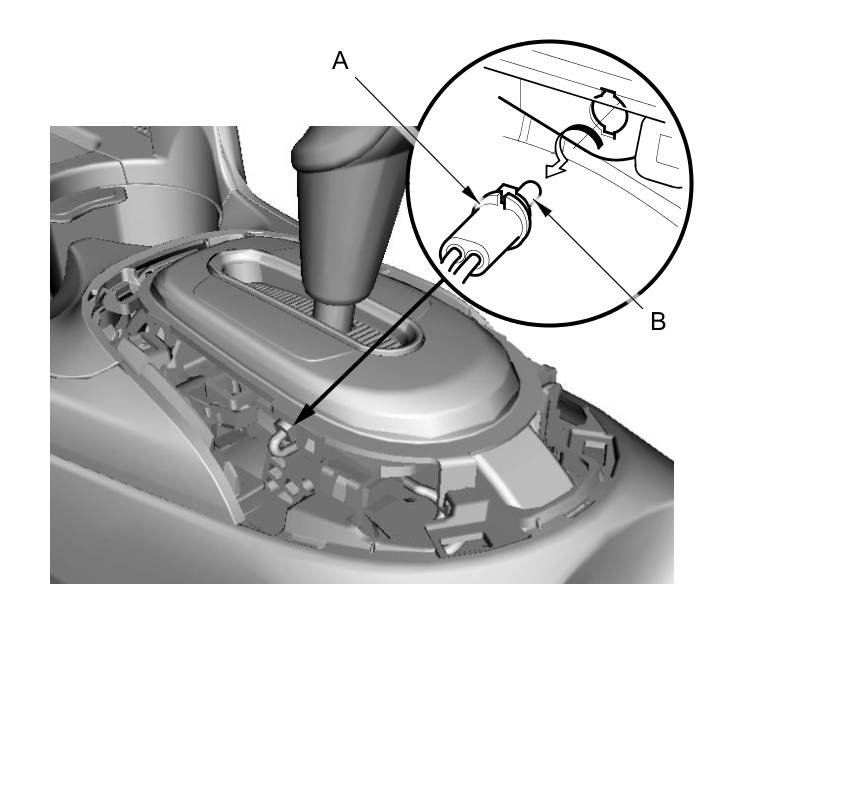

2. Remove the A/T gear position indicator panel light socket (A), and replace the A/T gear position indicator panel light bulb (B).






3. Install the A/T gear position indicator panel light socket (A).






4. Install the A/T gear position indicator panel trim A/T Gear Position Indicator Panel Trim Replacement (CVT).
