Center Mounted Brake Lamp: Service and Repair

High Mount Brake Light Replacement

1. Open the hatch.

2. Remove the hatch lower trim Interior Trim Removal / Installation - Hatch Area.

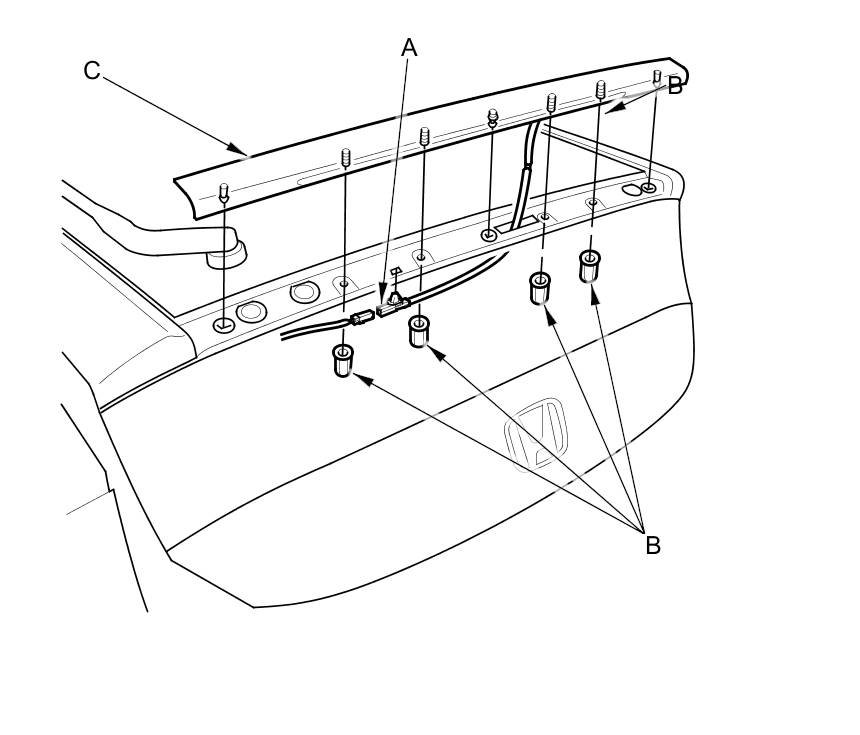

3. Disconnect the 2P connector (A).

High Mount Brake Light: LED





4. Remove the four nuts (B) and high mount brake light (C).

5. Install the high mount brake light in the reverse order of removal.
