Hazard Warning Switch Test/Replacement

Hazard Warning Switch Test/Replacement

1. Remove the center panel:

- With audio-navigation unit Audio-Navigation Unit Removal/Installation
- With audio unit Audio Unit Removal / Installation

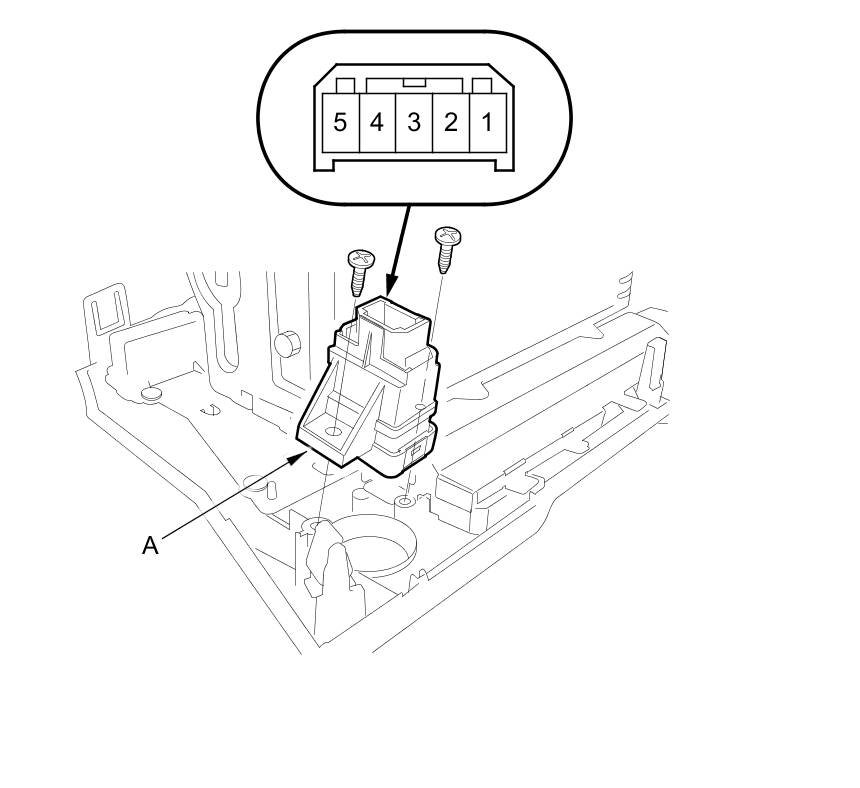

2. Remove the two screws and the hazard warning switch (A).

NOTE : The illustration shows with audio unit.

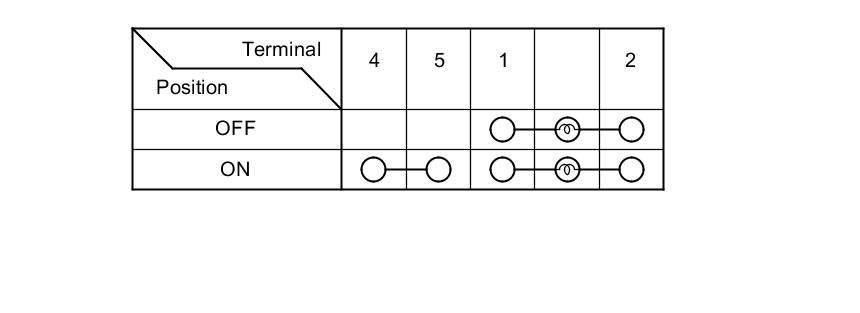

3. Check for continuity between the terminals in each switch position according to the table.

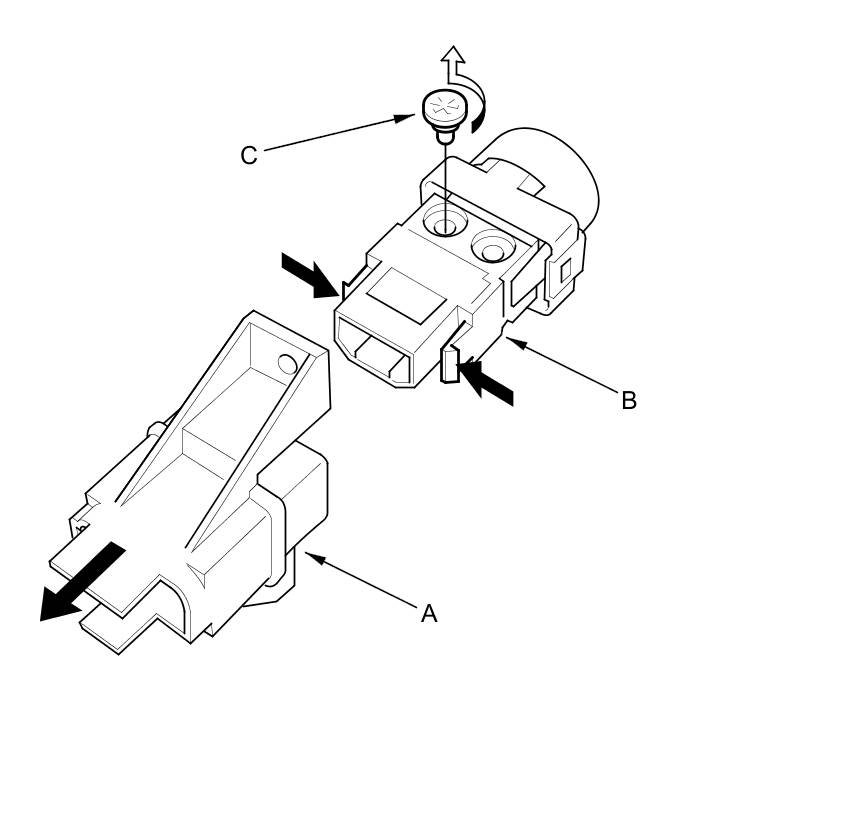

4. If the continuity is not as specified, remove the cover (A), and replace the switch (B) or bulb (C).





5. Install the switch in the reverse order of removal.
