Connector And Harness Locations
>>
CKP Sensor Subharness
CKP Sensor Subharness

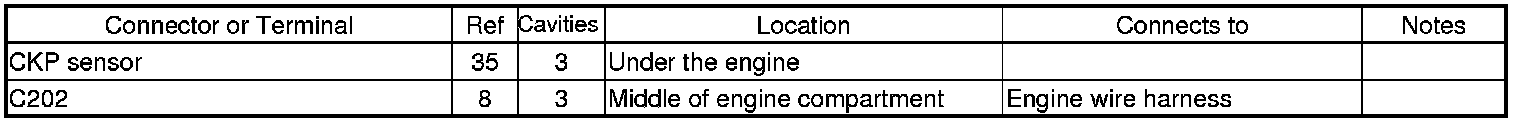

Connector and Harness Locations

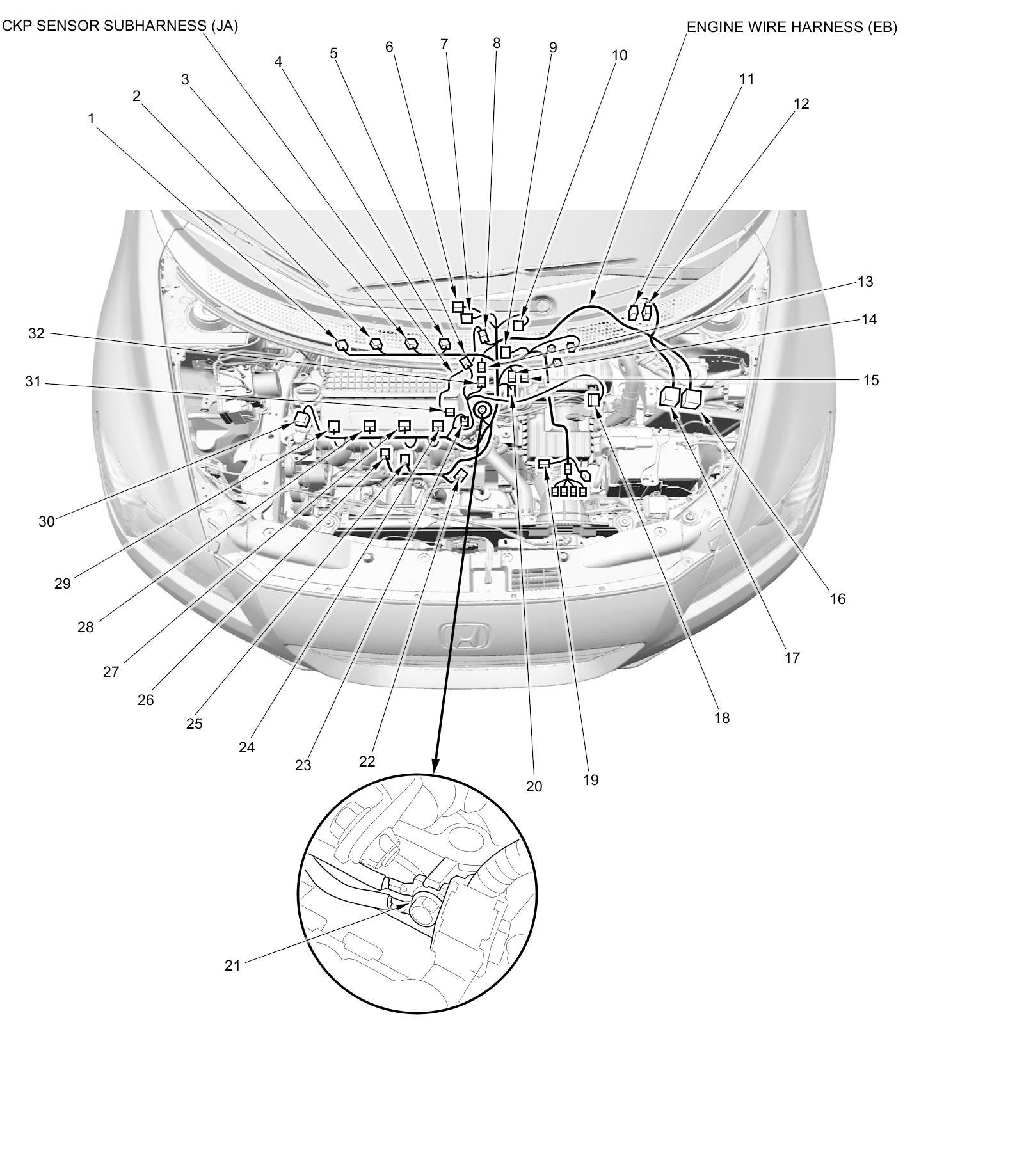

CKP Sensor Subharness (M/T) (JA)
CKP Sensor Subharness (CVT) (JA)
