Locations
>>
Connector And Harness Locations
>>
Engine Ground Cable
Engine Ground Cable

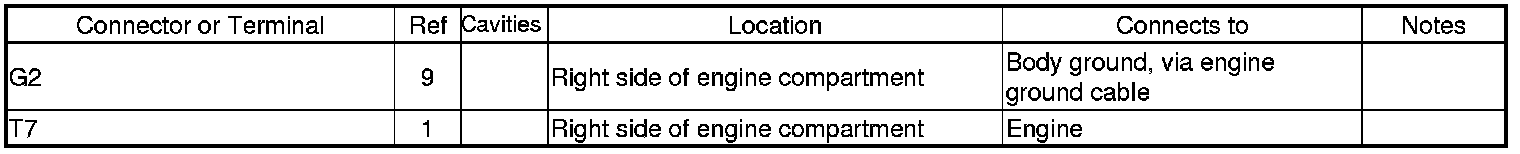

Connector and Harness Locations

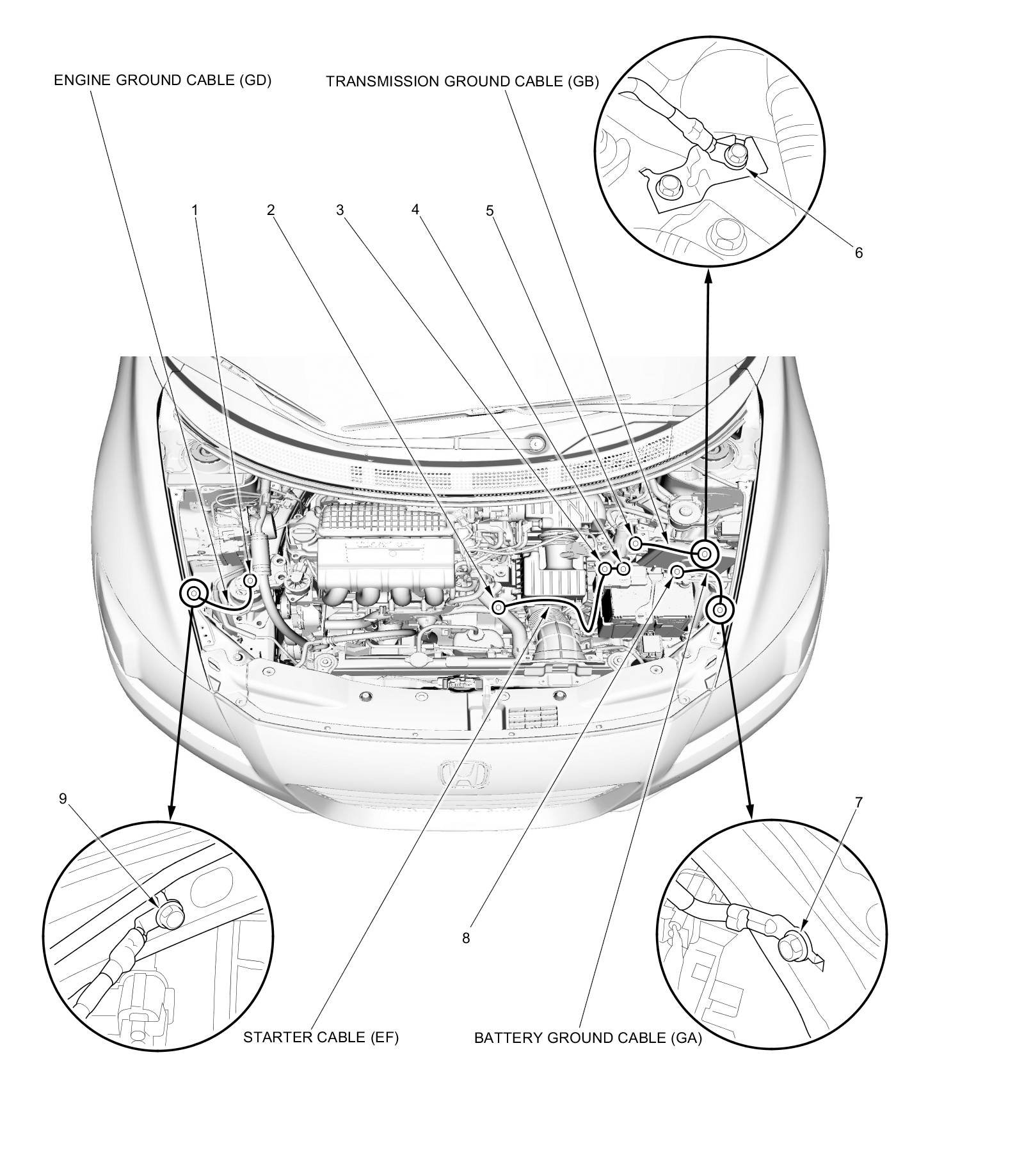

Engine Ground Cable (CVT) (GD)
Engine Ground Cable (M/T) (GD)
